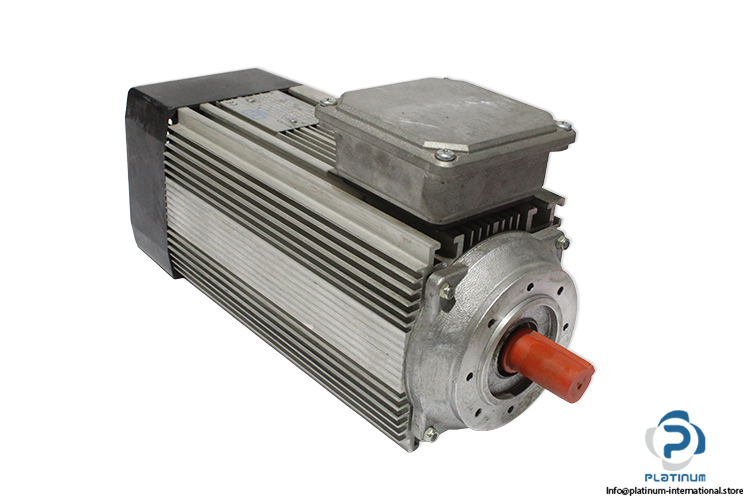

CEG ET63L2-STD 3-PHASE AC Motor

In stock1 unitReady to ship

1 499,99$

AC Motor

CEG ET63L2-STD three-phase AC motor with IEC compliance, IP55 protection, S6 duty cycle, and multi-frequency operation at 50 Hz and 60 Hz.

Manufacturer
CEG
SKU
1090068
Category
Servo Motors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

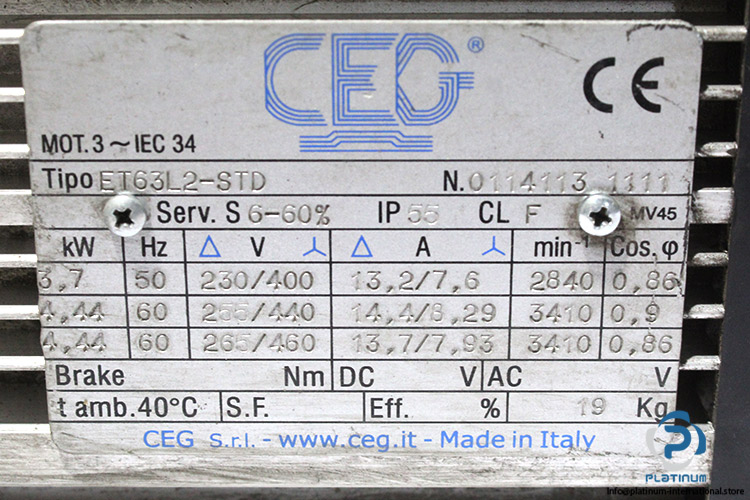

Serial Number0114113 1111
At 50 Hz Rated Power3.7 kW
At 50 Hz Voltage (Δ / Y)230 / 400 V AC “ 3 Phase
At 50 Hz Current (Δ / Y)13.2 / 7.6 A
At 50 Hz Speed2840 min»¹ (rpm)
At 50 Hz Power Factor (cos φ)0.86
At 60 Hz (Option 1) ated Power4.44 kW
At 60 Hz (Option 1) Voltage (Δ / Y)255 / 440 V AC “ 3 Phase
At 60 Hz (Option 1) Current (Δ / Y)14.4 / 8.29 A
At 60 Hz (Option 1) Power Factor (cos φ)0.90
At 60 Hz (Option 2) Rated Power4.44 kW
At 60 Hz (Option 2) Voltage (Δ / Y)265 / 460 V AC “ 3 Phase
At 60 Hz (Option 2) Current (Δ / Y)13.7 / 7.93 A
At 60 Hz (Option 2) Speed3410 min»¹ (rpm)
At 60 Hz (Option 2) Power Factor (cos φ)0.86
Motor Flange Size63 mm
Ambient Temperature40 °C
StandardIEC 34
Duty TypeS6 “ 60%
Ingress ProtectionIP55
Insulation ClassF
ConnectionTerminal Box
ConditionNew
Stock KeyJO-004

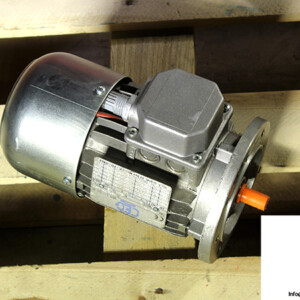

CEG 63-4/FHA Brake Motor
New

CEG

CEG 63-4/FHA Brake Motor

SKU: 1015161

Qty: 24

Available through quotation

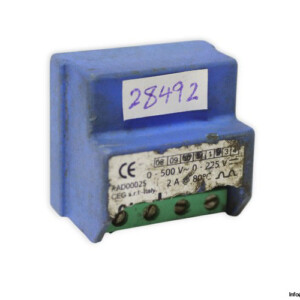

CEG RAD00025 Motor Brake Rectifier
