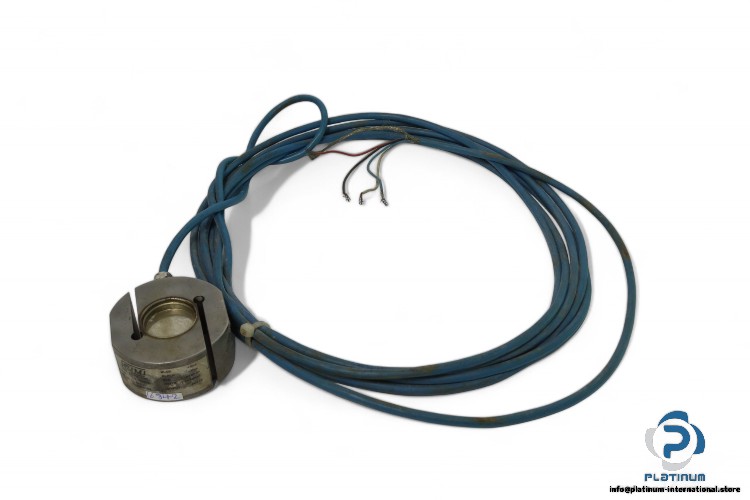

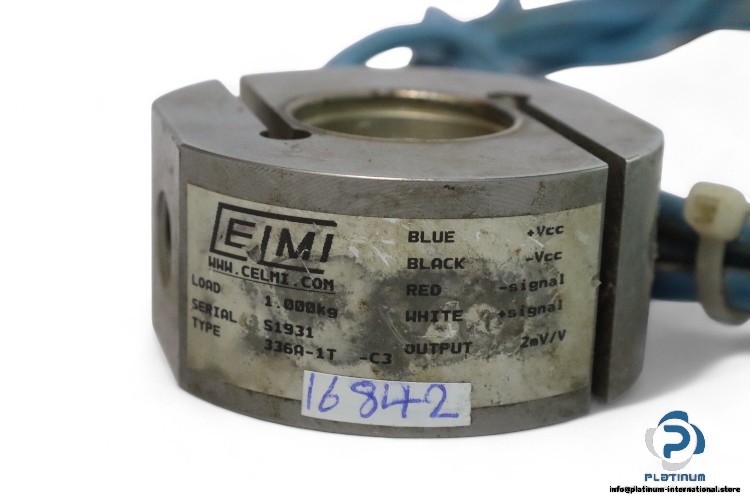

Celmi 336A-1T-C3 Tension AND Compression

Manufacturer: Celmi
Type: TENSION AND COMPRESSION
Model: 336A-1T-C3

Load: 1.000 kg
Breaking Load: >250 Kg
Material: Stainless steel soldered with microplasma.
Nominal Output: 2m V/V
Maximum Supply Voltage: 15 V

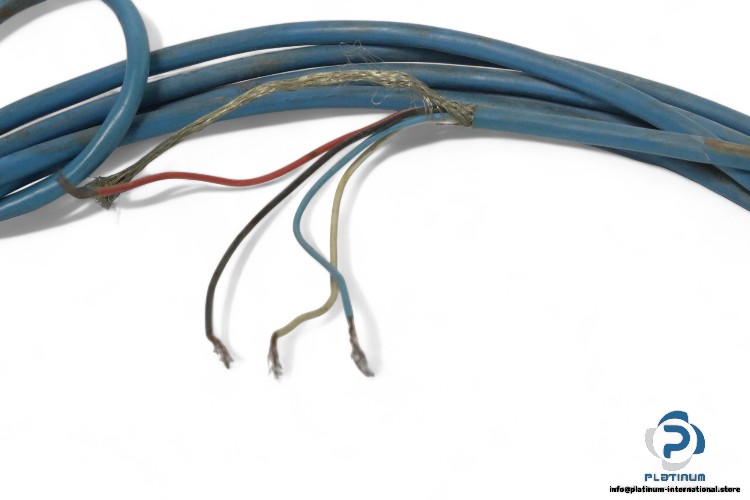

No of wire: 4-wire (blue, black, red, white)
Precision: High precision (equivalent to OIML C3)
Cable Length: 5 m
Input Resistance: 430±10% „¦
Output Resistance:  350±1% „¦
Working Temperature Range: -40+80°C
Housing Protection: IP 66/68
