General Electric 114FCB11F Position Switch

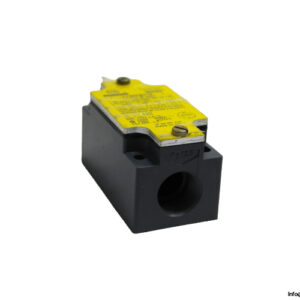

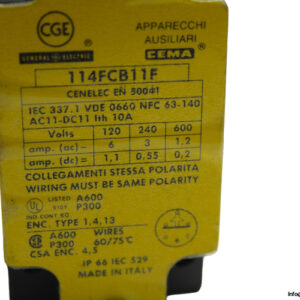

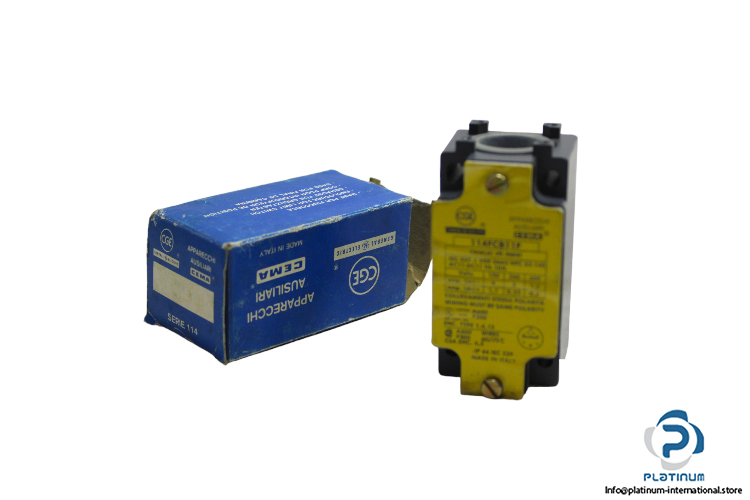

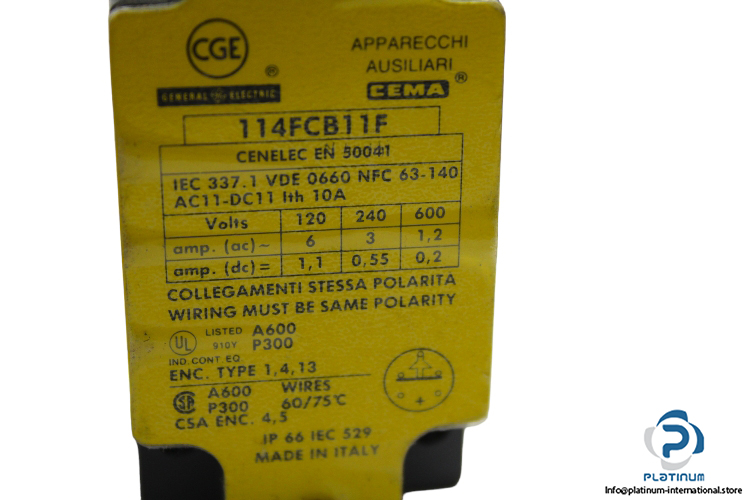

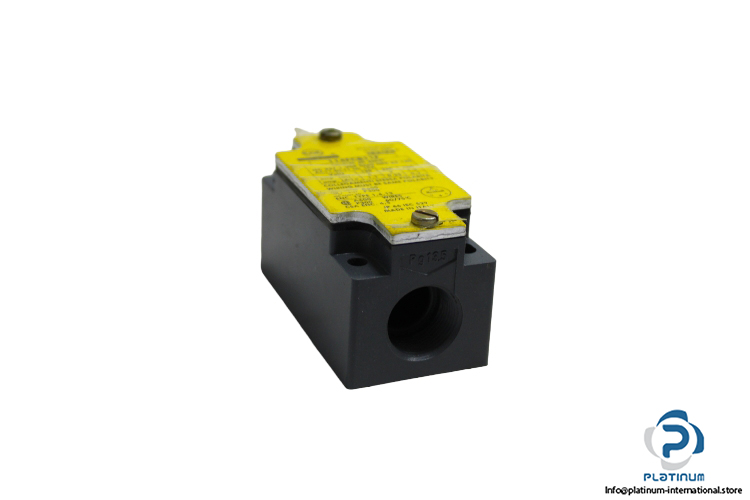

Cema General Electric 114FCB11F Position Switch

The Cema General Electric 114FCB11F Position Switch is a reliable and versatile solution for various industrial and automation applications. With an output configuration of 1 Normally Open + 1 Normally Closed, it ensures flexible integration into systems that require precise position switching. Its robust design, with a protection class of IP66, makes it ideal for harsh environments.

🔧 Technical Specifications:

• Manufacturer: Cema General Electric
• Type: Position Switch
• Model: 114FCB11F
• Output Configuration: 1 Normally Open + 1 Normally Closed
• Switching Voltage: 120, 240, and 600 V AC/DC
• Contact Current Max: 6 A (DC), 3 A (DC), 1.2 A (DC), 1.1 A (AC), 0.59 A (AC), 0.2 A (AC)
• Connection Size: 22 mm
• Protection Class: IP66
• Ambient Operating Temperature Max: 60 / 75°C
• Dimensions: 42 x 41 x 77 mm

Built to withstand environmental challenges, the Cema General Electric 114FCB11F Position Switch is perfect for applications requiring high protection, flexible switching voltage, and long-term reliability.
