Chiaravalli Group R3241309 Right-Angle Gearbox
Right-Angle Precision Bevel Gear Drive
High-precision right-angle bevel gear drive with 1:3 ratio, 24 mm input and output shafts, and 4-way universal mounting. Engineered for efficiency, durability, and smooth operation in industrial automation systems.Chiaravalli R3241309 Right-Angle Precision Bevel Gear Drive

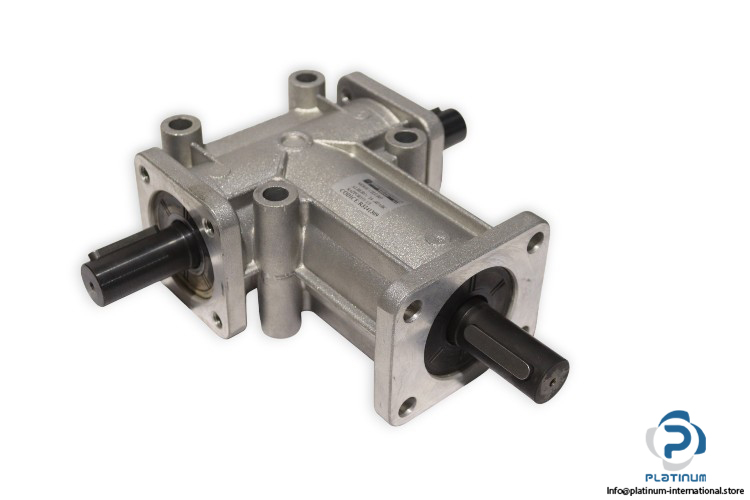

The Chiaravalli R3241309 is a high-performance right-angle bevel gear drive engineered for precise torque transmission and smooth power transfer in compact mechanical systems. Designed by Chiaravalli Group S.p.A., this model offers exceptional efficiency, quiet operation, and long service life, making it ideal for demanding automation, machinery, and motion control applications.

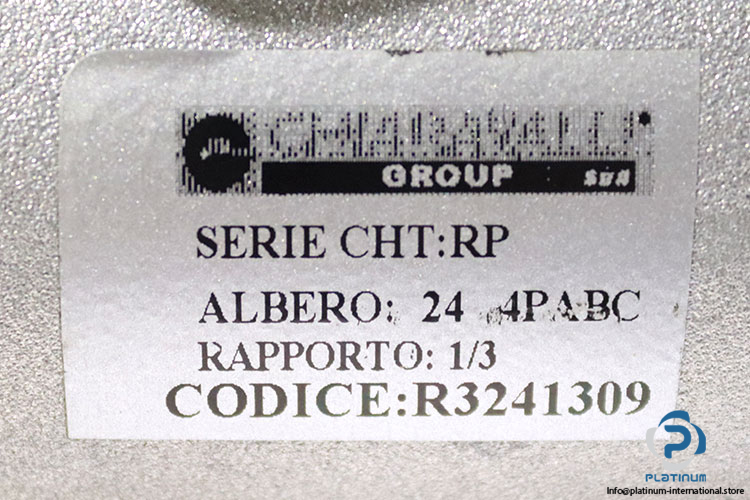

Manufacturer: Chiaravalli Group S.p.A.
Type: Right-Angle Precision Bevel Gear Drive
Model: R3241309
Series: CHT:RP
This precision gear drive features a right-angle configuration that saves installation space while maintaining high power density. The hardened bevel gears ensure superior strength and low backlash performance, providing excellent reliability even under continuous operation. The 4PABC configuration allows flexible mounting in various orientations, making it suitable for conveyor systems, robotic mechanisms, packaging lines, and precision equipment.
Engineered with Chiaravalli™s proven expertise, the R3241309 ensures low maintenance requirements and high mechanical efficiency. Its robust construction and precise alignment make it a perfect choice for engineers seeking performance, durability, and smooth rotational accuracy in one compact unit.
| Shaft Configuration | 4PABC (multi-position / universal 4-way shaft layout) |
| Input Shaft Diameter | 24 mm |
| Output Shaft Diameter | 24 mm |
| Ratio i | 1:3 |
