Cleveland Controls RSS-495-342 / 79527-7-0507 Pressure Switch
Used
In stock1 unitReady to ship
Air Pressure Switch
A compact and reliable air pressure switch with fixed low-pressure set points, designed for accurate monitoring and control in HVAC and industrial air-handling applications.AirassemblyClevelandControlControlsDevicesHvacIndustriallowMicroPressureRSS-495RSS-495-342SeriesSwitch
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

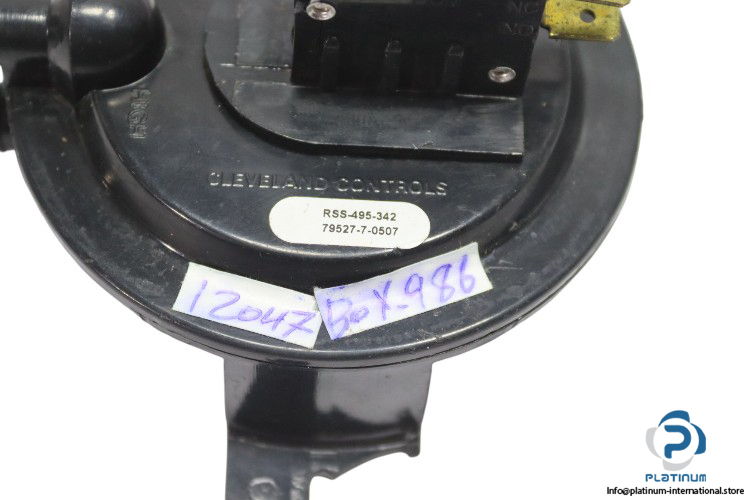

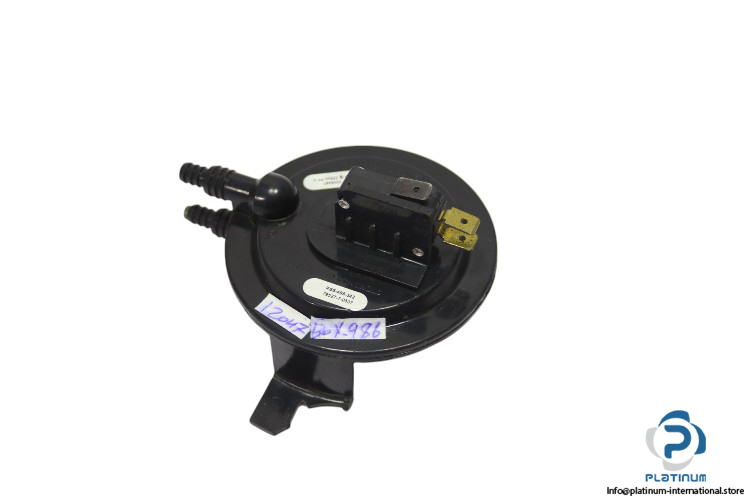

Cleveland Controls RSS-495-342 Air Pressure Switch
A precision air pressure switch designed for reliable pressure monitoring and control in HVAC, combustion air, and industrial air-handling applications. This unit provides fixed low-pressure set points for accurate and stable switching performance. Manufacturer: Cleveland Controls
Type: Air Pressure Switch
Series: RSS-495
Model: RSS-495-342
Part No.: 79527-7-0507
Micro Switch Technical Information
| Pressure Set Points | Fixed between 0.20 in. w.c. and 1.0 in. w.c. |
| DAI Diameter | 3.25 in |
| Overall Width | 2.13 in |
| Connection Size | 7 mm |

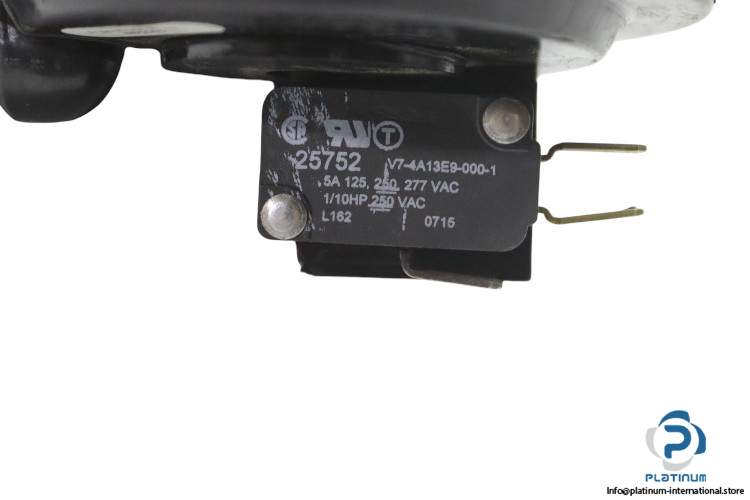

| Attachment | V7-4A13E9-000-1 Micro Switch |
| Part No. | 25752 |
| Code | L162 / 0715 |
| Circuitry | SPDT, SPNO, SPNC |
| Operating Force | 0.25 N to 3.9 N (15 g to 397 g) |
| Termination | Quick connect 4.75 mm x 0.51 mm (0.187 in x 0.02 in), Quick connect 6.35 mm x 0.81 mm (0.25 in x 0.032 in), PCB termination |
| Actuators | Pin plunger, integral lever options |
| Agency Certifications | CSA, ENEC, UL |
| Compliance | RoHS compliant |
| Operating Temperature | -40 °C to +85 °C |
