Coel FK56B4 Brake Motor

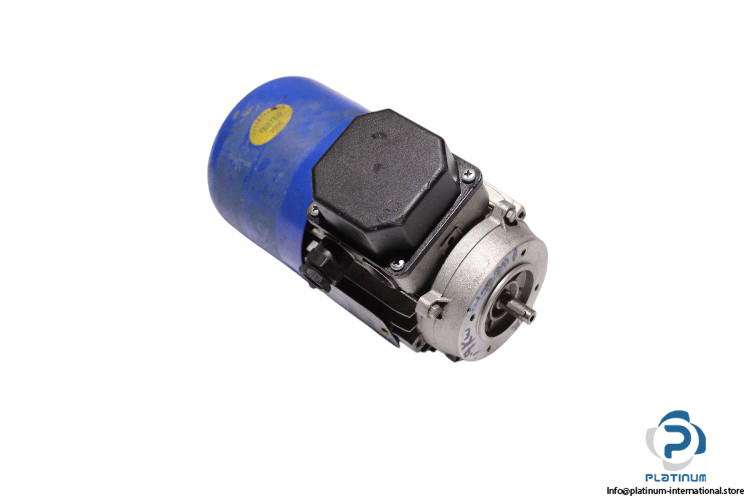

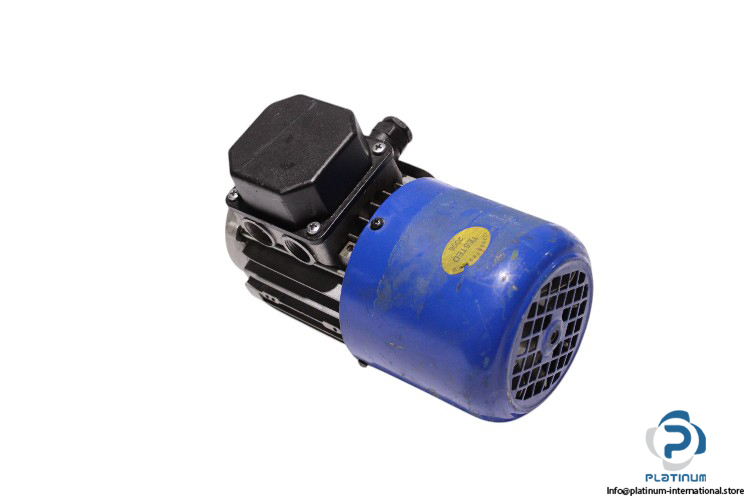

COEL FK56B4 BRAKE MOTOR

The COEL FK56B4 Brake Motor is designed for reliable and efficient operation in industrial applications. With a motor power of 0.09 kW and a rated speed of 1320 RPM, this motor provides precise control while offering long-lasting durability. It is equipped with both AC and DC brake voltages, making it versatile for various applications.

Manufacturer: Coel

Type: Brake Motor

Model: FK56B4

Part No.: 310506

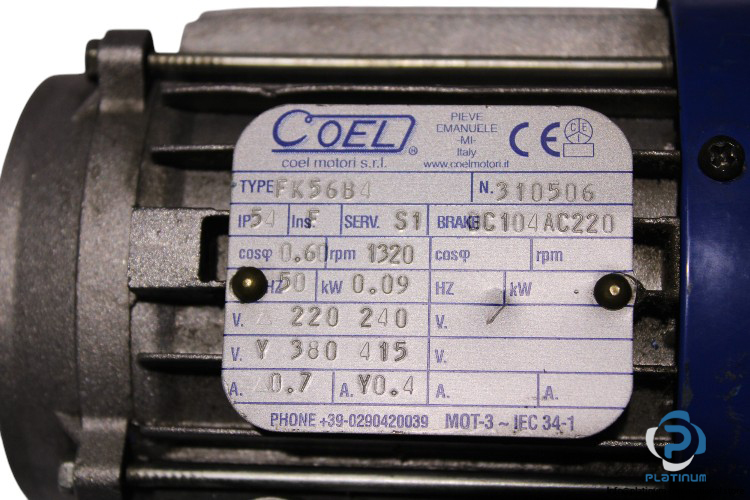

Technical Specifications

• Motor Power [kW]: 0.09
• Rated Voltage [V] (Delta): 220-240
• Rated Voltage [V] (Star): 380-415
• Nominal Current [A]: 0.7 / 0.4
• Motor Frequency [Hz]: 50
• Rated Speed [RPM]: 1320
• Cos Phi: 0.60
• Thermal Class: F
• Duty: S1
• Protection Class [IP]: 54
• Brake Voltage [V] AC / DC: 220 AC / 104 DC
