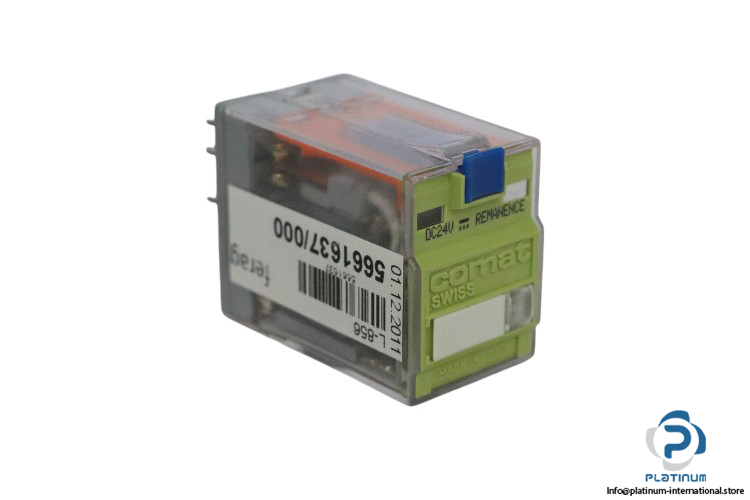

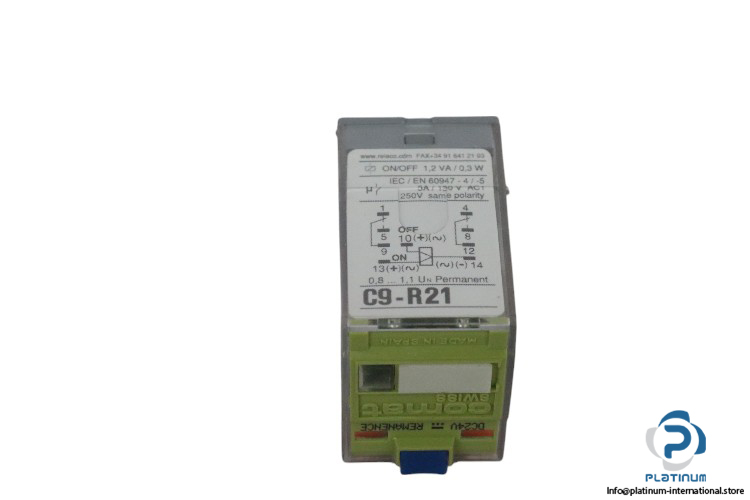

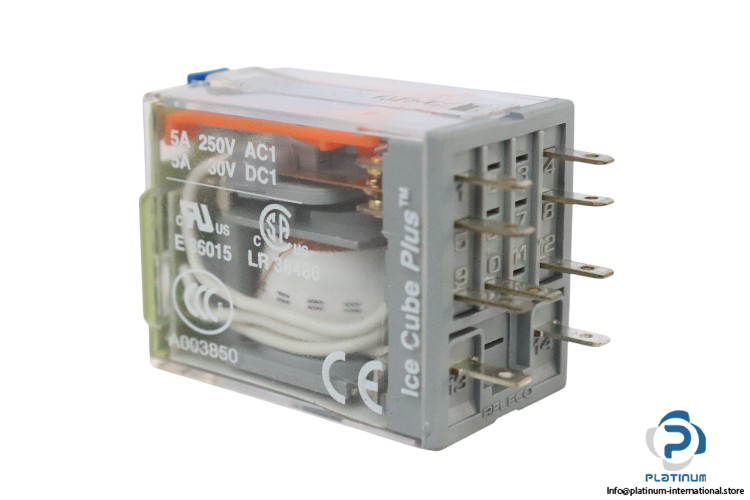

Comat C9-R21 Industrial Relay

Product Overview

Manufacturer: Comat

Type: Industrial Relay

Model: C9-R21

Part No.: L-856 / 5661637/000

The Comat C9-R21 Industrial Relay is a robust and reliable relay designed for use in industrial applications. It operates across a wide voltage range from 0.8 to 1.1 V and offers a compact form factor of 28x21x37.5 mm. The relay has a minimum contact load of 10 mA at 10 V and can handle a maximum contact load of 5 A at 120 V AC or 5 A at 30 V DC. With an ON pulse power of 1.2 VA (AC) or 1.2 W (DC), and an OFF pulse power of 0.2 VA (AC) or 0.3 W (DC), the relay offers optimal energy efficiency for controlling industrial systems.

Key Specifications:

• Operating Voltage Range: 0.8 to 1.1 V
• Minimum Contact Load: 10 mA / 10 V
• Maximum Contact Load AC-1: 5 A / 120 V AC
• Maximum Contact Load DC-1: 5 A / 30 V DC
• ON Pulse Power: 1.2 VA (AC), 1.2 W (DC)
• OFF Pulse Power: 0.2 VA (AC), 0.3 W (DC)
• Pollution Degree: 3
• Ambient Temperature Operation: -40 to 60 °C
• Dimensions: 28x21x37.5 mm

With its high reliability and versatility, the Comat C9-R21 Industrial Relay is a great choice for controlling electrical circuits in harsh industrial environments.
