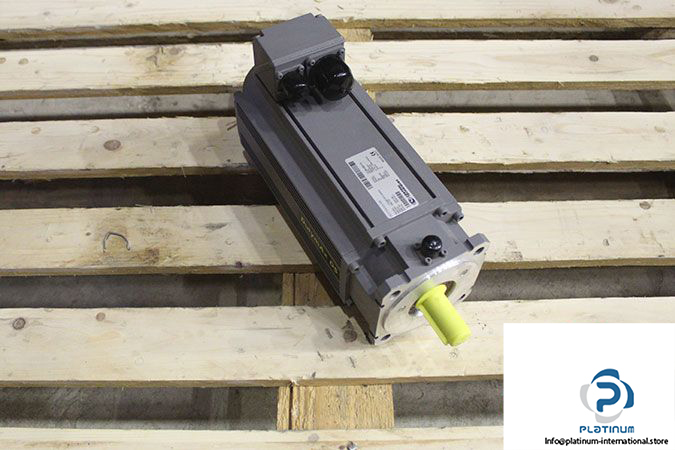

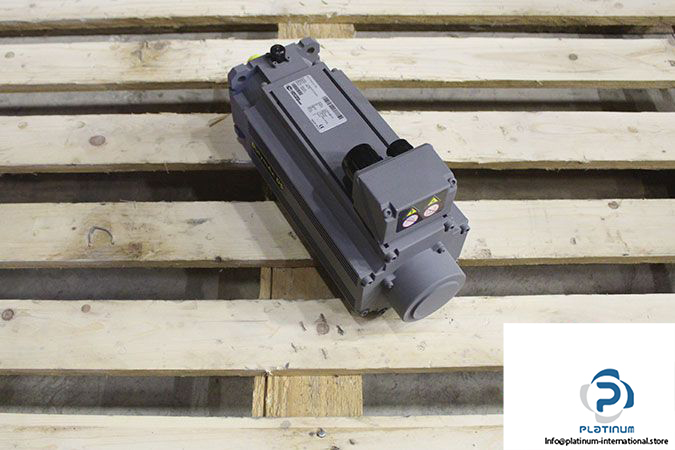

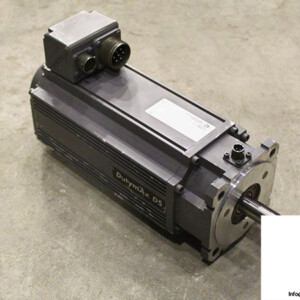

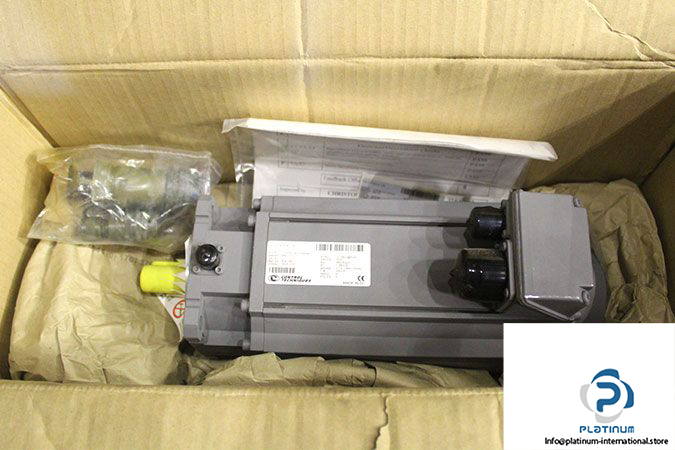

Control Techniques 115DSC301CAAAA Servo Motor
New
In stock1 unitReady to ship
2 222,22$
Used
Available on request 840,00$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

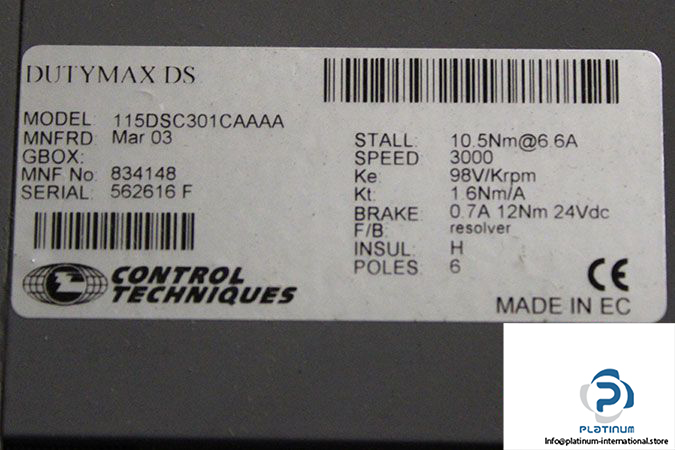

Manufacturer: Control Techniques, Dutymax DS
Type: Servo Motors
Model: 115 DSC301CAAAA
MNF No.: 834148
Serial: 562616 F
Frame Size: 115
Stall Current [A]: 6.6
Stall Torque [Nm]: 10.5
Rated Speed [rpm]: 3000
Constant Voltage [Vrms/krpm]: 98
Constant Torque [Nm/Arms]: 1.6
Number of Poles: 6
Brake Voltage [VDC]: 24
Brake Current [A]: 12
Brake Torque [Nm]: 0.7
Insulation Class: H
Weight [kg]: 10.445
