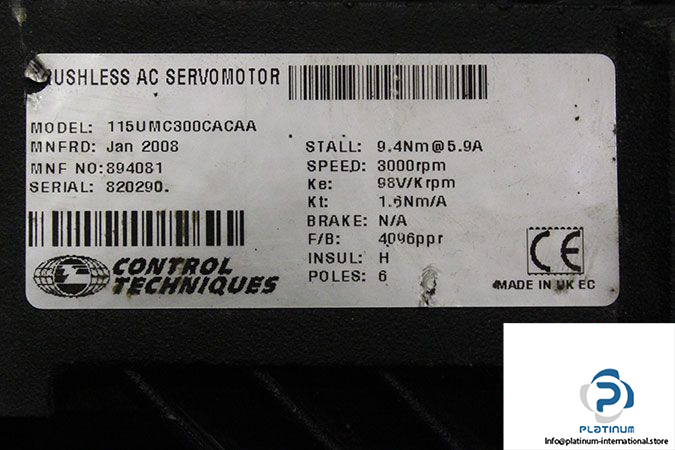

Control Techniques 115UMC300CACAA Brushless AC Servomotor

Manufacturer: Control Techniques

Type: Brushless AC Servo Motors

Model: 115 UMC300CACAA

MNF No.: 894081

Serial: 820290

Frame Size: 115

Motor Type: UM – For Unidrive

Stator Length: C

Stall Current [A]: 5.9

Stall Torque [Nm]: 9.4

Rated Speed [rpm]: 3000

Constant Voltage [Vrms/krpm]: 98

Constant Torque [Nm/Arms]: 1.6

Number of Poles: 6

Brake: N/A

Insulation Class: H
