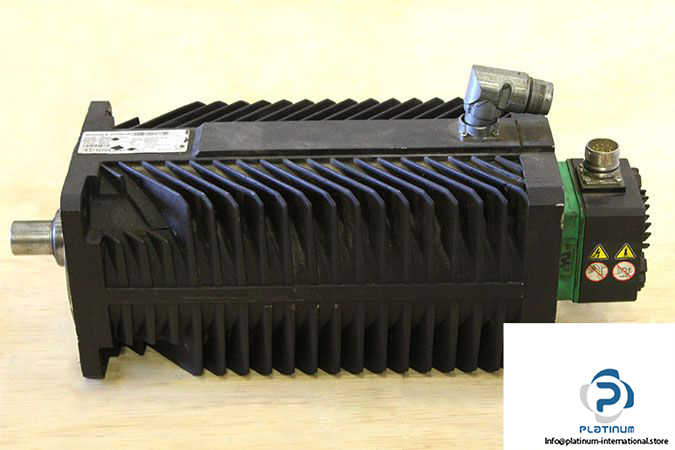

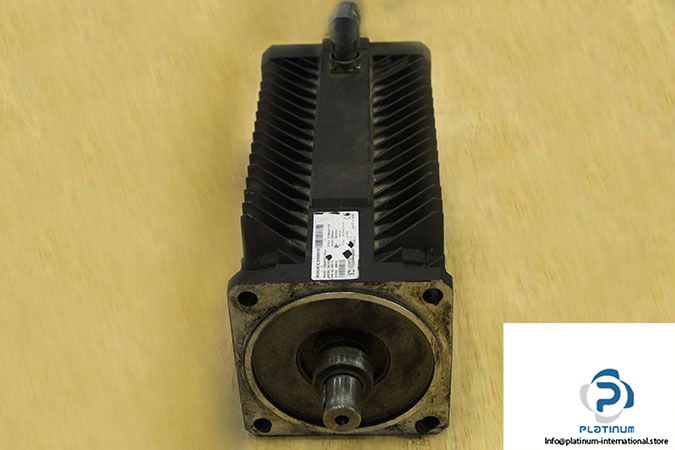

Control Techniques 142UMD301CAAAA Brushless AC Servo Motor

Manufacturer: CONTROL TECHNIQUES / EMERSON

Type: BRUSHLESS AC SERVO MOTOR

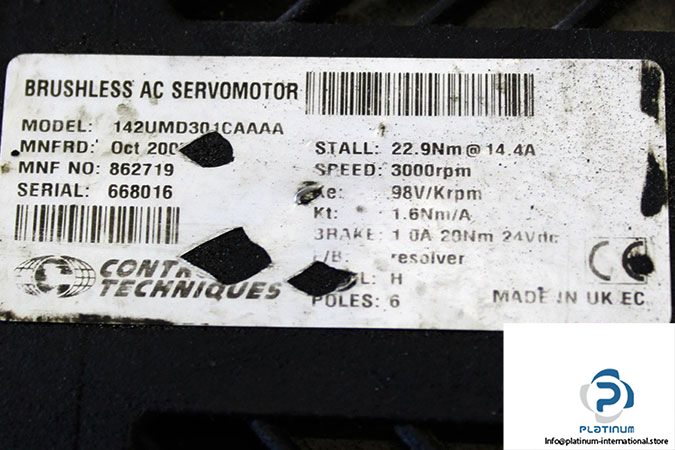

Model: 142UMD301CAAAA

MRN: 668016

Frame Size: 142

Motor Type: For Unidrive

Stall Current: 14.4 Arms

Voltage Constant: 98 V/Krpm

Rated Speed: 3000 Revolution Per Minute (rpm)

Stall Torque: 22.9 Nm

Constant Torque: 1.6 Nm/A

Brake Voltage: 24 VDC

Brake Current: 1 A

Brake Torque: 20 Nm

Poles: 6

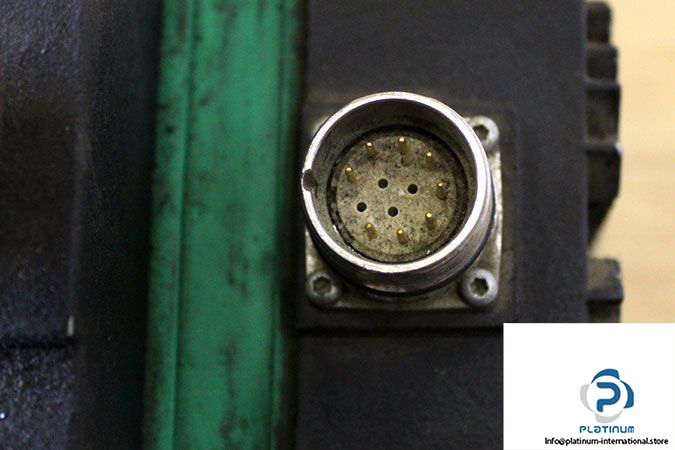

Resolver: F/B

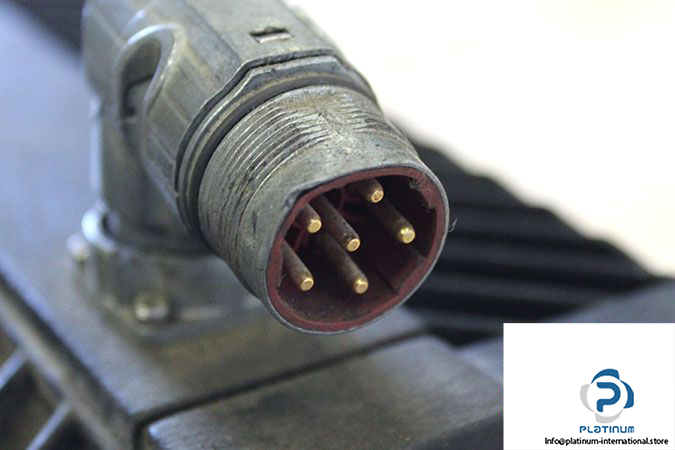

Connection Type: Connector (Std)

Weight: 19.00 kg
