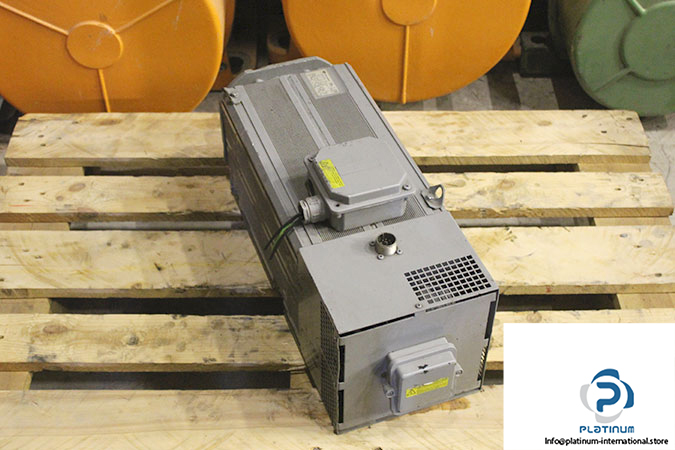

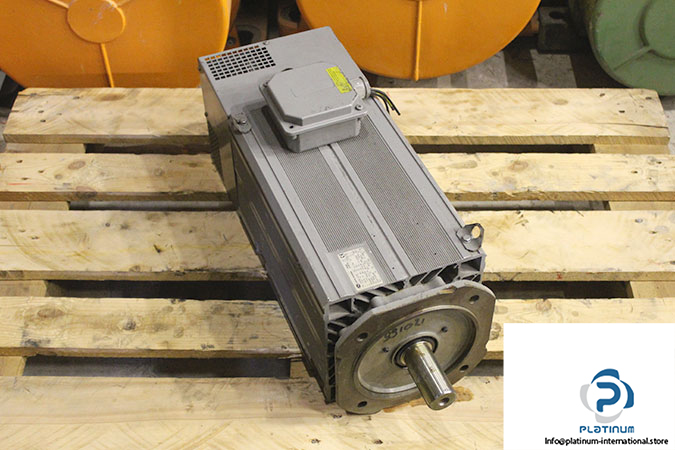

CONTROL TECHNIQUES QCAVM112XE 3-PHASE AC MOTOR

The Control Techniques QCAVM112XE is a robust and efficient 3-phase AC motor designed for continuous duty operations (S1). This high-performance unit delivers 11.0 kW of power with precision torque and reliable speed control, making it ideal for demanding industrial environments. Included are the Control Techniques R2E190 Fan and TS5208N68 Encoder for enhanced thermal management and accurate feedback.

Manufacturer: Control Techniques
Type: 3-Phase AC Motor
Model: QCAVM112XE
Ref mo: 99 D 408

Motor Technical Information

• Rated Voltage [V]: 220-380 Delta-Star
• Rated Current [A]: 43.2-25.0
• Stall Current [A]: 23.4-13.5
• Rated Power [kW]: 11.0
• Rated Speed [rpm]: 1500
• Rated Torque [Nm]: 70.0
• Frequency [Hz]: 50
• Slip Speed [rpm]: 60
• Max. Speed [rpm]: 7500
• Induction [mH]: 9.6
• Resistance [„¦]: 0.76
• Duty: S1
• Insulation Class: F
• Mounting Position [IM]: B3/B5
• Protection Class [IP]: 54

Attachment: Cooling Fan

Manufacturer: Control Techniques
Type: Fan
Model: R2E190
Phase: 1
Rated Voltage [V]: 230
Rated Current [A]: 0.36
Frequency [Hz]: 50/60

Attachment: Encoder

Manufacturer: Control Techniques
Type: Encoder
Model: TS5208N68
Part Nr.: 1024 ppr LD
Supply Voltage [V]: 5
Rated Voltage [Vdc]: 5
