Festo 30475 Double Solenoid Valve 119807
Used
In stock1 unitReady to ship
DOUBLE SOLENOID VALVE
FESTO JMVH-5-1/8-B 5/2 bistable solenoid valve with MSV-3 coil, designed for precise pneumatic control and high flow performance up to 1000 l/min.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

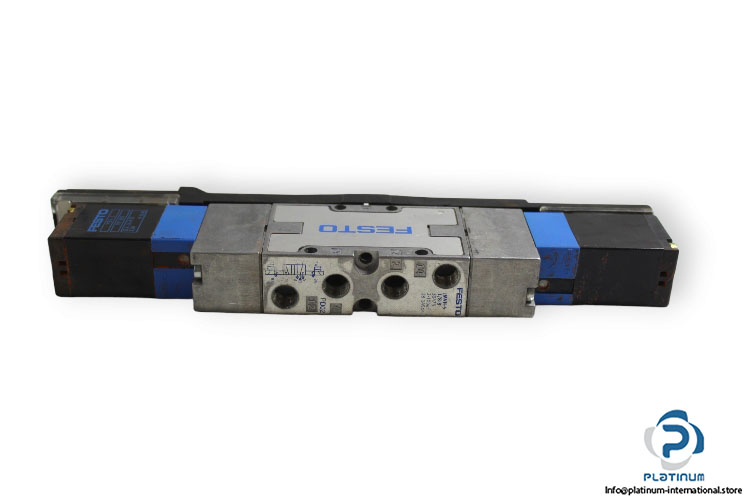

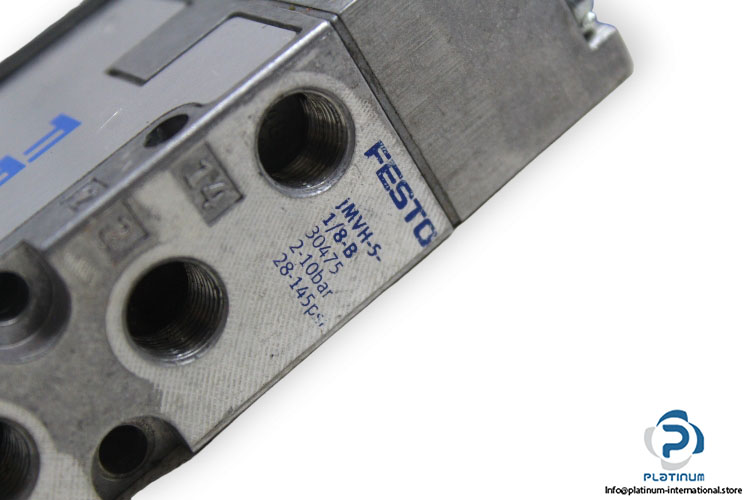

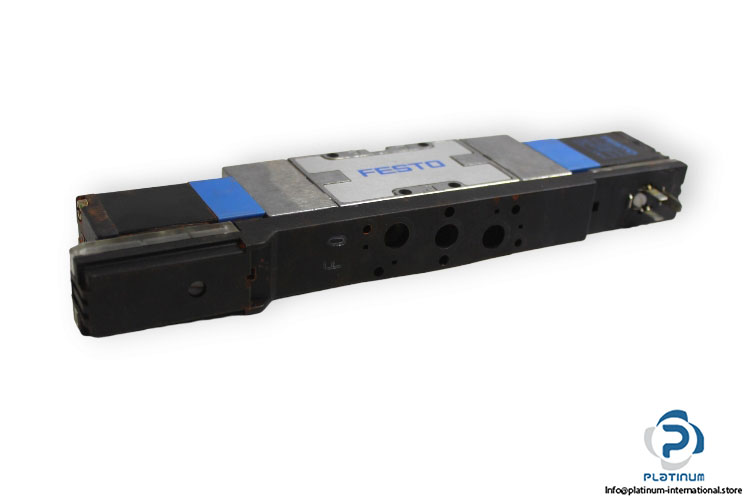

FESTO JMVH-5-1/8-B DOUBLE SOLENOID VALVE WITH SOLENOID COIL
The FESTO JMVH-5-1/8-B is a high-performance 5/2 bistable double solenoid valve designed for precise pneumatic control. Engineered with a piston gate valve design and robust die-cast aluminium housing, this valve supports air-operated applications in demanding environments. Comes equipped with the FESTO MSV-3 solenoid coil for reliable electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: JMVH-5-1/8-B
Part No.: 30475
Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2 bistable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 to 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 to 50 °C |

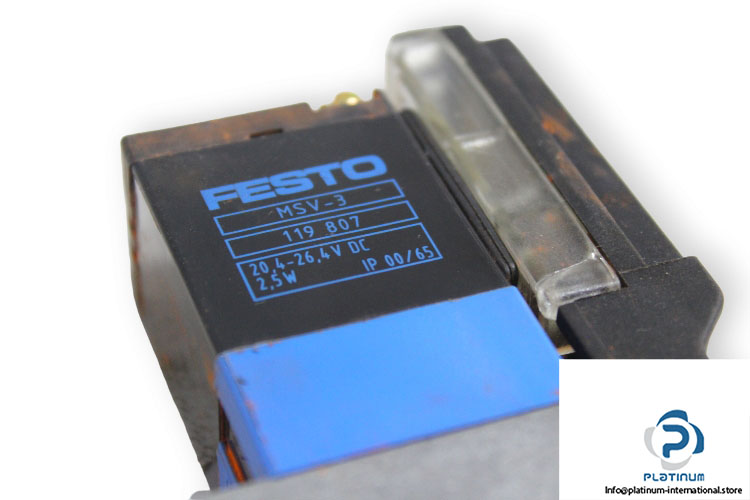

| Solenoid Coil Attachment | FESTO MSV-3 |
| Part No. | 119807 |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
