Festo 161079 Double Solenoid Valve

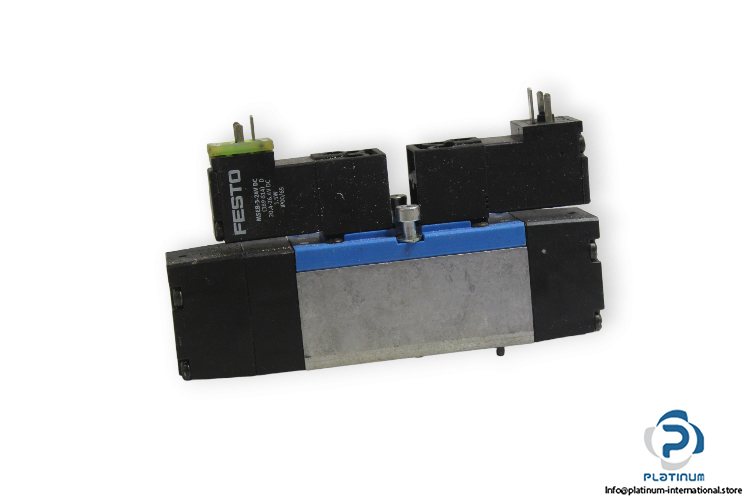

FESTO MN2H-5/3B-D-01 DOUBLE SOLENOID VALVE WITH SOLENOID COIL

The FESTO MN2H-5/3B-D-01 is a high-performance double solenoid valve designed for pneumatic automation. Featuring a piston slide design, this 5/3 pressurized function valve ensures reliable air control with fast switching capabilities. The unit comes with a FESTO MSEB-3-24VDC solenoid coil, delivering efficient and safe operation across varied environments.

Manufacturer: FESTO
Type: Double Solenoid Valve

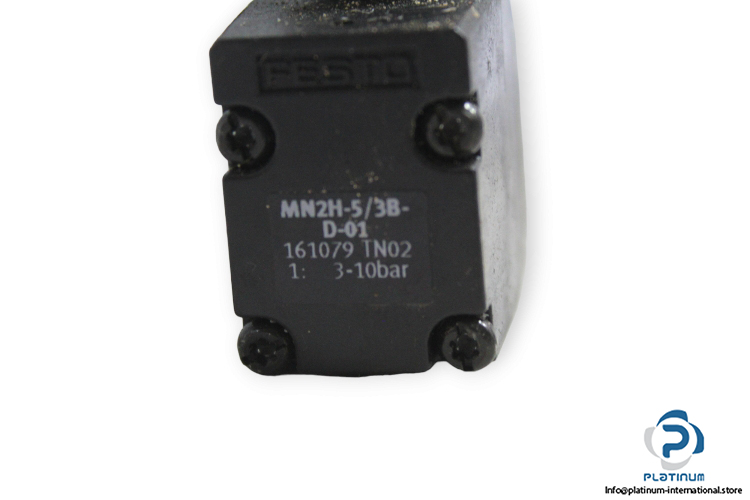

Model: MN2H-5/3B-D-01
Part No.: 161079

Valve Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 5/3 pressurized
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Nominal Flow Rate: 1000 l/min

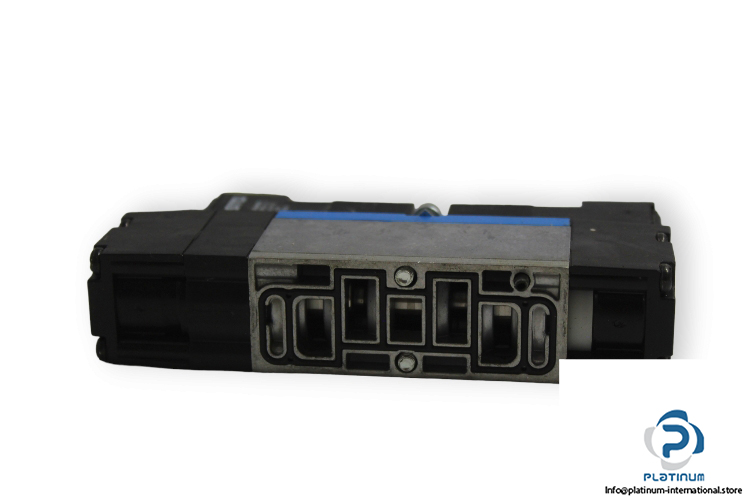

• Pneumatic Connection: Connection plate size 26 mm
• Material: Aluminum die cast
• Ambient Temperature: -10 / 50 °C

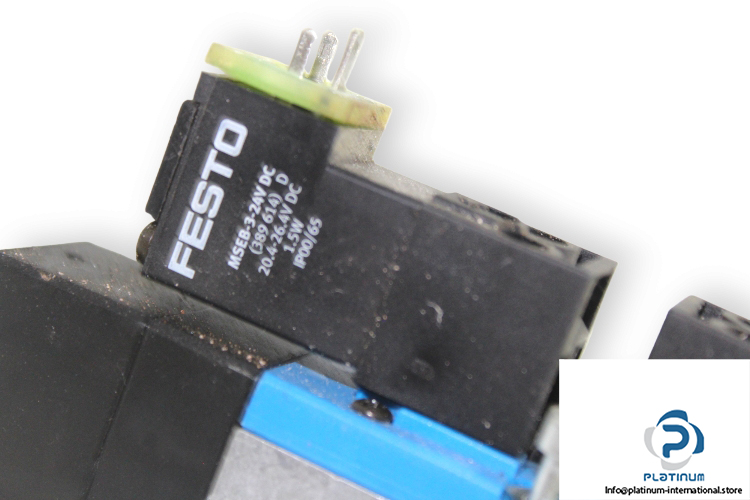

Attachment: FESTO 389614 Solenoid Coil

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24VDC
Part No.: 389614

Solenoid Coil Technical Information

• Supply Voltage: 20.4 … 26.4 V DC
• Power Consumption: 1.5 W
• Protection Class: IP00 / IP65
