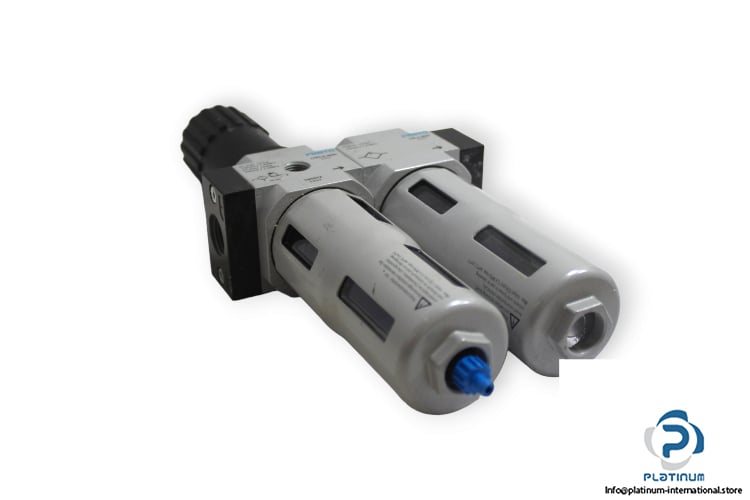

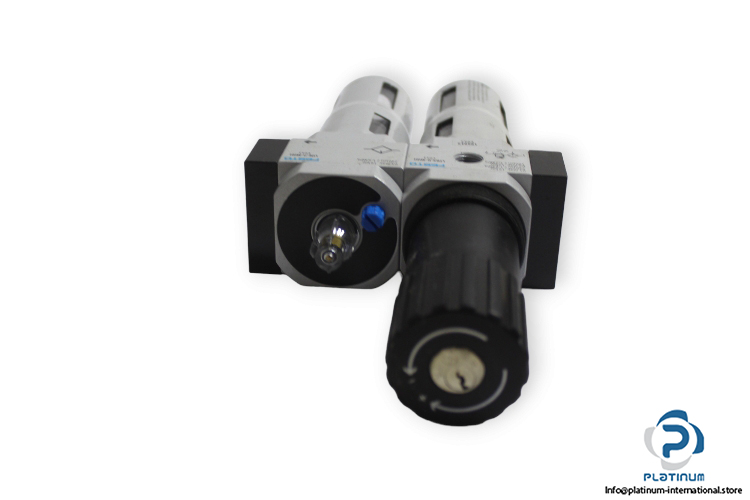

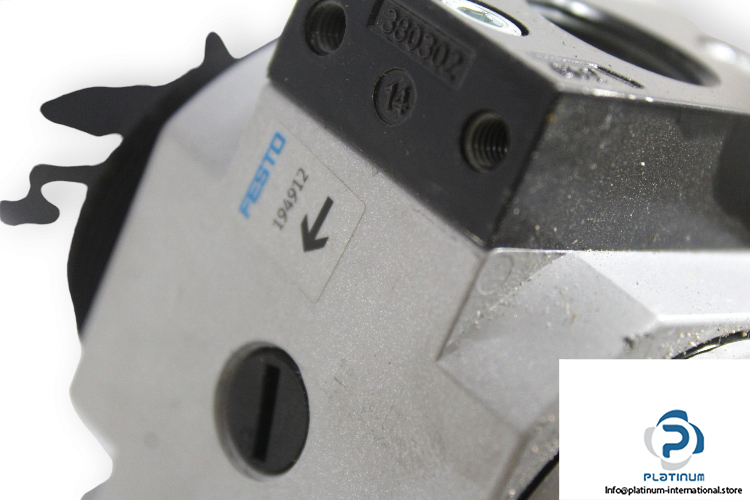

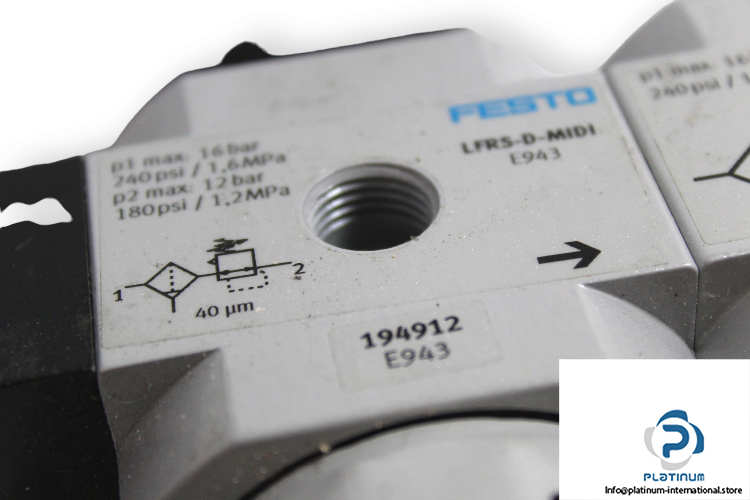

Festo 194912 AIR Preparation Unit

Manufacturer: FESTO

Type: Air preparation unit

Model: FRCS-1/2-D-MIDI

Part No.: 194912

Size: Midi

Actuator lock: Rotary knob with integrated lock

Mounting position: Vertical +/- 5°

Condensate drain: Manually rotating

Max. condensate volume: 43 ml

Grade of filtration: 40 µm

Bowl guard: Metal bowl guard

Operating pressure: 1 bar … 16 bar

Pressure regulation range: 0.5 bar … 12 bar

Max. pressure hysteresis: 0.2 bar

Standard nominal flow rate: 2600 l/min

Operating medium: Compressed air

Port size: G1/2

Ambient temperature: -10 °C … 60 °C

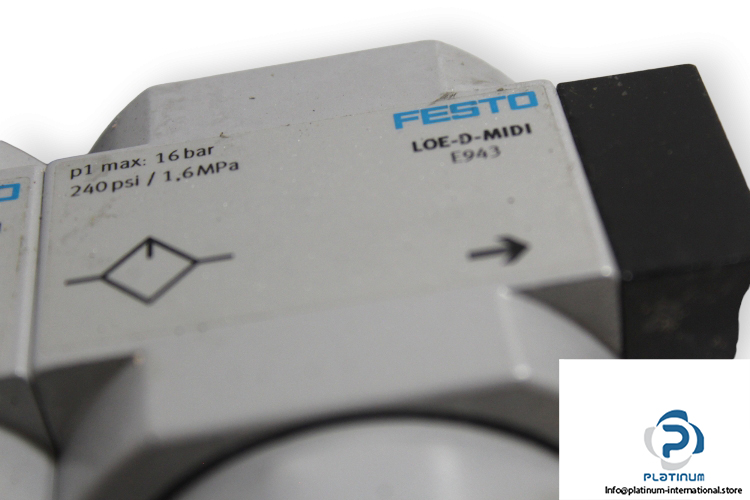

Attachment: FESTO 192576 AIR PREPARATION UNIT

Manufacturer: FESTO

Type: Air preparation unit

Model: LOE-D-MIDI

Part No.: 192576
