Festo 15342 Single Solenoid Valve
New
In stock1 unitReady to ship
SINGLE SOLENOID VALVE
FESTO MVH-5-3/8-S-B single solenoid valve with MSV-3 coil offers a monostable 5/2-way function, 2000 l/min flow rate, and rugged aluminum construction for pneumatic applications.5/2-WayActuatedAirAluminiumCastcoilconnectionDieElectricallyFestoG3/8IndustrialMSV-3MVH-5-3/8-S-BPneumaticSinglesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

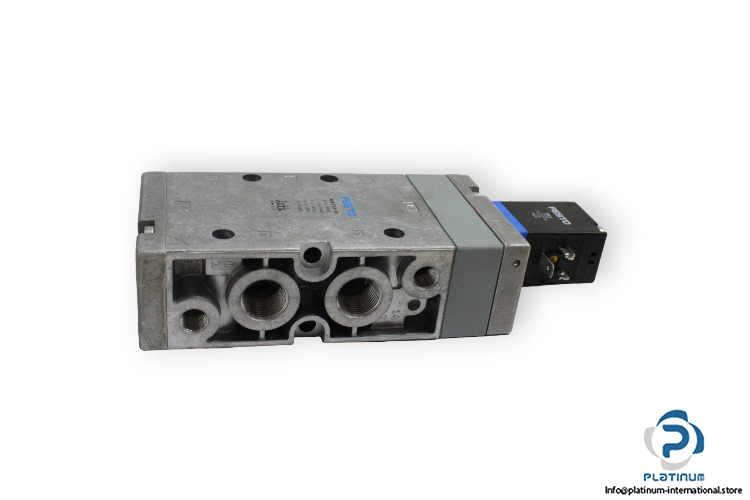

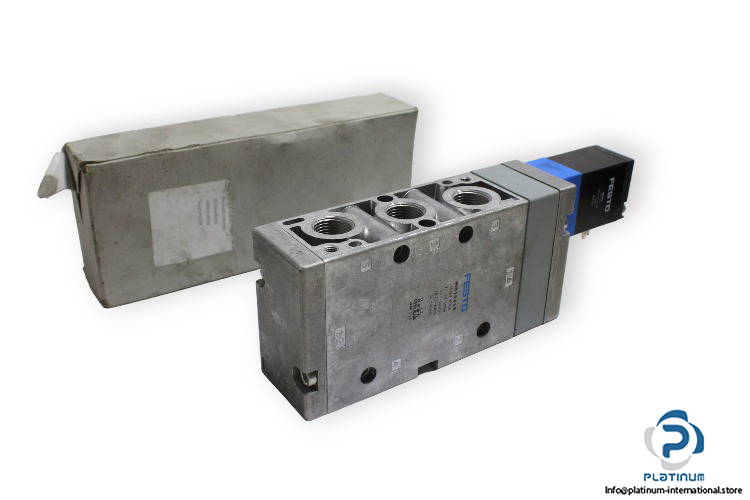

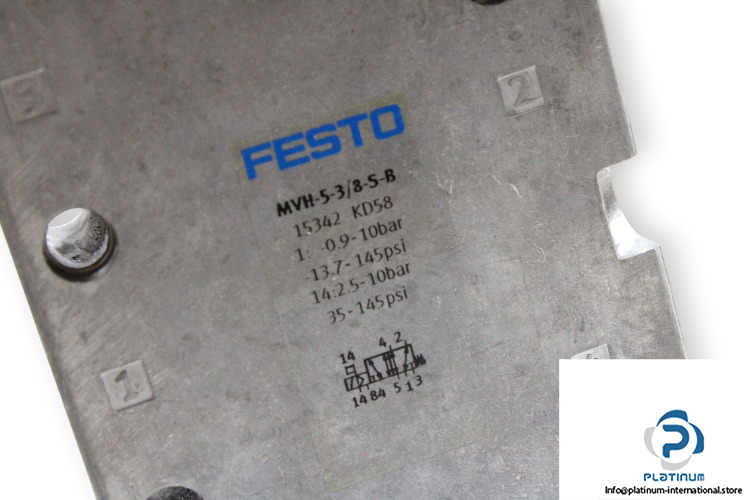

FESTO MVH-5-3/8-S-B SINGLE SOLENOID VALVE WITH MSV-3 COIL
The FESTO MVH-5-3/8-S-B is a robust and high-performance single solenoid valve designed for precise control of pneumatic systems. With its monostable 5/2-way function, it provides reliable switching in industrial environments. This valve comes equipped with the FESTO MSV-3 solenoid coil for efficient electrical actuation.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MVH-5-3/8-S-B
Part No.: 15342
Solenoid Coil Specifications
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 to 10 bar |
| Nominal Flow Rate | 2000 l/min |
| Pneumatic Connection | G3/8 |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 to 50 °C |
| Attachment | FESTO MSV-3 SOLENOID COIL |
| Part No. | 119807 |
| Supply Voltage | 20.4 to 26.4 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
