Festo 165077 On/Off Valve
New
In stock1 unitReady to ship
ON/OFF VALVE
FESTO HEL-1/4-D-MINI pneumatic ON/OFF valve with monostable 2/2-way function, ideal for compact industrial air systems.2/2-WayAirconnectionControlFestoG1/4GateHEL-1/4-D-MINIIndustrialMiniOn/OffPistonPneumaticshut-offValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

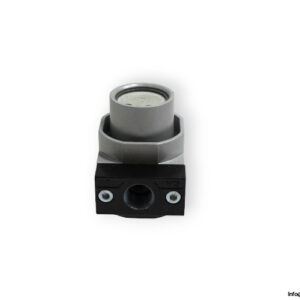

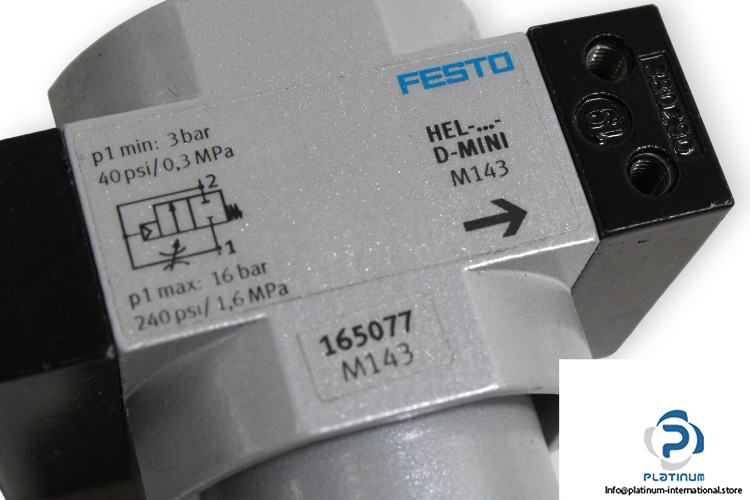

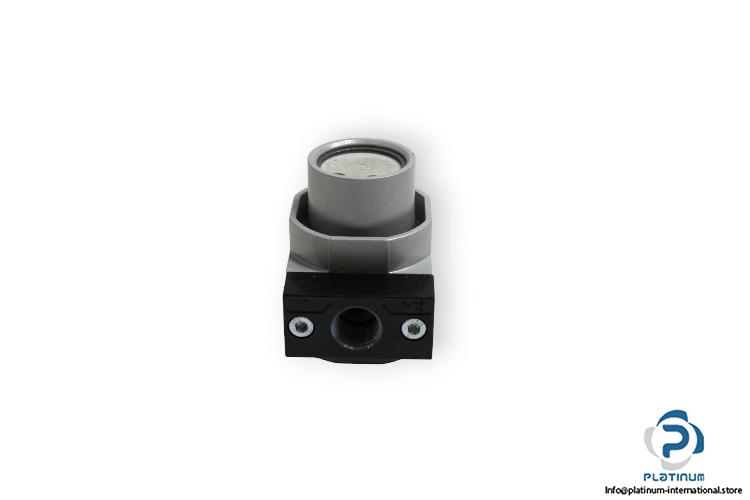

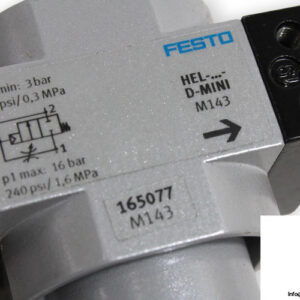

FESTO HEL-1/4-D-MINI ON/OFF VALVE
The FESTO HEL-1/4-D-MINI is a compact, high-performance 2/2-way ON/OFF valve designed for reliable pneumatic shut-off operations. With a monostable piston gate design and die-cast aluminium body, it is ideal for demanding industrial air control applications.
Manufacturer: FESTO
Type: ON/OFF Valve
Model: HEL-1/4-D-MINI
Part No.: 165077
| Fluid | Air |
| Size | MINI |
| Design | Piston gate valve |
| Function | 2/2-way, closed, monostable |
| Type of Actuation | Pneumatically |
| Operating Pressure | 3 / 16 bar |
| Nominal Flow Rate | 1500 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-cast aluminium |
| Ambient Temperature | -10 / 60 °C |
