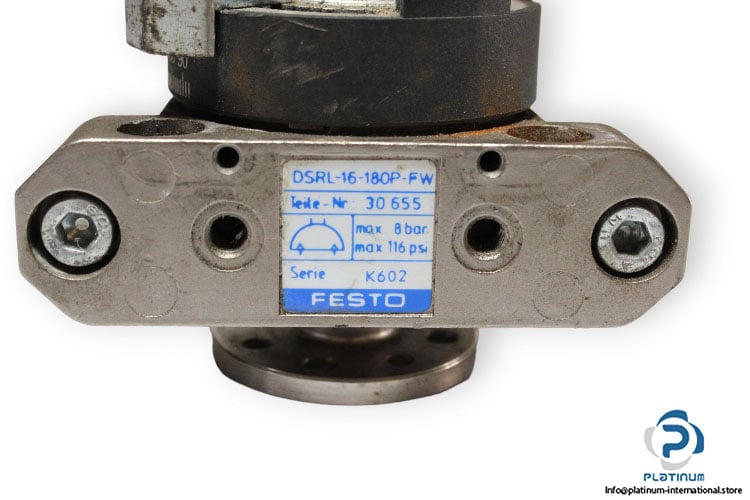

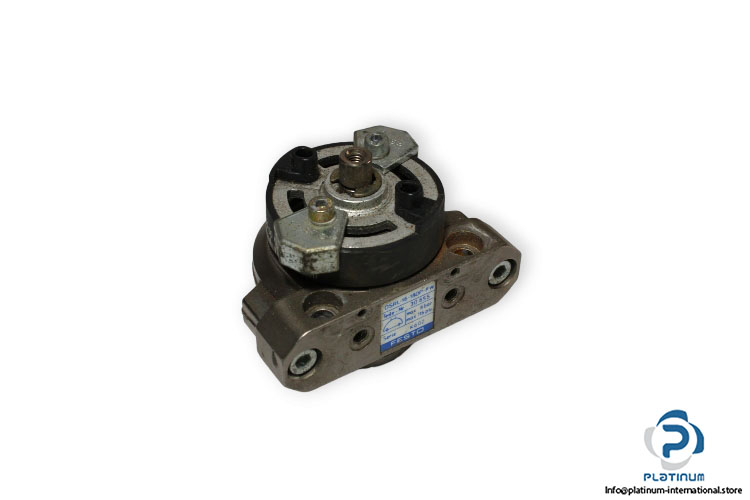

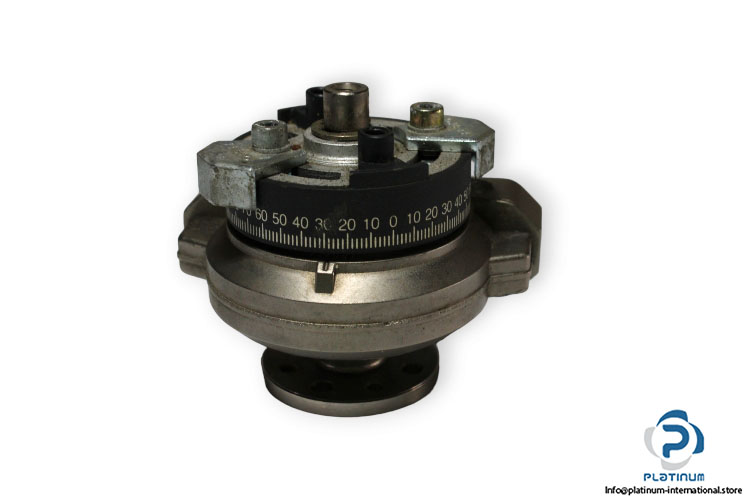

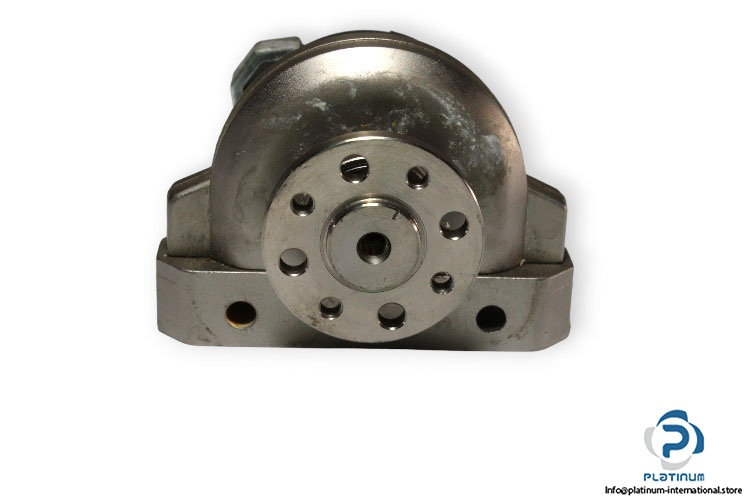

Festo 30655 Quarter Turn Actuator

Manufacturer: FESTO

Type: Quarter turn actuator

Model: DSRL-16-180-P-FW

Part No.: 30655



Size: 16

Cushioning angle: 2.1 deg

Adjustment range of swivel angle: 0 deg … 180 deg

Swivel angle: 0 deg … 180 deg

Cushioning: Elastic cushioning rings/pads at both ends

Mounting position: Any

Mode of operation: Double-acting

Operating pressure: 2 bar … 8 bar

Max. swivel frequency at 6 bar: 3 Hz

Operating medium: Compressed air

Ambient temperature: -10 °C … 60 °C

Theoretical torque at 6 bar: 2 Nm

Pneumatic connection: M5
