Festo 162917 Double Solenoid Valve
Used
In stock1 unitReady to ship
DOUBLE SOLENOID VALVE
FESTO CPE14-M1H-5J-QS-8 5/2-way bistable valve with MSZD-3-24DC coil offers efficient compressed air control with 680 l/min flow rate.5/2-WayActuationAirBistablecoilCompressedControlCPE14-M1H-5J-QS-8ElectricalFestoIndustrialMSZD-3-24DCPneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

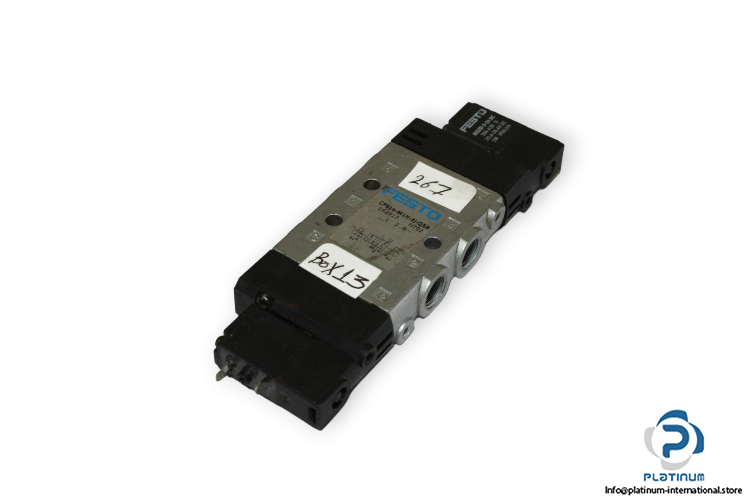

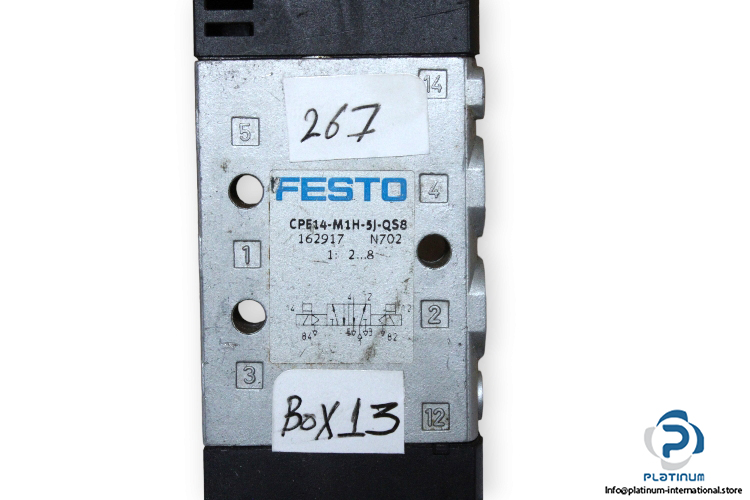

FESTO CPE14-M1H-5J-QS-8 DOUBLE SOLENOID VALVE WITH COIL
The FESTO CPE14-M1H-5J-QS-8 is a high-performance 5/2-way bistable double solenoid valve, ideal for demanding pneumatic systems. Designed for compressed air operation, it offers high flow efficiency and stable electrical actuation. The valve comes equipped with the FESTO MSZD-3-24DC solenoid coil for reliable control and enhanced durability.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE14-M1H-5J-QS-8
Part No.: 162917
Coil Technical Information
| Fluid | Compressed Air |
| Function | 5/2-way Valve, Bistable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 / 8 bar |
| Nominal Flow Rate | 680 l/min |
| Pneumatic Connection | QS-8 |
| Material | Die-Cast Aluminum |
| Ambient Temperature | -10 / 50 °C |

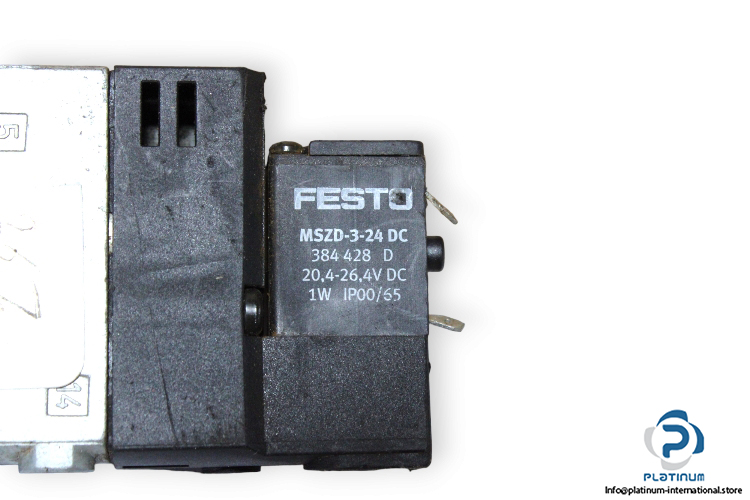

| Attachment | FESTO 384 428 SOLENOID COIL |
| Part No. | 384428 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1 W |
| Protection Class | IP65 |
