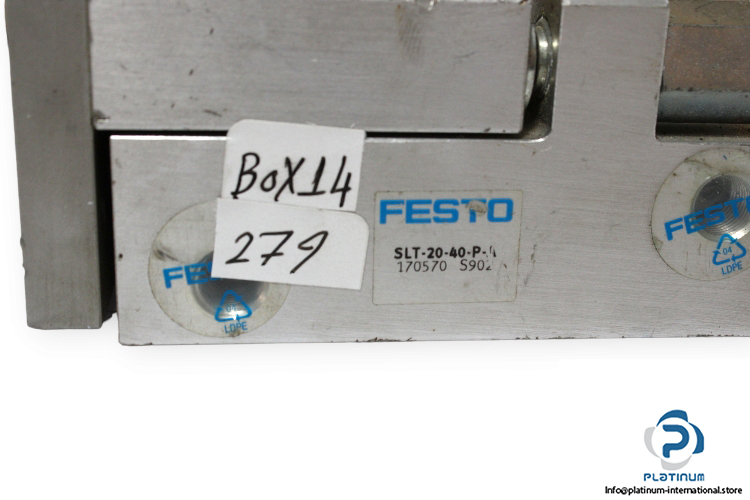

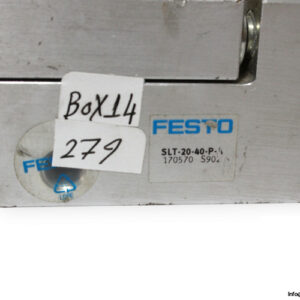

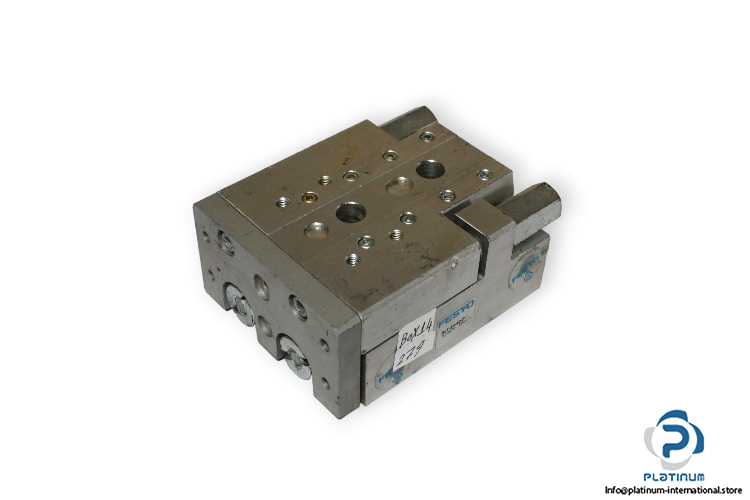

Festo 170570 Mini Slide

Manufacturer: FESTO
Type: Mini slide
Model: SLT-20-40-P-A
Part No.: 170570

Stroke Length: 40 mm
Piston Diameter: 20 mm
Adjustable end-position range/length: 12 mm
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Flexible cushioning rings/plates at both ends
Pneumatic Connection: G1/8
Temperature: -20 … 80 °C
