Festo 196881 AIR Solenoid Valve

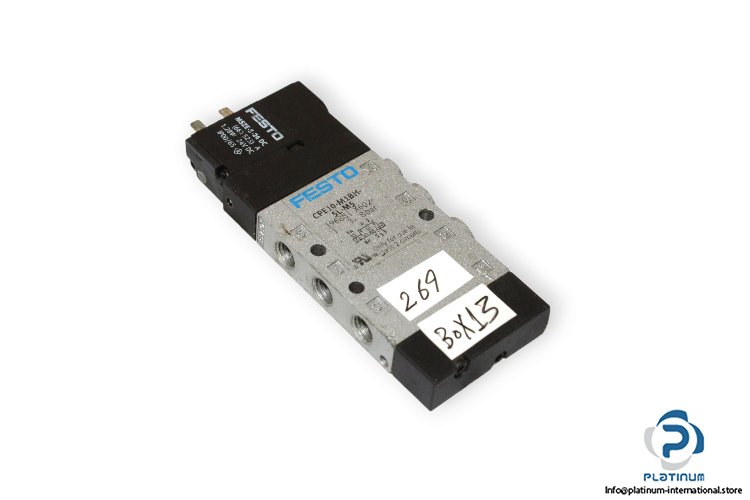

FESTO CPE10-M1BH-5L-M5 AIR SOLENOID VALVE WITH COIL

The FESTO CPE10-M1BH-5L-M5 is a compact and efficient 5/2-way monostable Air solenoid valve engineered for precise pneumatic control. Designed for robust industrial applications, it comes with a durable piston gate valve design and is paired with the FESTO MSZE-3-24V DC solenoid coil for dependable actuation performance.

Manufacturer: FESTO
Type: Air Solenoid Valve

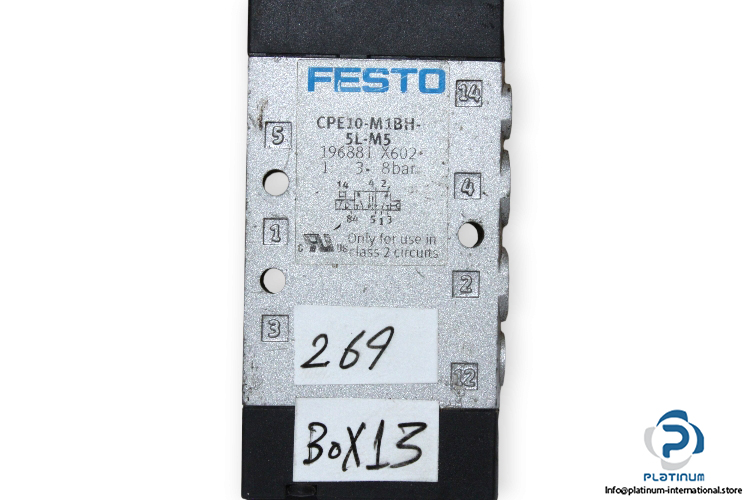

Model: CPE10-M1BH-5L-M5
Part No.: 196881

Valve Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2-way, monostable
• Type of Actuation: Electrically
• Operating Pressure: 3 … 8 bar
• Nominal Flow Rate: 180 l/min
• Pneumatic Connection: M5
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

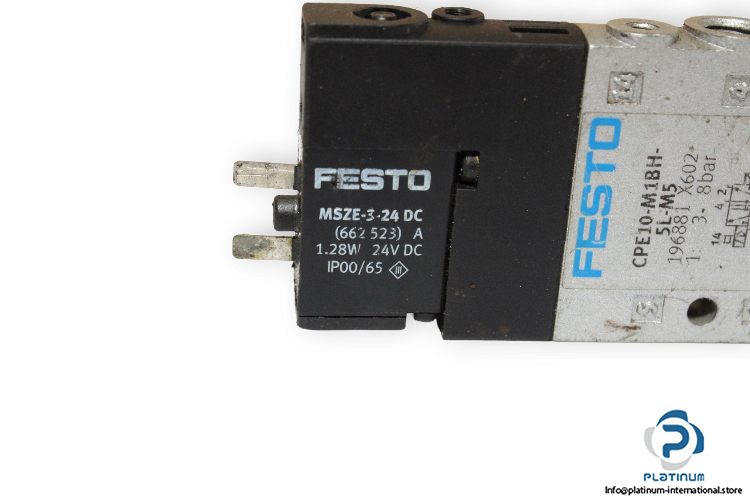

Solenoid Coil Attachment: FESTO MSZE-3-24V DC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZE-3-24V DC
Part No.: 662523

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 1.28 W
• Protection Class: IP00 / IP65
