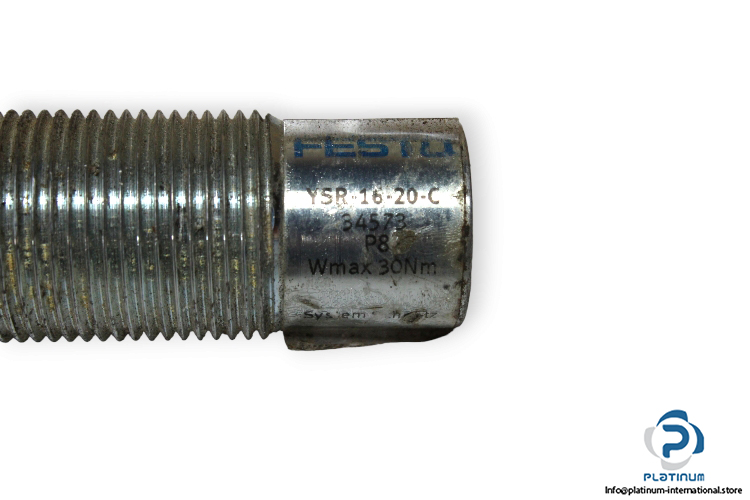

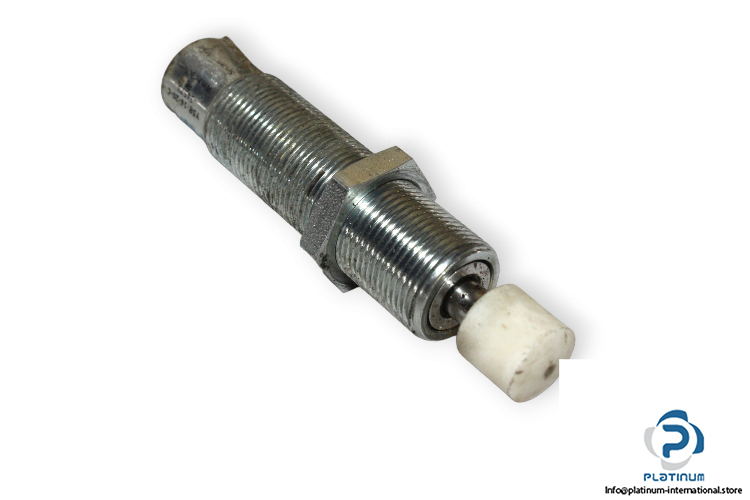

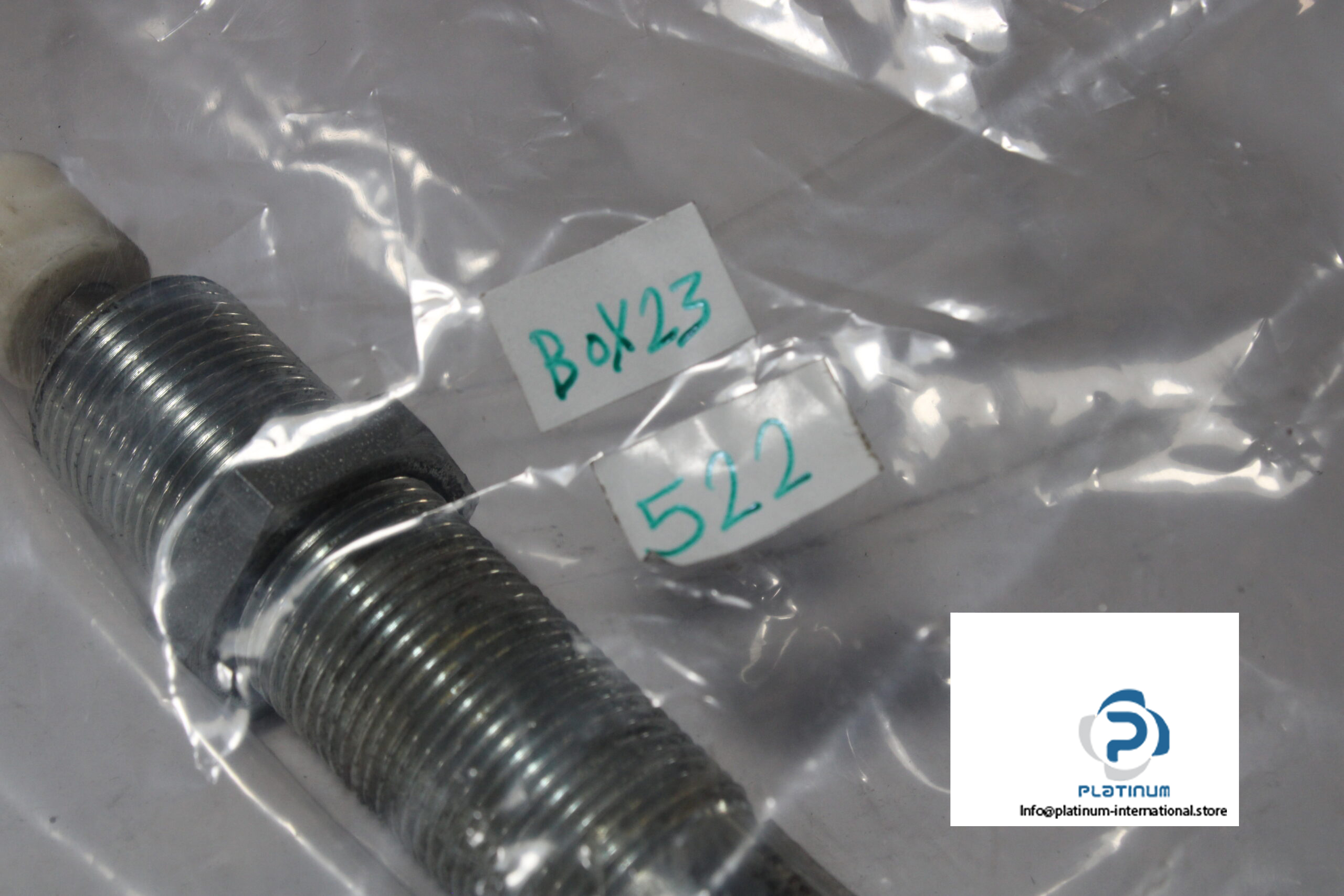

Festo 34573 Shock Absorber

Manufacturer: FESTO

Type:  Self-Adjusting Shock Absorber

Model: YSR-16-20-C

Part No.: 34573

Type of installation: Threaded With Lock Nuts

Impact Velocity: 0.05 … 3 m/s

Max. Cushioning Work: 30 N.m

Max. stop force: 2000 N

Reset Force: 6 N

Housing Material: High-alloy steel

Shock Absorber Size: 16 mm

Stroke Length: 20 mm

Rod Diameter: 8 mm

Piston Diameter: 16 mm

Total length: 122.5 mm

Diameter and Step for Threaded Surface: M22 x1.5

Temperature Range: -10 ….. 80 °C
