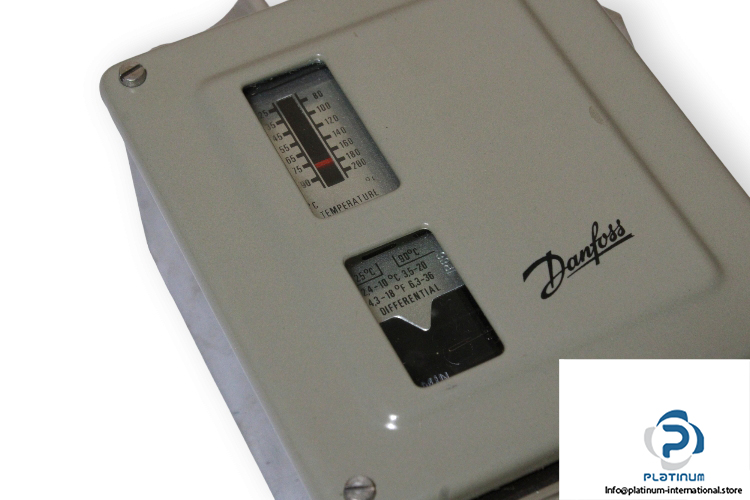

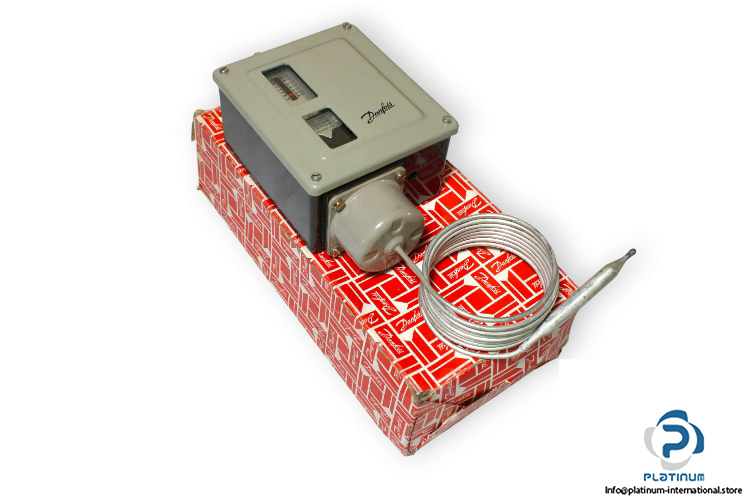

Danfoss RT 101 Temperature Switch

Manufacturer: DANFOSS

Type: Temperature Switch

Model: RT 101

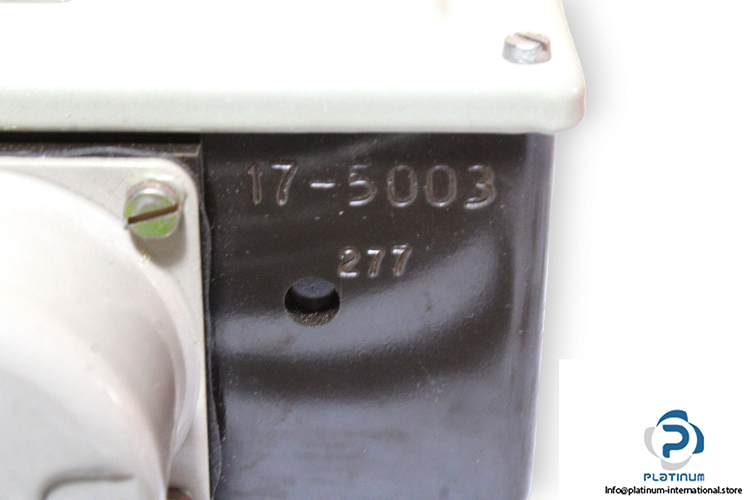

part no.: 17-5003



Cap. tube length fraction [in]:78 3/4 in

Capillary tube length [mm]: 2000 mm

Charge type: Adsorption

Contact function: SPDT

Differential type: Adjustable

Electrical conn. Male/Female: Female

Electrical connection: Screwed cable entry

Electrical connection size: 2xPg 13.5

Ambient temperature range [°C] [max]: 70 °C

Ambient temperature range [°C] [min]: -50 °C

Diff. @ Max. range setting[°C] [max]: 20 °C

Diff. @ Max. range setting[°C] [min]: 3.5 °C

Diff. @ Min. range setting[°C] [max]: 10 °C

Diff. @ Min. range setting[°C] [min]: 2.4 °C

Sensor pocket length min.: 112 mm

Sensor size (Ø x L): 9.5 x 80 mm

Sensor type: Remote bulb
