Festo 162516 Vacuum Generator
In stock1 unitReady to ship
VACUUM GENERATOR WITH SOLENOID COILS
FESTO VADM-95-P vacuum generator with MSOEB-3-24VDC and 381016 coils provides efficient vacuum control and flexible integration in pneumatic systems.381016AutomationcoilFestoGeneratorIndustrialLavalMSOEB-3-24VDCNozzlePneumaticsolenoidSubbasevacuumVADM-95-PValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

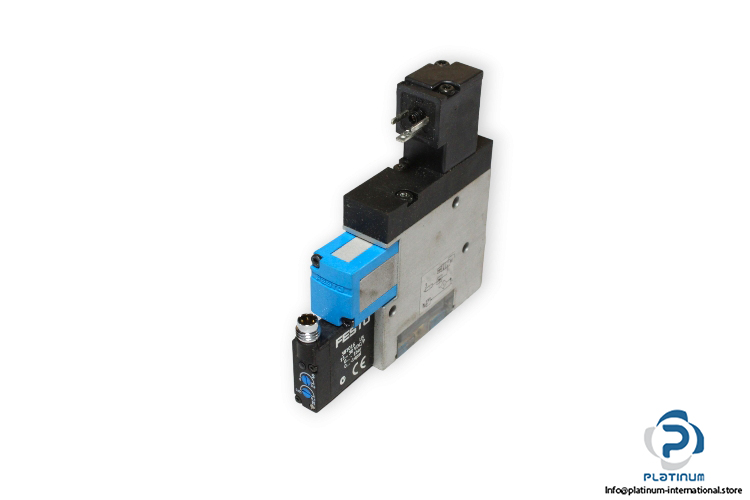

FESTO VADM-95-P VACUUM GENERATOR WITH SOLENOID COILS
The FESTO VADM95P is a high-performance vacuum generator designed for compressed air systems, offering precise vacuum generation with integrated compatibility for FESTO solenoid coils. Ideal for compact and reliable automation setups.
Manufacturer: FESTO
Type: Vacuum Generator

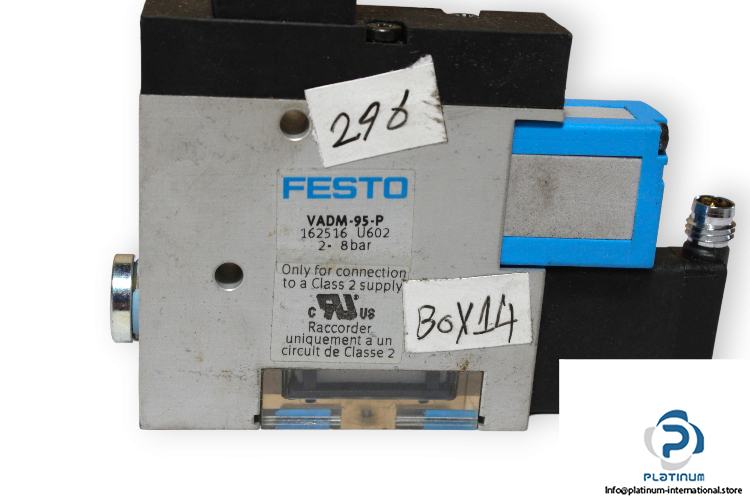

Model: VADM-95-P
Part No.: 162516
| Width | 18 mm |
| Operating Pressure | 2 / 8 bar |
| Filtration Grade | 40 micron |
| Nominal Width of Laval Nozzle | 0.95 mm |
| Switching Contact | Normally Open (NO) |

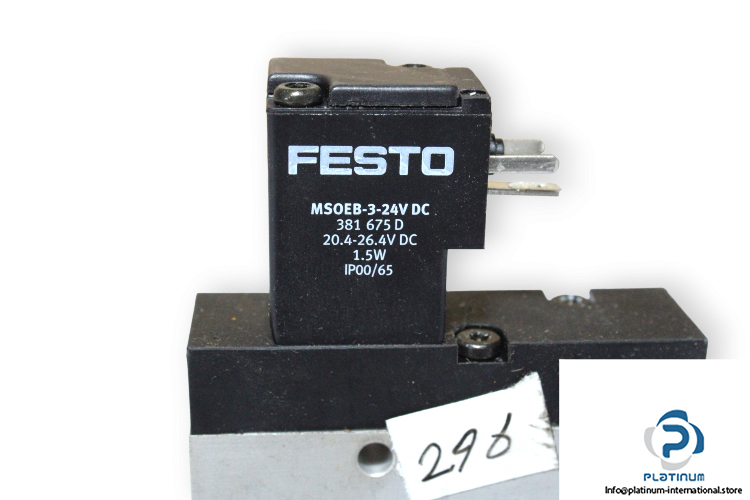

| Attachment | FESTO MSOEB-3-24VDC Solenoid Coil |
| Part No. | 381675 |
| Operating Voltage | 20.4 / 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |

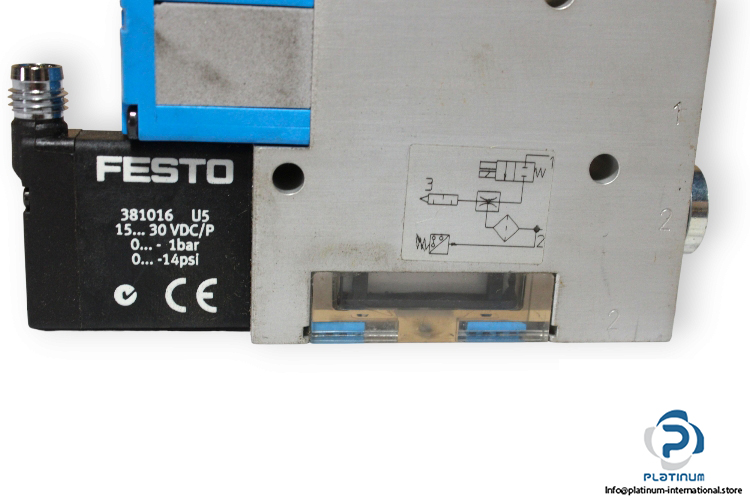

| Attachment | FESTO 381016 Solenoid Coil |
| Operating Voltage Range | 15 / 30 V DC |
| Ambient Temperature | 0 / 50 °C |
| Port Size | G1/8 |
