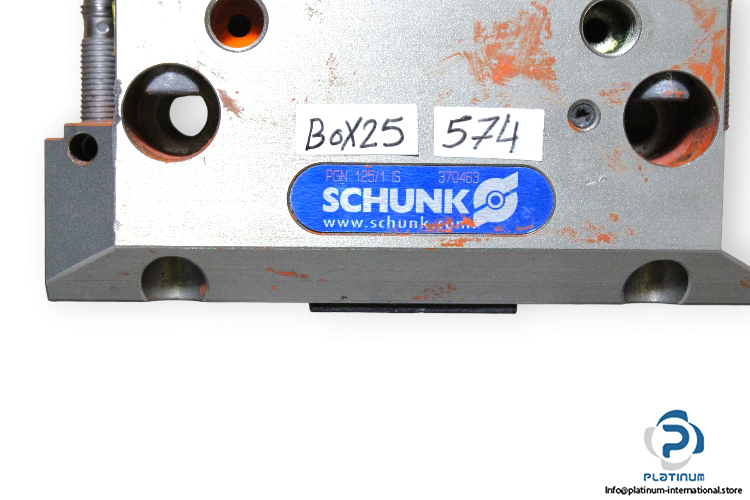

Schunk PGN 125/1 IS Universal Gripper

Manufacturer: SCHUNK

Type: Universal gripper

Model: PGN 125/1 IS

Part No.: 370463



Stroke per jaw: 13 mm

Opening force: 1560 N

Opening force (with finger lengths of 0 mm): 1805 N

Min. spring force: 390 N

Recommended workpiece weight: 5.4 kg

Fluid consumption double stroke: 166 cm³

Min. operating pressure: 4 bar

Max. operating pressure: 6.5 bar

Nominal operating pressure: 6 bar

Min. air purge pressure: 0.5 bar

Max. air purge pressure: 1 bar

Closing time: 0.12 s

Opening time: 0.08 s

Closing/opening time with spring: 0.3 s

IP protection class: 40

Min. ambient temperature: 5 °C

Max. ambient temperature: 90 °C

Repeat accuracy: 0.01 mm

Length X: 151 mm

Width Y: 60 mm

Height Z: 93 mm
