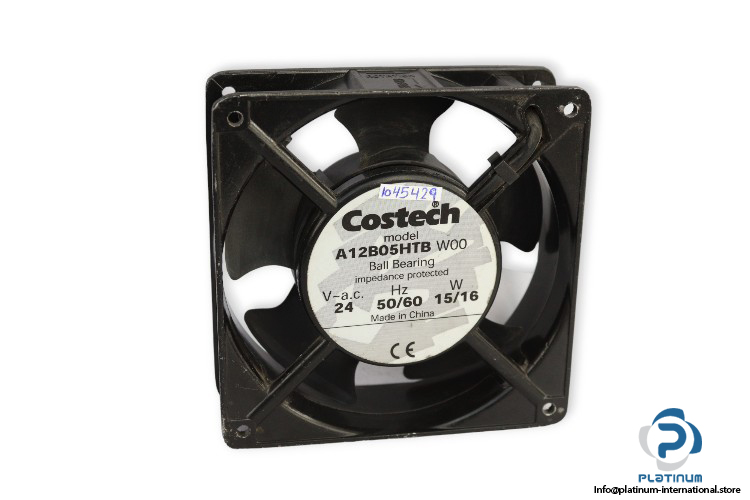

Costech A12B05HTB Axial FAN

Name: COSTECH A12B05HTB AXIAL FAN
SKU: 1045429
Availability: LimitedAvailability

Used

In stock1 unitReady to ship

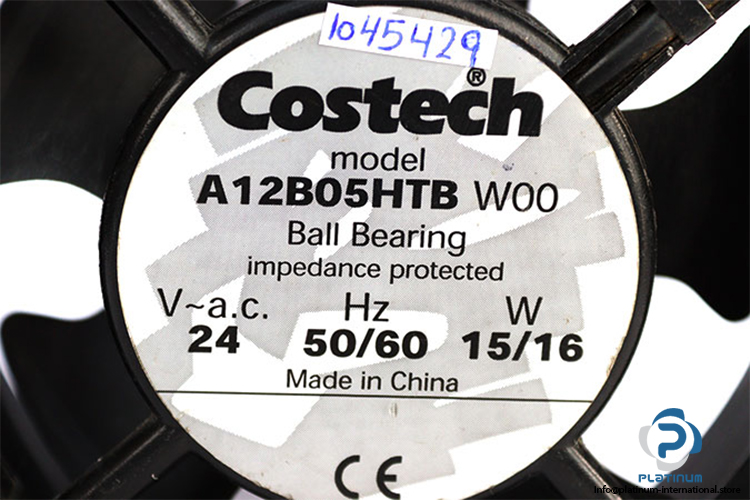

Manufacturer: Costech Type: Axial Fan Model: A12B05HTB Part. No: A12B05HTB-W00

Manufacturer

COSTECH

SKU

1045429

Category

Axial Fans & Fan Filter Units

Condition

Used

Axial Ebmpapst Fans Industrial

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

Manufacturer: Costech
Type: Axial Fan
Model: A12B05HTB
Part. No: A12B05HTB-W00

Frame Shape: Square Frame
No. of Blades: 5

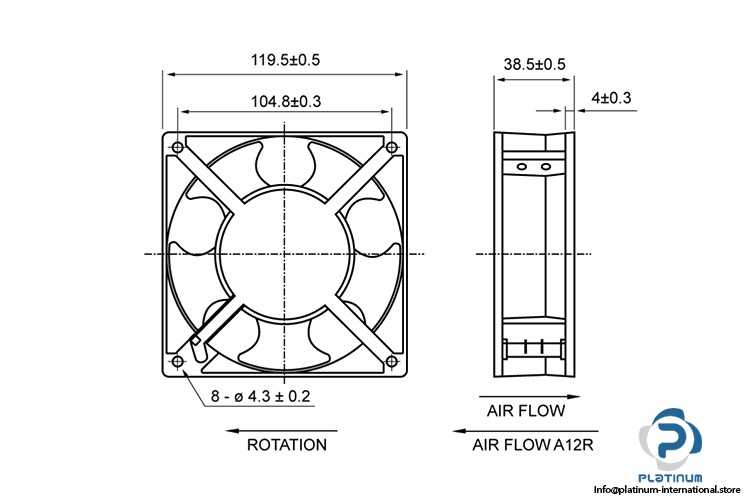

Dimensions (mm): 119x119x38
Direction: Push
Bearing: Ball Bearing
Voltages (V AC): 24
Power Rating (W): 15-16
Speed (rpm): 2550-2800

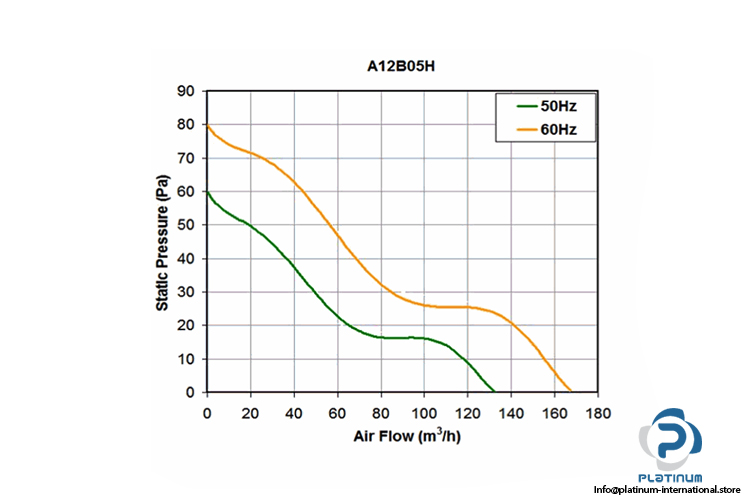

Flow Rate (m3/h): 129-142
Flow Rate (CFM): 76.33-84.02
Current (mA): 770-800
Frequency (Hz): 50/60
Inverter: without Inverter
Number of Wires: 2
Blade material / Fan housing material: Plastic / Metal

Specification	Value
Weight	0,54 kg
Condition	Used
No. of Wires	2
Type of Product	Axial Fan
Frame Shape	Square Frame
No. of Blades	5
Inverter	Without Inverter
Blade Material	Plastic
Fan Housing Material	Metal
Dimensions [mm]	119x119x38
Direction	Push
Voltage Type	AC
Frequency [Hz]	50/60
Bearing	Ball Bearing
Voltage [V]	24
Shelf No.	240428
Manufacturer	COSTECH
Power [kW]	0.015-0.016
Speed [RPM]	2550-2800
Current [A]	0.77-0.8
Flow Rate [m3/h]	129-142
Flow Rate CFM	76.33-84.02
Part No.	A12B05HTB-W00
