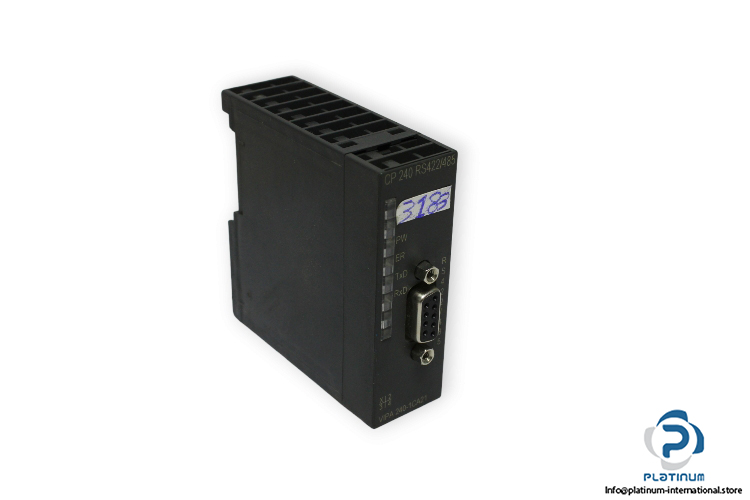

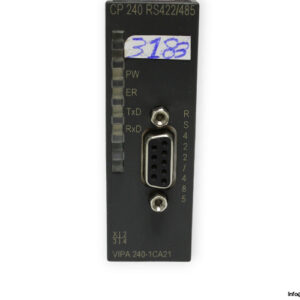

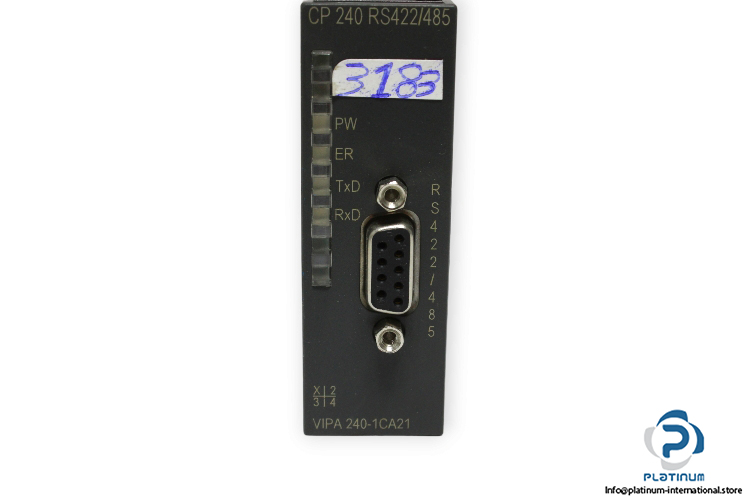

CP 240 RS422/485 Communication Module

ype: Communication Module
Model: CP 240 RS422/485
Part No: VIPA 240-1CA21

Power supply: 5 V DC, max. 90mA, isolated
Current consumption from backplane bus: 150 mA
Power loss: 0.75 W
Type of interface: RS422/485 interface
Connector: Sub-D, 9-pin, female
Transmission speed: min: 150bit/s  max:  115.2 kbit/s
Cable length, max: 1200m
Material: PPE
Input bytes: 16
Output bytes: 16
Mounting Profile rail: 35 mm
Operating Temperature: 0 °C … 60 °C
Degree of protection:
Dimensions: 25.4 x 76 x 78 mm
