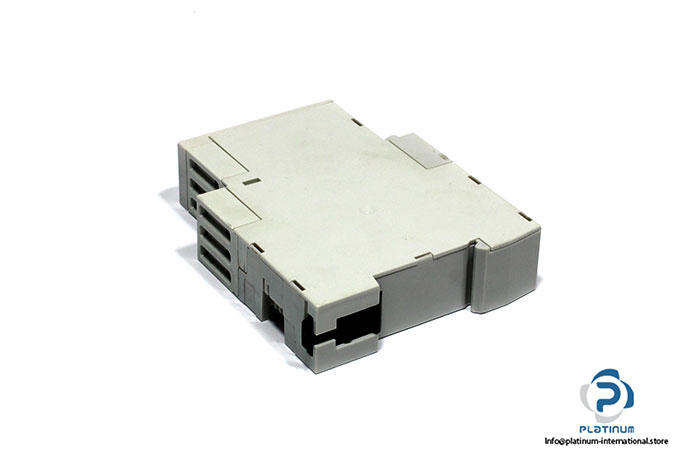

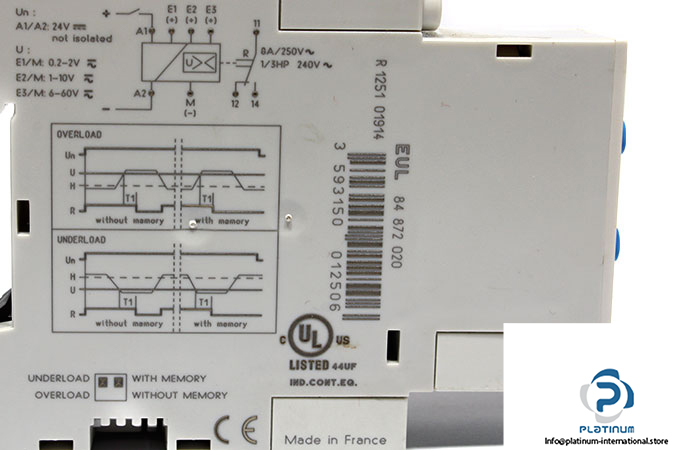

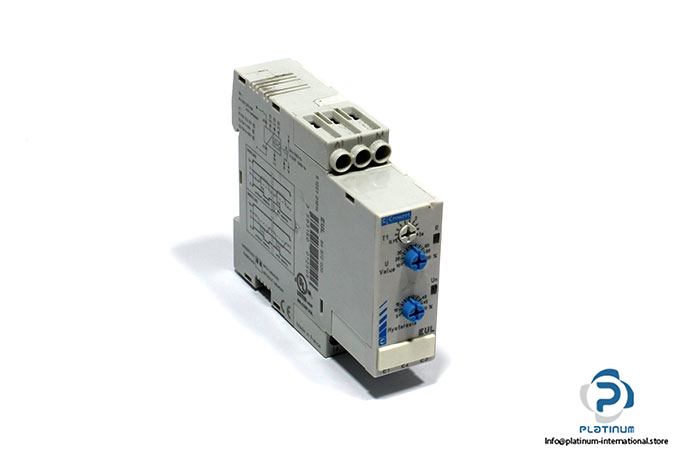

Crouzet EUL Voltage Monitoring Relay

Manufacturer: CROUZET

Type: Voltage Monitoring Relay

Model: EUL

Part No.: 84872020

Supply Voltage: 24 V DC

Inputs and measuring circuit:

Frequency of measured signal: 40 →500 Hz

Measurement range:

0,2 →60 V

E1-M: 0,2 →2 V

E2-M: 1 →10 V

E3-M: 6 →60 V

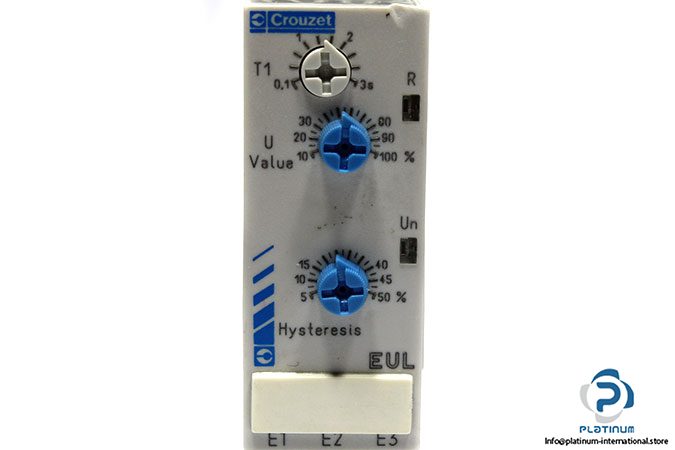

Timing:

Delay on threshold crossing Tt: 0,1 →3 s

Output:

Type of output: 1 changeover Contact

Maximum breaking voltage: 250 VAC/DC

Max. breaking current: 8 AAC max.

Min. breaking current: 100 mA AC/DC

Mounting: On 35 mm symmetrical DIN rail, IEC/EN 60715

Degree of Protection: Terminal block: IP20 Casing: IP50

Operating Temperature: -20 … +60 °C

Dimensions: 78 x 102 x 22.5 mm
