Crydom D53TP50C Solid State Contactor
Used
In stock1 unitReady to ship
Solid State Contactor
A three-phase solid state contactor designed for reliable AC load switching, offering silent operation, high surge capacity, and long operational life for industrial motor and power control applications.ACAutomationComponentsContactorControlCrydomD53TP50CIndustrialLoadmotorPhasePowerSolidSSCStateSwitchingthree
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

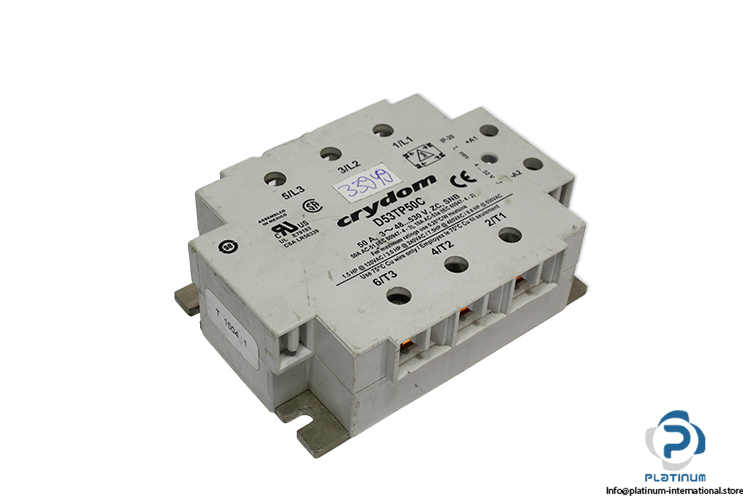

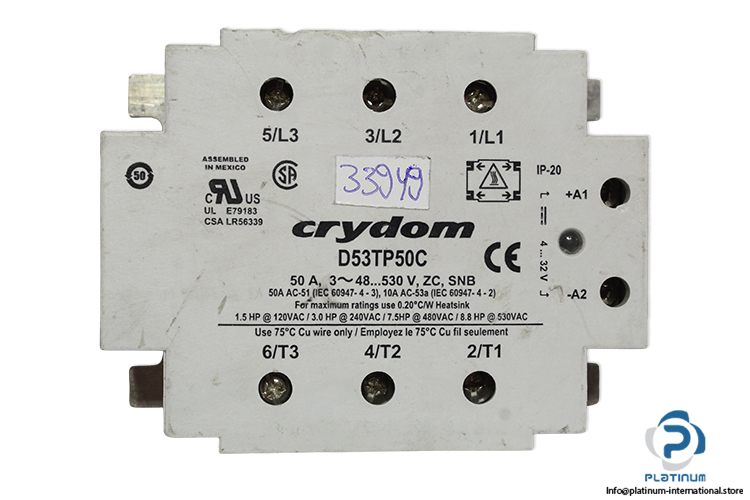

CRYDOM D53TP50C Solid State Contactor
A high-performance three-phase solid state contactor designed for reliable switching of industrial AC loads. This CRYDOM SSC provides silent operation, fast response, and long electrical life, making it ideal for motor control, heaters, and power switching applications in demanding industrial environments. Manufacturer: CRYDOM
Type: Solid State Contactor (SSC)
Model: D53TP50C
Series: 53TP
Configuration: 3-Phase
Motor / Power Ratings (As Marked)
1.5 HP @ 120 V AC
3 HP @ 240 V AC
7.5 HP @ 480 V AC
8.8 HP @ 530 V AC
| Rated Current | 50 A |
| Load Voltage Range | 48 / 530 V AC |
| Frequency | 50 / 60 Hz |
| Utilization Categories | AC-51 / AC-53 |
| Maximum Surge Current | 600 A (4“3.3 ms) |
| Control Voltage | 4 / 32 V DC |
| Ingress Protection | IP20 |
| Ambient Operating Temperature | -40 to 80 °C |
| Terminals | Hardware Furnished, Mounted |
| Terminal Hardware | Zinc Plated Steel Screws and Saddle Clamps |
