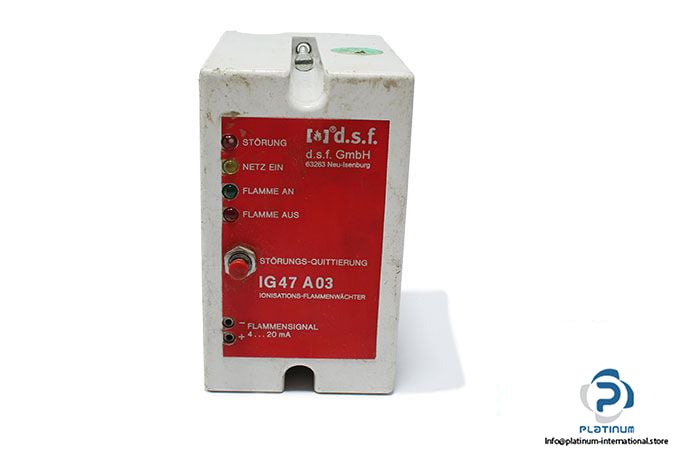

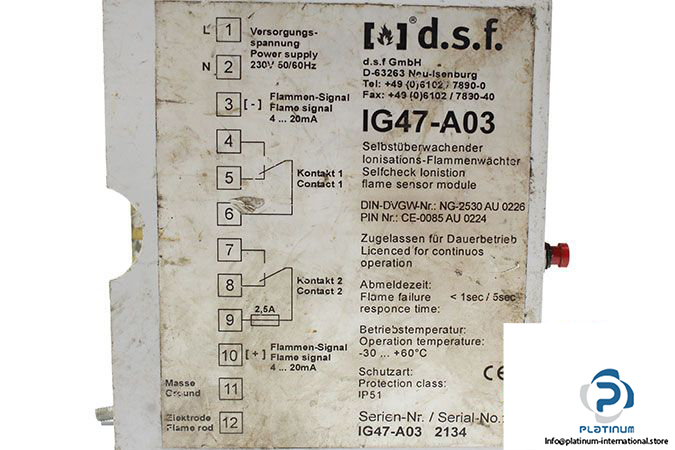

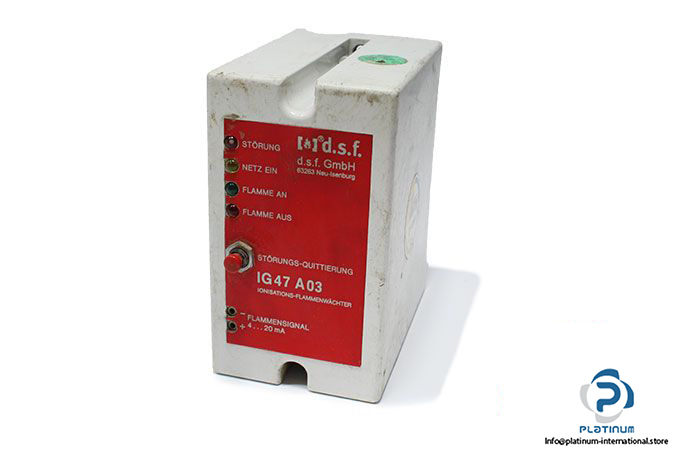

D.S.F IG47 A03 Self Check-Ionization Flame Safeguard Control

Manufacturer: D.S.F

Type: Self Check-Ionization Flame Safeguard Control

Model: IG47 A03

Power Supply: 230V, 120V, 110V, 50/60 Hz 24VDC

Power Interrupts: Up to 100ms no infl uencing

Operation Temperature: -30 … +60°C

Protection Class: IP 51

Load: 250 VA, max. 4 A

Flame Signal Output: 4 … 20mA

Failure Response Time: State of delivery: <1s adjustable to <5s
Power Consumption: 7 VA

Pre Fuse (Max.): 2 A (MT)

Fuse for Safety Circuit: 2.5A (MT)

Max. Flame Rod Cable Length: 50 m

Dimensions: 64 X 103 X 109 mm

Weight: 0.4 Kg
