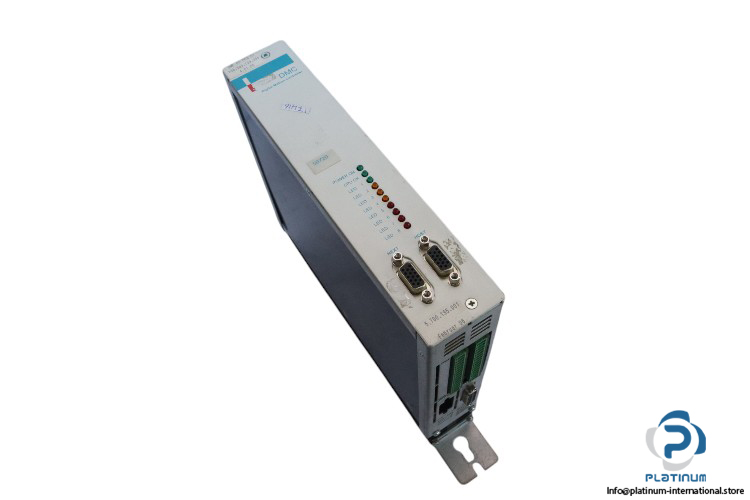

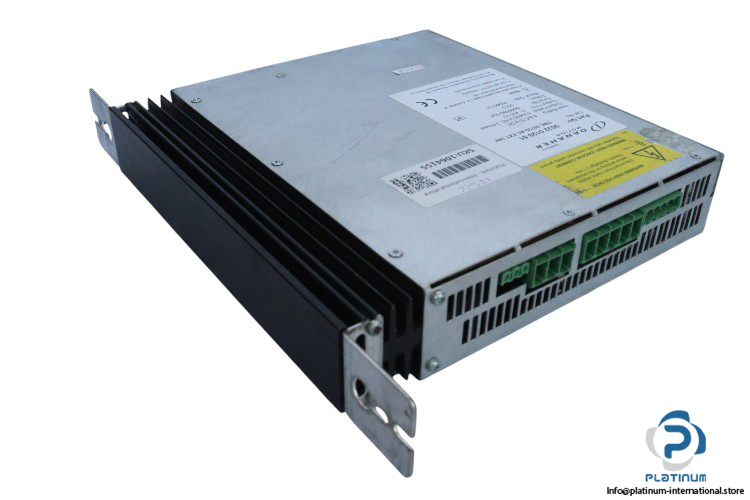

Danaher Motion 9032 0120 51 Digital Motion Controller
Used
In stock29 unitsReady to ship
311,11$
Danaher Motion Digital Motion Controller DMC 50720-AC EXT 24V with 570 V DC input voltage, 3-phase 400 V AC output, and 3 kW continuous output power at 40°C. Designed for precise motion control with high efficiency.
2024v33-phase.40050720-AC570aACContinuousControlControllerCurrentDanaherdcDigitalDimensionsDmcEfficiencyEXTHighIndustrialIPkWMotionOutputPeakPowerProtectionRangeSpeedV
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Danaher Motion Digital Motion Controller/DMC DMC 50720-AC EXT 24V
Danaher Motion Digital Motion Controller DMC 50720-AC EXT 24V is a high-performance controller designed to deliver precise motion control in industrial applications. With its robust features, this controller ensures efficient operation in a wide range of conditions. Below are the key technical specifications:
- Manufacturer: Danaher Motion
- Type: Digital Motion Controller/DMC
- Model: DMC 50720-AC EXT 24V

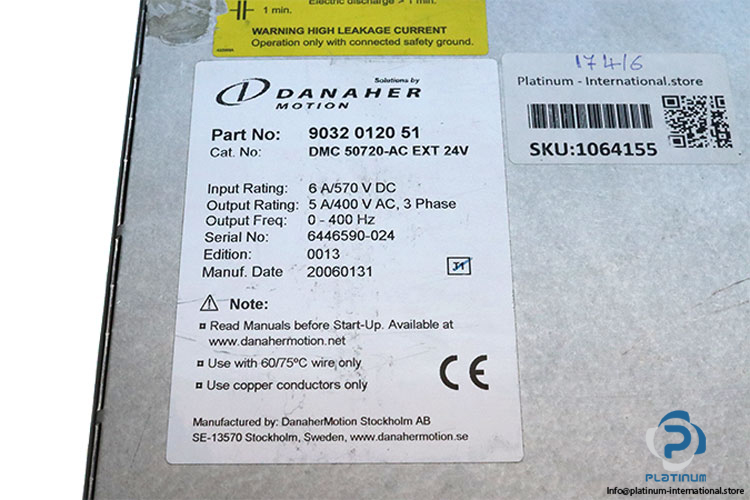

- Part No.1: 9032012051

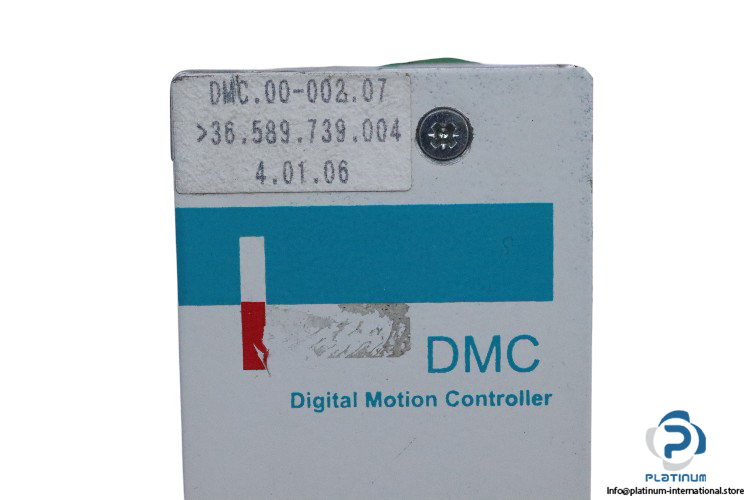

- Part No.2: DMC.00-002.07

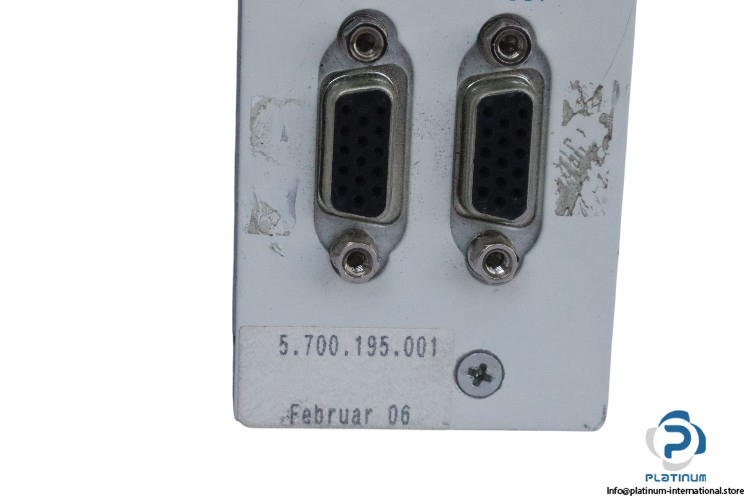

- Part No.3: 5.700.195.001
- Part No.4: 36.589.739.004
Technical Data:
- Input Voltage: 570 V DC
- Input Current: 6 A
- Output Voltage: 3 phase / 400 V AC
- Output Current: 5 A
- DC Bus Voltage: 570 V DC
- Shunt Regulation On: 670 to 700 V DC
- Shut Down DC Bus Voltage: 700 to 725 V DC
- Continuous Current (A DC): 7 A at 40°C
- Continuous Current (Arms): 4.5 A at 40°C
- Peak Current: 20 A
- Power Loss: 90 W
- Continuous Output Power: 3 kW at 40°C
- Min Motor Inductance: 8 mH
- Speed Range: 1 to 9000 RPM
- Output Frequency: 0 to 400 Hz
- Ambient Temperature: 0 to 60°C
- Protection Degree: IP 20
- Dimensions: 234 x 46 x 227 mm
