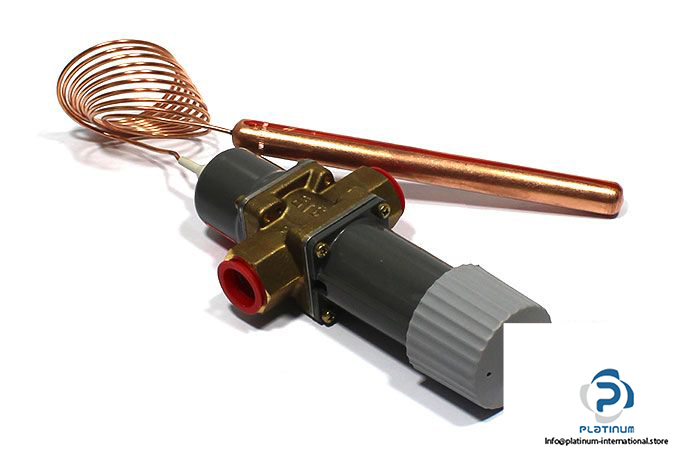

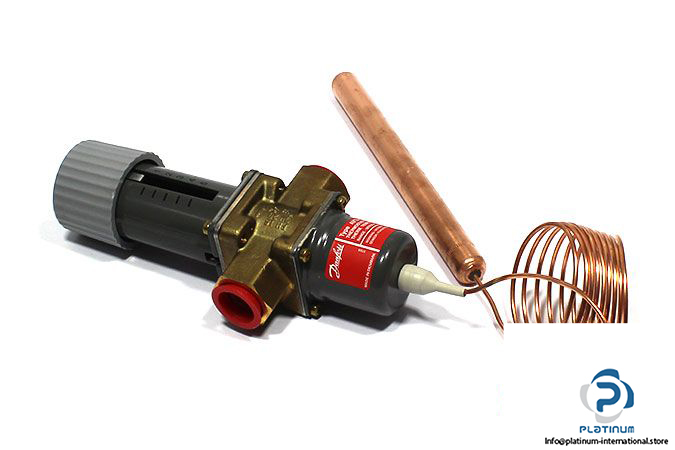

Danfoss 003N3182 Pressure Operated Water Valve

Manufacturer: Danfoss

Type: Pressure Operated Water Valve

Model: AVTA 20

Part No: 003N3182

Material No: 10071559

MRN: ZAN00463969



Max. Pressure on Sensor: 25 bar

Differential Pressure: 0…10 bar

Max. Test Pressure: 25 bar

Max. Working Pressure: 16 bar

Media: Neutral Media

Cap. Tube Length Fraction: 78 3/4 in

Capillary Tube Length: 2000 mm

Cv Value: 3.9 gal/min

Kv Value: 3.4 m³/h

Connection: G¾”

Medium Temperature: -25…130 °C

Max. Sensor Temperature: 125 °C

Body Material: Brass

Weight: 1.72 kg
