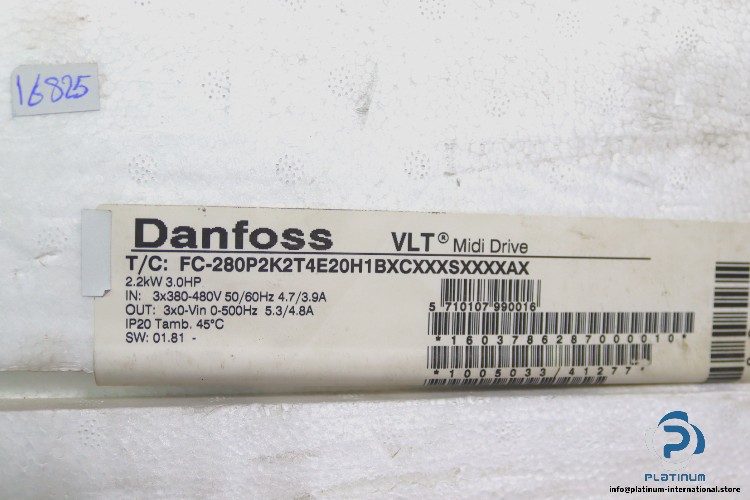

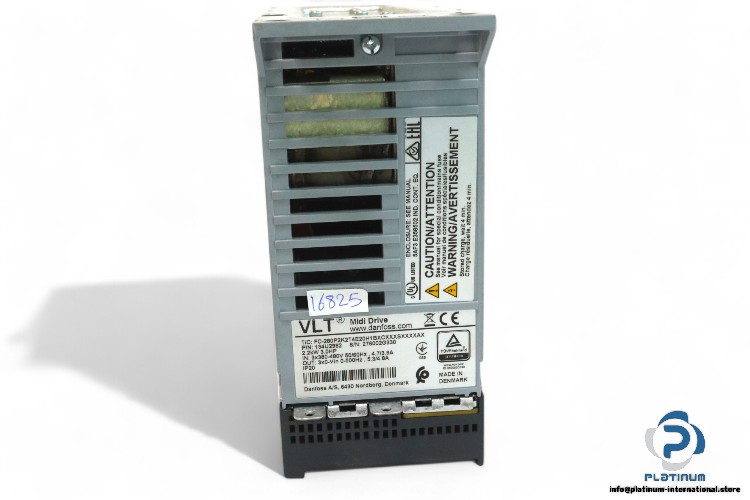

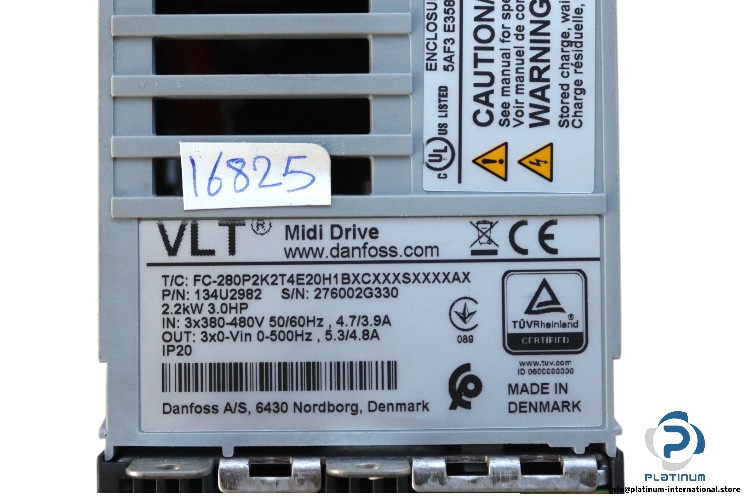

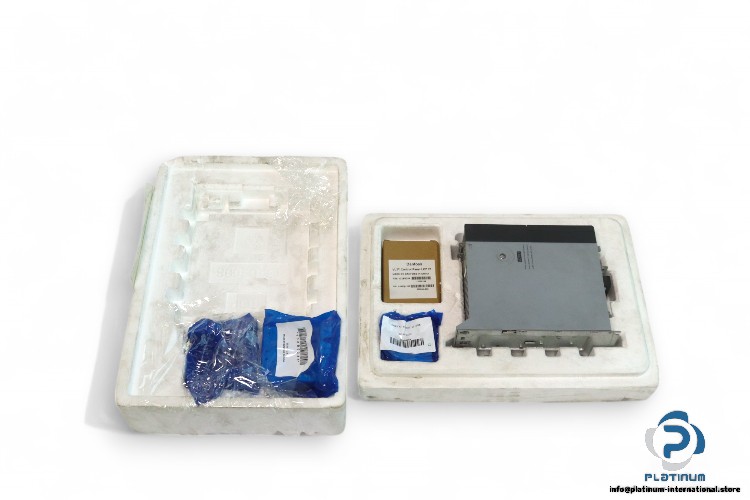

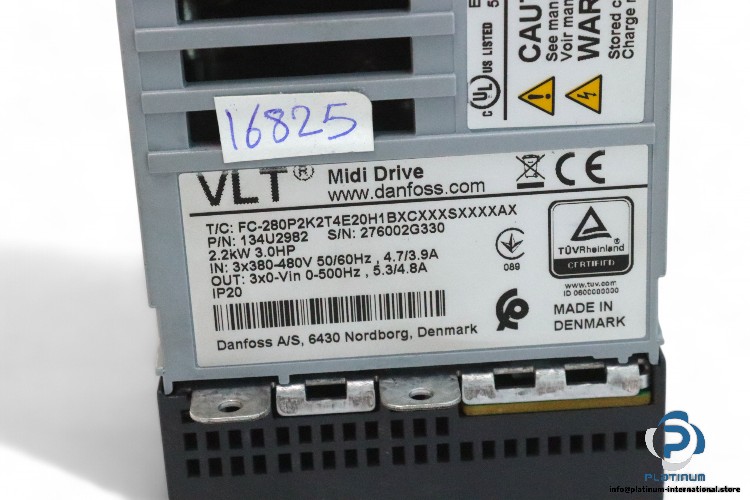

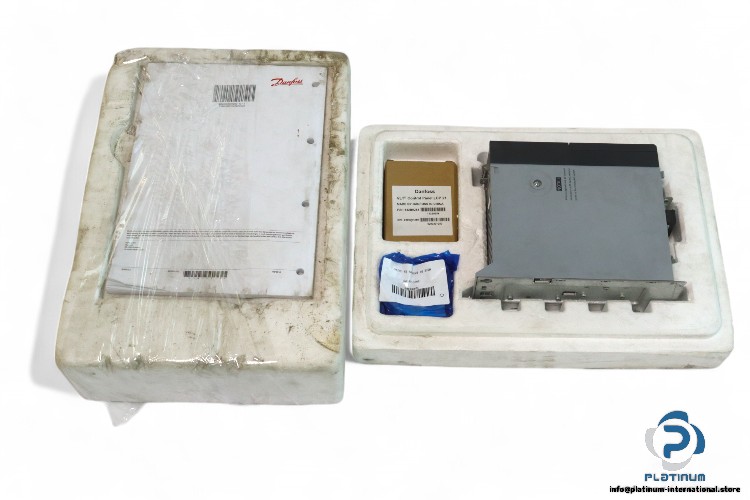

Danfoss 134U2982 Frequency Converter
555,55$
Danfoss FC-280P2K2T4E20H1BXCXXXSXXXXAX Frequency Converter “ 2.2 kW, 3-Phase High-performance VLT® Midi Drive frequency converter with **3-phase input/output**, **2.2 kW power**, **IP20 protection**, and **500 Hz max frequency**, ideal for motor speed control.
Danfoss FC-280P2K2T4E20H1BXCXXXSXXXXAX Frequency Converter “ 2.2 kW, 3-Phase
The Danfoss FC-280P2K2T4E20H1BXCXXXSXXXXAX is a high-performance **frequency converter** from the **VLT® Midi Drive family**, designed for **precise motor speed control and energy efficiency**. With **3-phase input and output**, **adjustable frequency range up to 500 Hz**, and a **rated power of 2.2 kW (3 HP)**, this drive ensures **smooth and reliable operation** in industrial automation applications.
Key Product Details:
Manufacturer: Danfoss
Type: Frequency Converter
Model: FC-280P2K2T4E20H1BXCXXXSXXXXAX
Part No.: 134U2982
Family: VLT® Midi Drive
Design: Brake Chopper, No Display
Input Specifications:
Output Specifications:
Additional Information:
Engineered for **high-performance motor control**, the Danfoss FC-280P2K2T4E20H1BXCXXXSXXXXAX provides **energy-efficient speed regulation**, making it ideal for **pumps, conveyors, fans, and industrial automation systems**.
| Voltage | 3-Phase / 380 “ 480 V AC |
| Rated Current | 4.7 / 3.9 A |
| Frequency | 50 / 60 Hz |
| Voltage | 3-Phase / 0 “ 380 “ 480 V AC |
| Rated Current | 5.3 / 4.8 A |
| Frequency | 0 “ 500 Hz |
| Power | 2.2 kW / 3 HP |
| Protection Class | IP20 |
| Frame Size | K1 |
| Dimensions | 210 x 75 x 168 mm |
