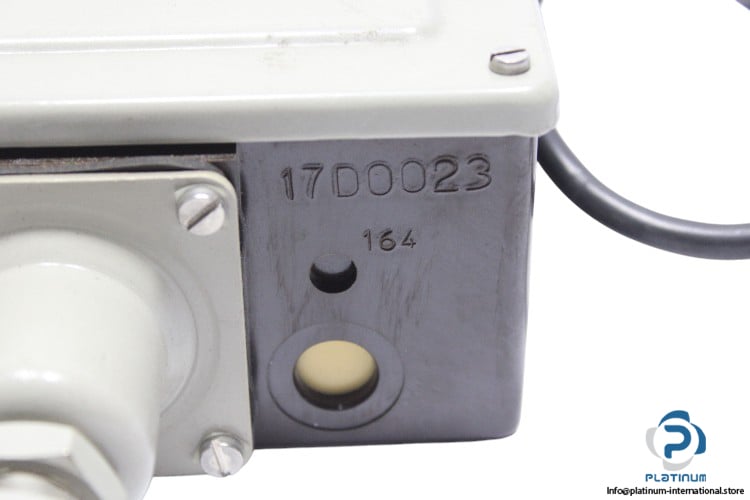

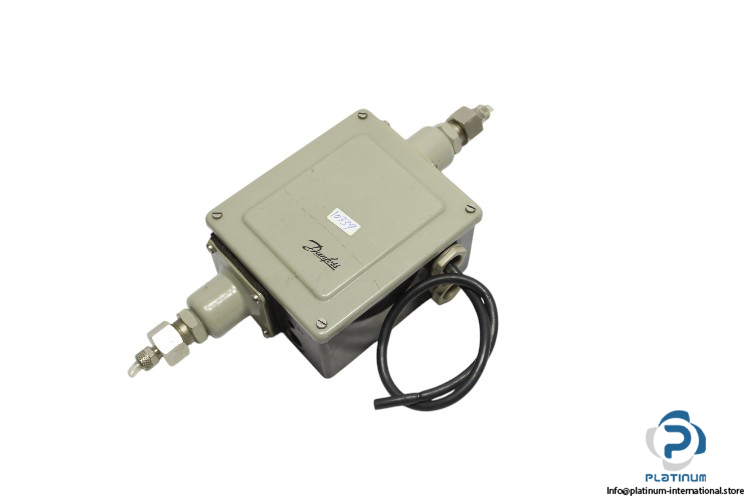

Danfoss 17D0023 Differential Pressure Switch

Danfoss Differential Pressure Switch 17D0023

The Danfoss Differential Pressure Switch 17D0023 is designed for reliable pressure monitoring and control in a variety of industrial applications. With a pressure setting range of 0.5 to 6 bar and a maximum working pressure of 42 bar, this switch ensures precise performance even under demanding conditions. It offers a rated voltage of 400 V AC and a rated current of 4 A. The switch features a SPDT output, making it ideal for use in both monitoring and control functions. Additionally, it has an IP66 protection class, ensuring its durability and resistance to harsh environmental conditions.

Manufacturer: Danfoss

Type: Differential Pressure Switch

Model: 17D0023

Technical Specifications

• Pressure Setting Range: 0.5 / 6 bar
• Working Pressure Max.: 42 bar
• Test Pressure: 47 bar
• Rated Voltage: 400 V AC
• Rated Current: 4 A
• Switch Output: SPDT
• Pressure Connection Size: G 3/8
• Protection Class: IP66
• Temperature: -50 / 70 °C
• Dimensions: 303 x 110 x 74 mm
