Danfoss 131F6631 Frequency Converter
Used
In stock2 unitsReady to ship
1 750,00$
Frequency Converter
Danfoss VLT® FC-102P15KT4E20H1XGXXXXSXXXXAXBXCXXXXDX delivers 15 kW/20 HP motor control with wide input-output flexibility, IP20 protection, and integrated LCP102 control panel.15kW20HPControlConverterDanfossFC-102FC-102P15KT4E20H1XGXXXXSXXXXAXBXCXXXXDXFrequeFrequencyIndustrialLCP102motorVariableVLT
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Danfoss Frequency Converter FC-102P15KT4E20H1XGXXXXSXXXXAXBXCXXXXDX

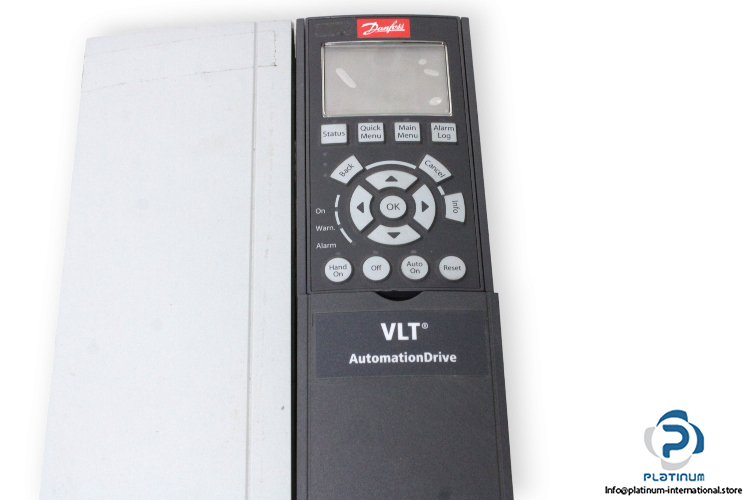

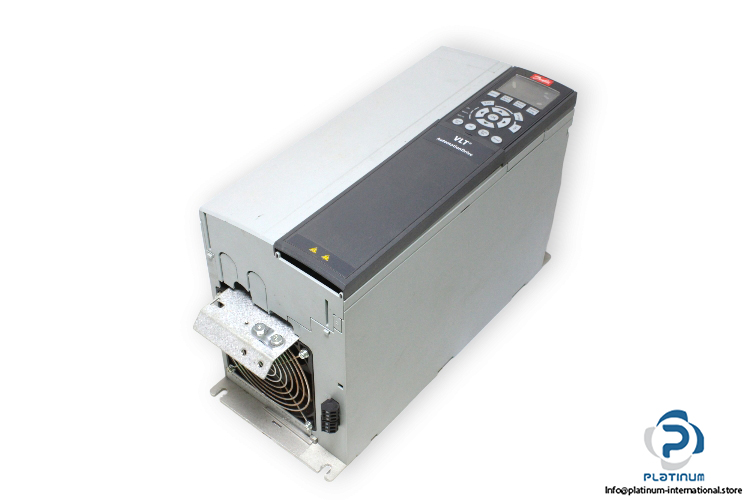

The Danfoss FC-102P15KT4E20H1XGXXXXSXXXXAXBXCXXXXDX is a powerful VLT® series frequency converter engineered for reliable motor control in industrial environments. With flexible input/output voltage ranges, robust current capacity, and precise frequency adjustment, it ensures optimized performance and energy efficiency. Supplied with the Danfoss LCP102 control panel for enhanced configuration and monitoring.
Manufacturer: Danfoss
Type: Frequency Converter

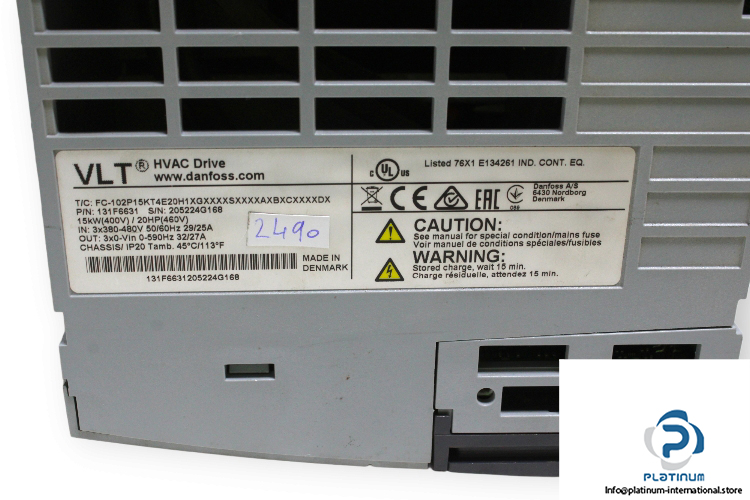

Model: FC-102P15KT4E20H1XGXXXXSXXXXAXBXCXXXXDX
Part No.: 131F6631
Series: VLT (R)
Accessories
| Input Voltage | 380 / 480 V / 3-Phase |
| Input Rated Current | 29/25 A |
| Input Frequency | 50/60 Hz |
| Output Voltage | 0 / 380 / 480 V ±10% / 3-Phase |
| Output Rated Current | 32/27 A |
| Output Frequency | 0 / 590 Hz |
| Power | 15 kW @ 400 V / 20 HP @ 460 V |
| Degree of Protection | IP20 |
| Operating Temperature | 45°C |

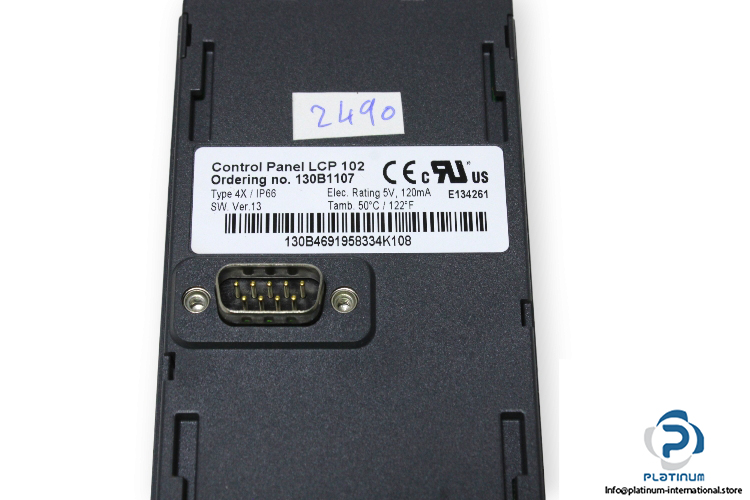

| Part No. | 130B1107 |
| Voltage | 5 V |
| Current | 120 mA |
| Degree of Protection | IP66 |
| Operating Temperature | 50°C |
