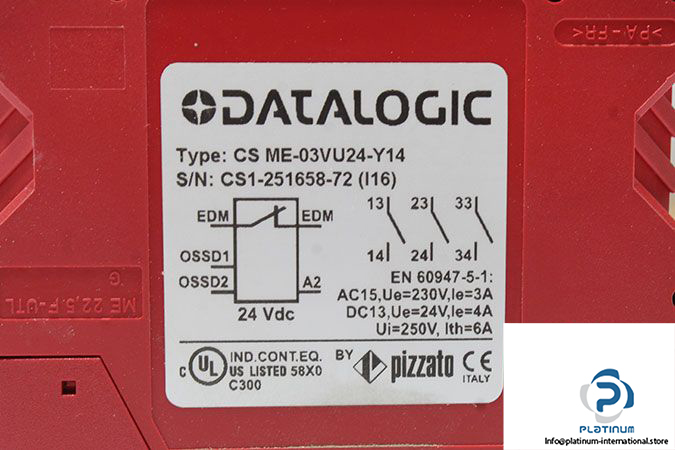

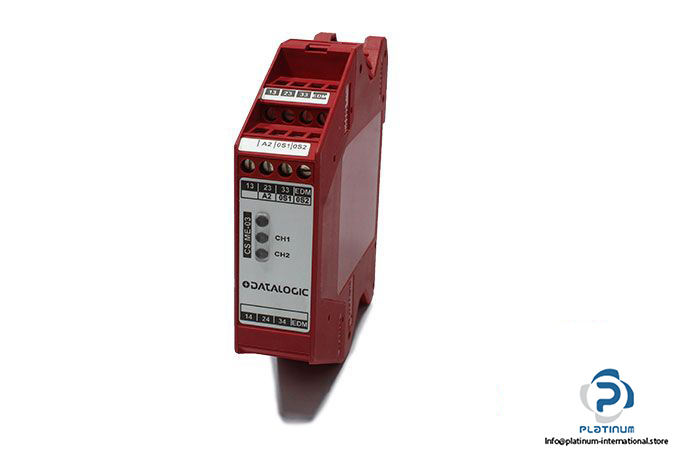

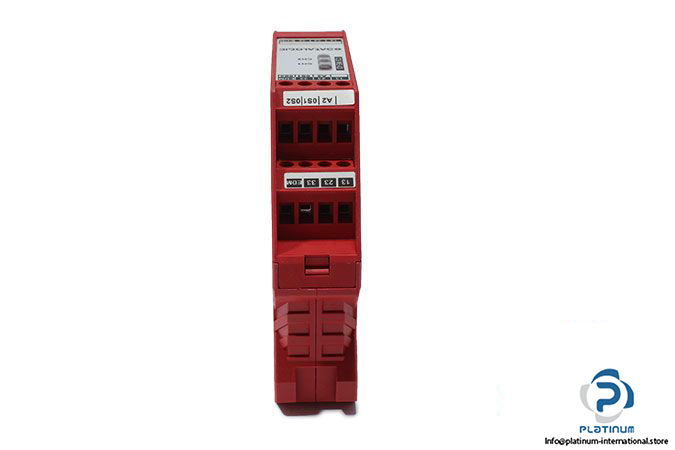

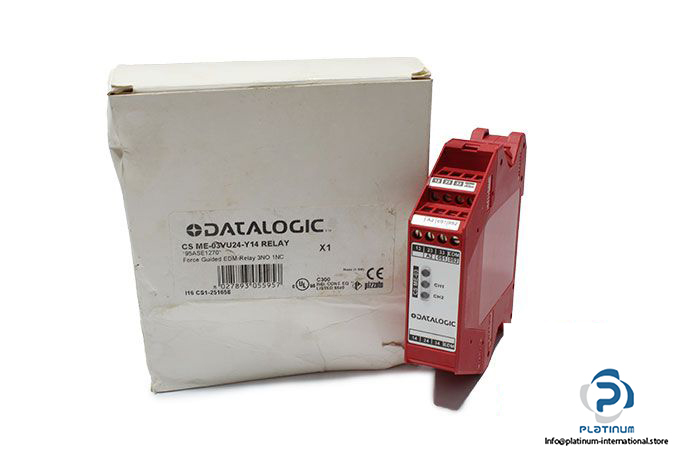

Datalogic CSME-03VU24-Y14 Forcibly Guided Relay Interface

Manufacturer: Datalogic / Pizzato

Type: Forcibly Guided Relay Interface

Model: CS ME-03VU24-Y14

Order No: 95ASE1270

Power Supply: 24 VDC

Auxiliary Outputs: 1 NC

Safe Outputs: 3 NO

Following Input Going OFF: 20 ms

Contacts Voltage: 230VAC, 3A ; 24 VDC, 4A ; 250 V, 6A

With Power Failure: 20 ms

Following Inputs Going ON: 40 ms

After Power On: 40 msz

Humidity: 15…95 % (no condensation)

Reset Modes: Automatic

Operating Temperature: -25…55°C

Mechanical Protection: IP20

Dimensions: 22.5 x 88.6 x 99 mm

Weight: 0.14 kg
