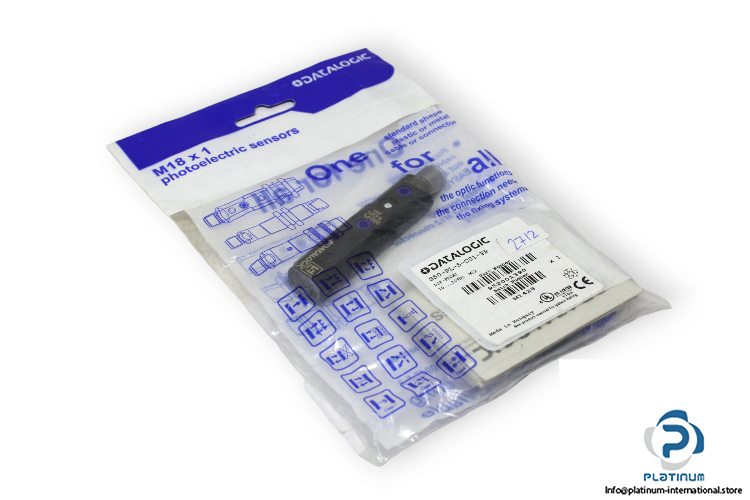

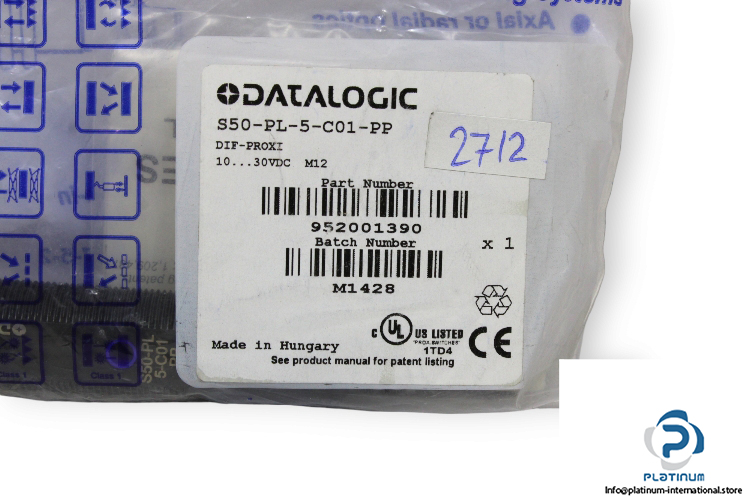

Datalogic S50-PL-5-C01-PP Photoelectric Sensor

Manufacturer: Datalogic
Type: Photoelectric Sensor/ Diffuse Proximity sensor
Model: S50PL5C01PP
Part No.: 952001390

Operating distance: axial optics 0 … 35 cm
Operating Voltage: 10 … 30 V DC
Current consumption: =< 35 mA
Output current: =< 100mA
Output: PNP, NO and NC
Switching frequency: 1.5 kHz
Operating mode: light on NO / dark on NC
Connection: 2 m Ø 4 mm cable M12 4-pole connector
Housing material: PBT
Mechanical protection: IP67
Operating temperature: -25 … +55°C
Dimensions: 15.6 x 48.5 x 42 mm
