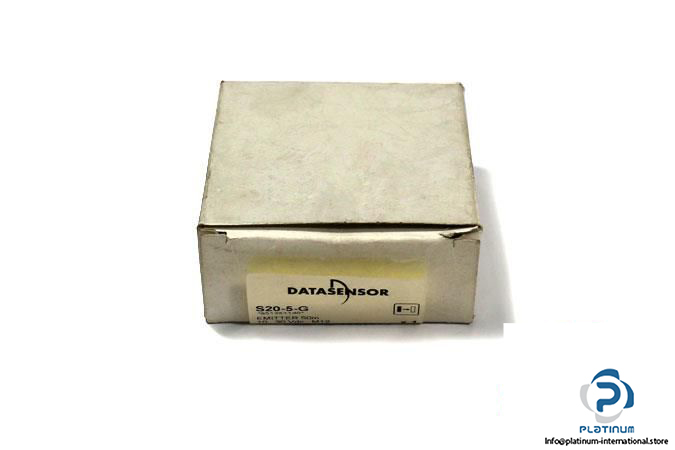

Datasensor S20-5-G Photoelectric Sensor Emitter
New
In stock1 unitReady to ship
100,00$
Photoelectric Sensor
Datasensor Datalogic S20-5-G emitter sensor with infrared LED, long sensing distance up to 50 m, fast response time, and IP66 protection for industrial automation.550m880AutomationConnectorDatalogicDatasensorDetectionEmitterGIndustrialinfraredIP66LEDlongM12NmOpticalPhotoelectricRangeS20SESensorSeries
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

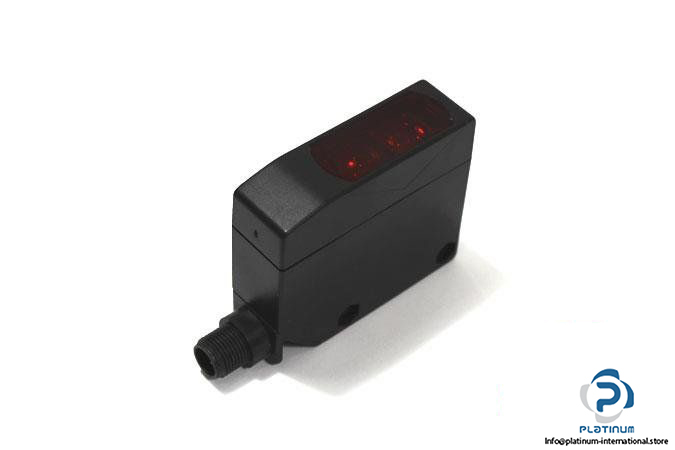

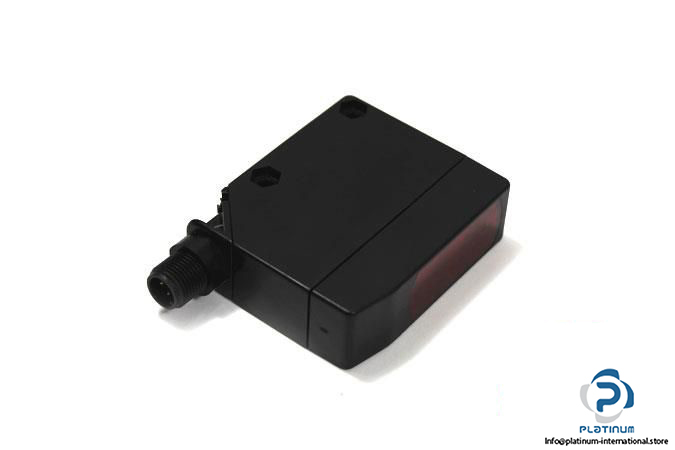

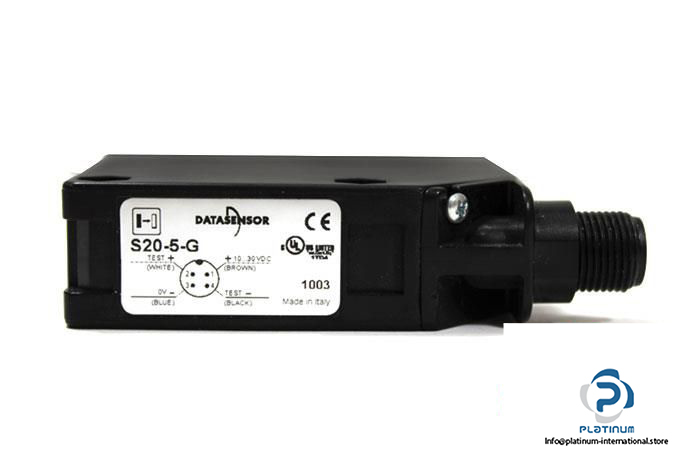

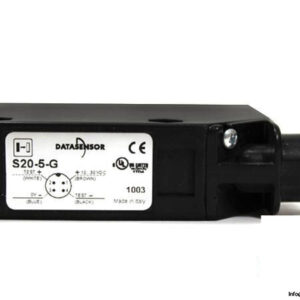

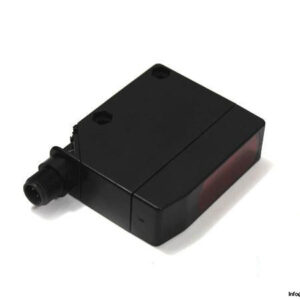

Datasensor Datalogic S20-5-G Photoelectric Sensor Emitter
The Datasensor Datalogic S20-5-G photoelectric sensor emitter is a high-performance sensing solution designed for reliable object detection in industrial automation environments. As part of the S20 Series, it delivers long sensing range, fast response time, and stable infrared light emission for accurate and consistent operation.
Manufacturer: DATASENSOR DATALOGIC
Type: PHOTOELCTRIC SENSOR-EMITTER
Model: S20-5-G
Code No.: 951351140
| Series | S20 Series |
| Configured With | Receiver S20-5-F-P |
| Optic Function | Emitter |
| Operating Distance | 0.1 / 50 m |
| Response Time | 1 ms |
| Operating Voltage | 10 / 30 V DC |
| Current Consumption | 40 mA max. |
| Output Current | 200 mA max. |
| Light Emission | Infrared LED 880 nm |
| Indicators | Yellow OUTPUT LED, Green STABILITY LED |
| Switching Frequency Max. | 500 Hz |
| Housing | ABS |

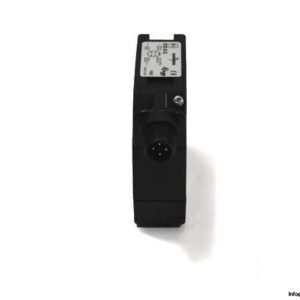

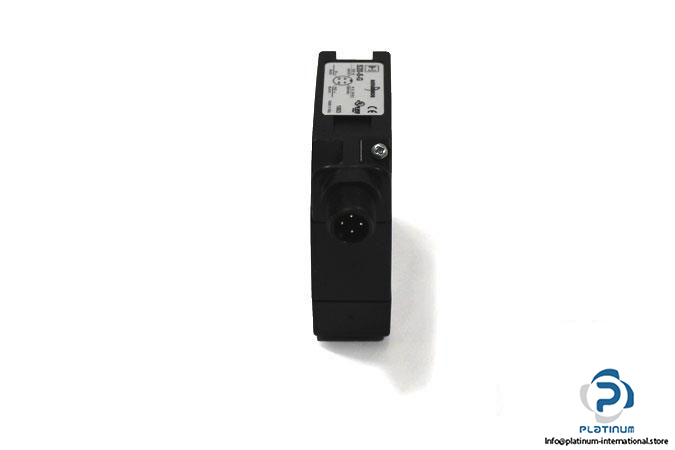

| Connection | M12 Connector, 4-Pin |
| Mechanical Protection | IP66 |
| Operating Temperature | -25 / +60°C |
| Dimensions | 55 x 21 x 66 mm |
