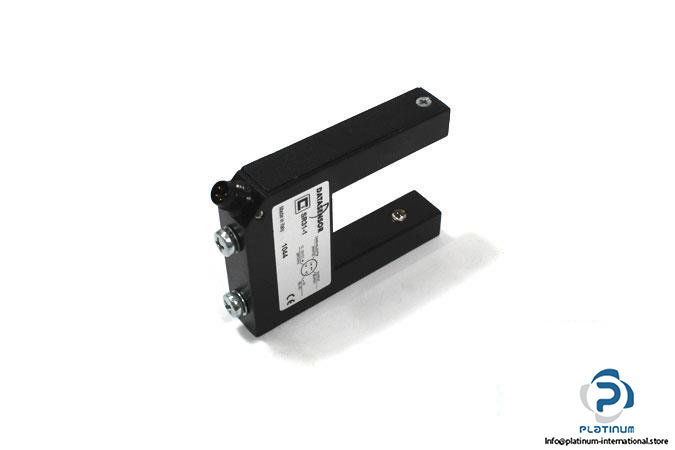

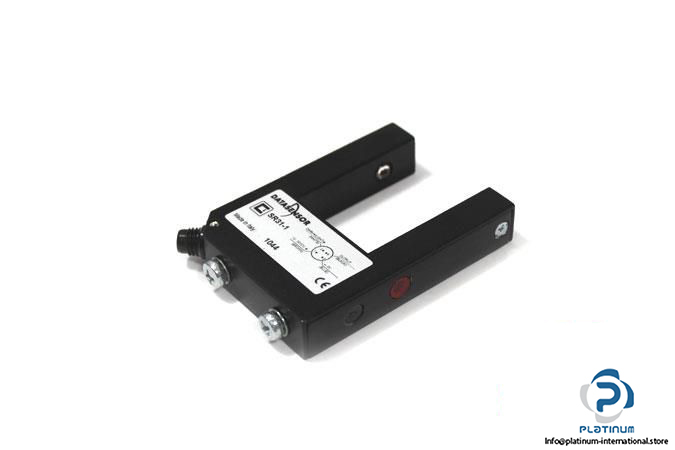

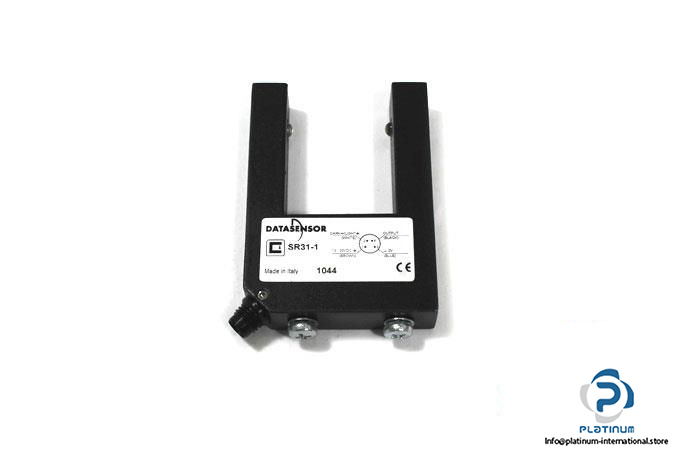

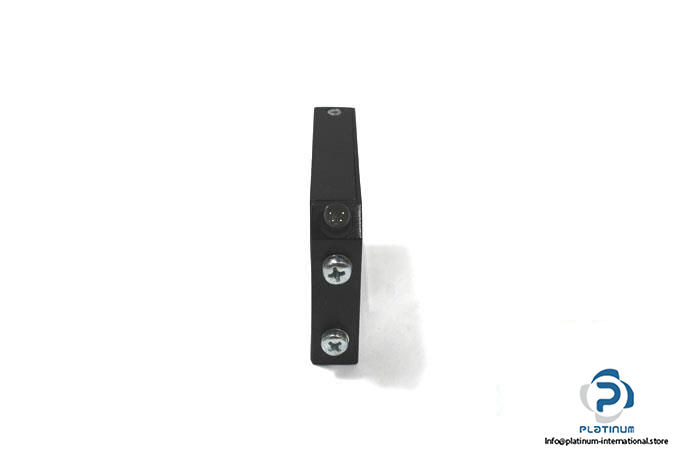

Datasensor SR31-1 Photoelectric Fork Sensor
New
In stock21 unitsReady to ship
110,00$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: DATASENSOR DATALOGIC
Type: PHOTOELECTRIC FORK SENSOR
Model: SR31-1
Slot width: 30 mm
Material width: 25 mm max.
Material width: 2 mm min.
Response time: 50 µs
Switching frequency: 10 kHz
Operating Voltage: 10 … 30 V DC
Ripple: 2Vpp
Load current max.: 200 mA
Electrical design: PNP
Switching output: Light /Dark switching
Type of light: Infrared LED 880nm
Adjustment: multi-turn sensitivity trimmer

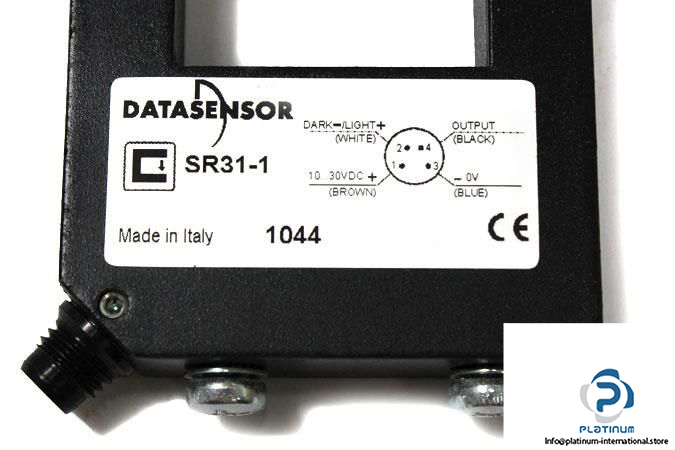

Connector type: M8 Connector, 4-pin
Enclosure rating: IP60
Ambient Operating temperature: -10 … 60°C
Dimensions: 70 x 50 x 13.5 mm
Weight: Approx. 100 g
Housing: Rectangular
Housing material: ZAMA
Lens material: Glass
Condition: New
