Dehn DV TNC 255 Current AND Surge Arrester

In stock1 unitReady to ship

Surge Protection Device

DEHNventil DV TNC 255 coordinated surge protection device (SPD) Class 1 with spark gap technology, 255 VAC rating, and impulse current up to 75 kA for TNC systems.

Manufacturer
DEHN
SKU
1095814
Category
Others
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

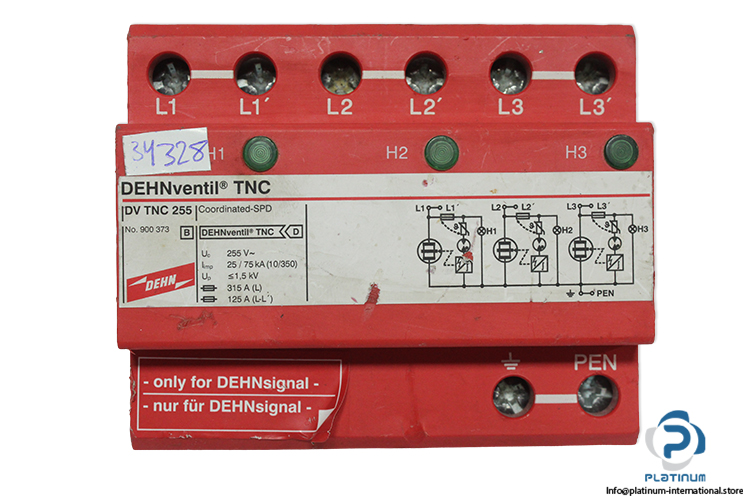

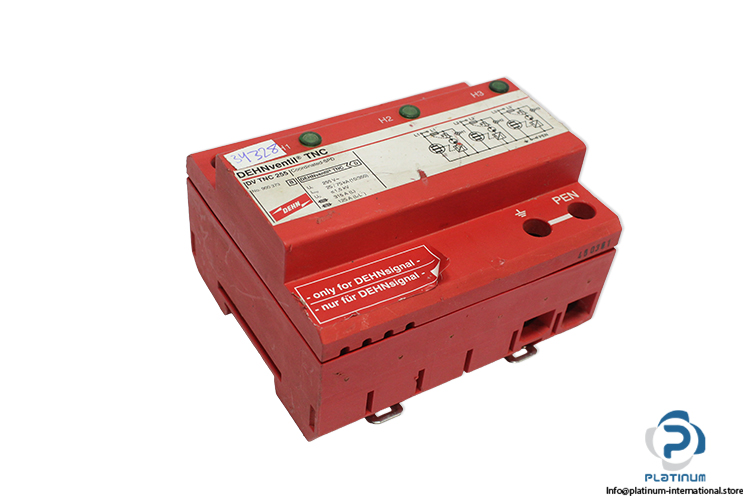

DEHN DEHNventil DV TNC 255 Surge Arrester

The DEHNventil DV TNC 255 is a coordinated current and surge arrester designed to protect electrical installations against transient overvoltages and direct lightning currents. This spark gap based combined arrester (Type 1 + Type 2) ensures reliable surge protection performance in TNC systems.

Manufacturer: DEHN

Series: DEHNventil

Type: Current And Surge Arrester

Model: DV TNC 255

Part No.: 900 373

SystemTNC
Voltage Rating255 VAC
Impulse Current25 / 75 kA
Protection Level1.5 kV
Max Mains-Side Overcurrent Protection315 A (L) Or 125 A (L-L')
TechnologySpark Gap Based Combined Arrester (Type 1 + Type 2)
Operating Temperature Range-40 °C ... +80 °C
Enclosure MaterialThermoplastic, Red, UL 94 V-0
Place Of InstallationIndoor Installation
Degree Of ProtectionIP 20
ApplicationProvides protection for electrical installations against surges and direct lightning strikes.
