Deif AGC 242+IOM 230 Automatic Genset Controller
Used
In stock1 unitReady to ship
Automatic Genset Controller
DEIF AGC 242+IOM 230 automatic genset controller with advanced monitoring, protection, and communication capabilities for generator systems up to 150 kVA.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

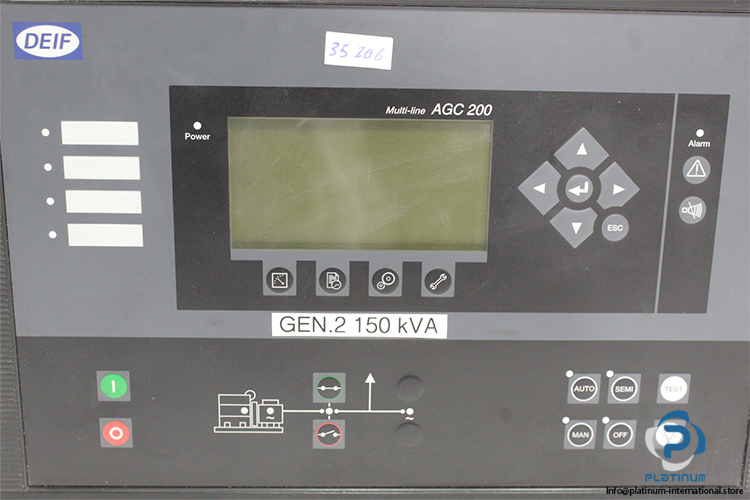

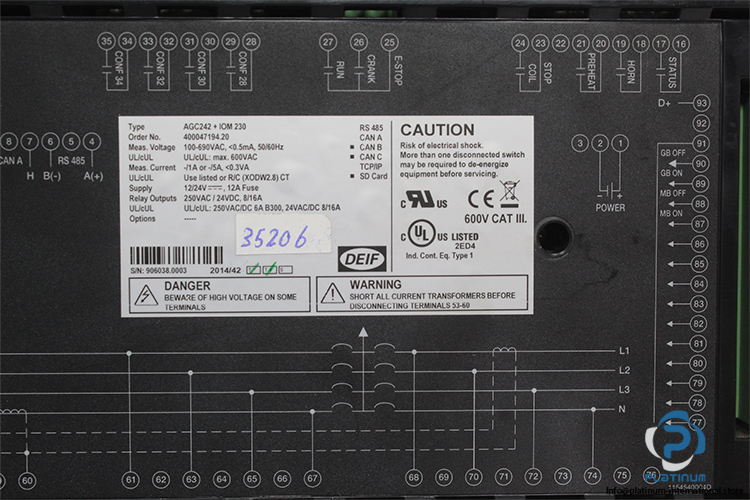

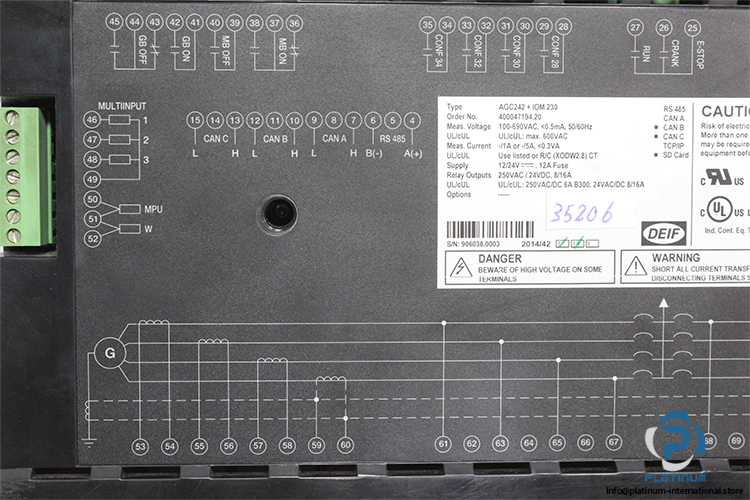

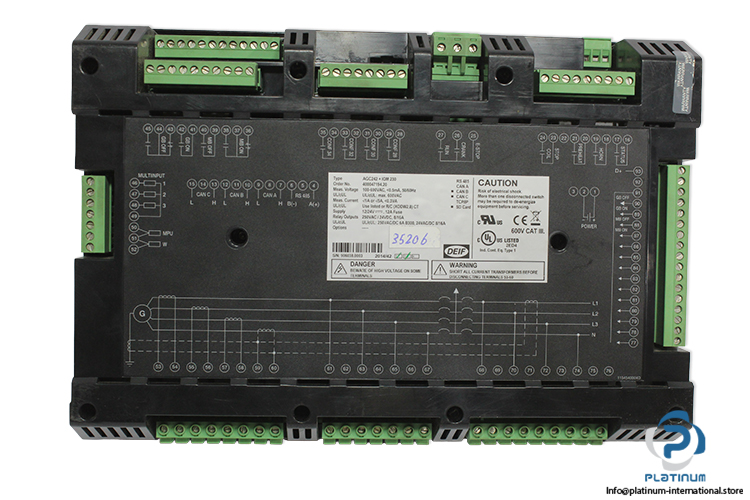

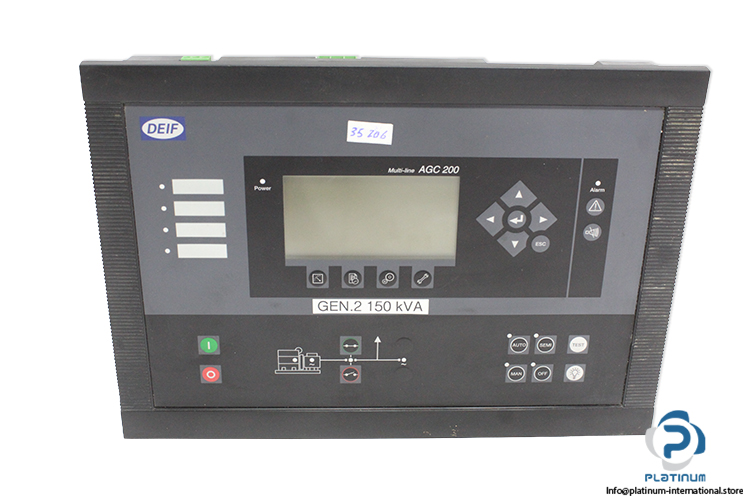

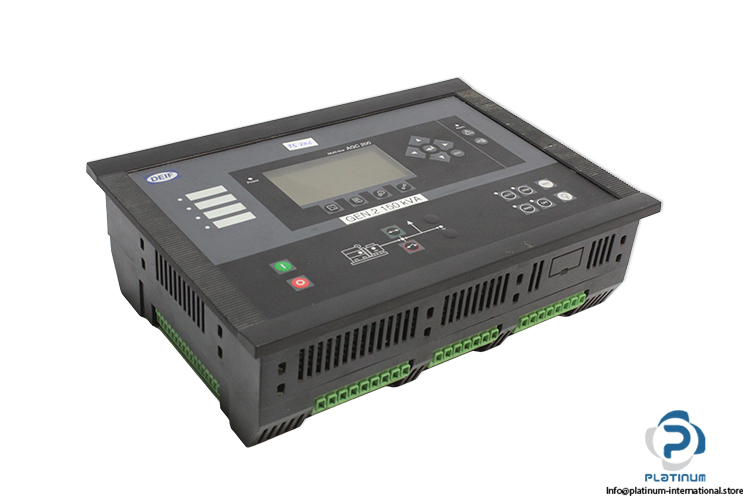

DEIF AGC 242+IOM 230 Automatic Genset Controller
The DEIF AGC 242+IOM 230 is an advanced automatic genset controller from the Multi-line AGC 200 series, designed for generator control, protection, and monitoring in demanding power generation applications. It provides precise measurements, extensive input/output options, and multiple communication interfaces for reliable genset operation and system integration.
Manufacturer: DEIF
Type: Automatic Genset Controller

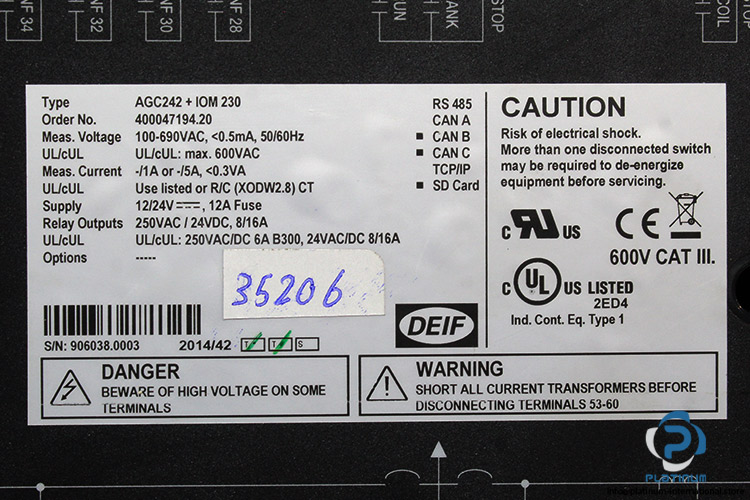

Model: AGC 242+IOM 230
Order No.: 400047194.20
Serial No.: 906038.0003
Multi-Functional Inputs
Relay Outputs
Additional Specifications
| Series | Multi-line AGC 200 |
| Range | GEN.2 150 kVA |
| Display | 240 x 128 pixel backlight STN |
| Measuring Voltage | 100 / 690 V AC |
| Measuring Current | 1 / 5 A |
| Supply Voltage | 12 / 24 V DC |
| Current | 12 A |
| Power Consumption | 0.3 VA |
| Current Input | 0(4) “ 20 mA |
| Binary Input | Dry contact inputs, 3 V DC internal supply, cable supervision, max. resistance for ON detection 100 ohm |
| Pt100 | -40 / 250 °C |
| VDO | 0 “ 2500 ohm |
| Passive Binary Input Voltage | ON 8 / 36 V DC / OFF 2 V / Impedance 4.7 kohm |
| Emergency Stop Input Voltage | ON 8 / 36 V DC / OFF 2 V / Impedance 4.7 kohm |
| Relays 16“20 and 28“43 | 250 V AC / 30 V DC, 8 A |
| UL/cUL Listed | 250 V AC / 30 V DC, 6 A, General use, B300 pilot duty |
| Relay 23 | 36 V DC, 8 A |
| UL/cUL Listed | 24 V DC, 8 A, General use |
| Relays 26 and 27 | 36 V DC, 16 A |
| UL/cUL Listed | 24 V DC, 16 A, General use |
| Interfaces | RS 485, CAN A, CAN B, CAN C, TCP/IP, SD Card |
| Mounting | Panel mounted |
| Operating Temperature | -25 / 70 °C |
| Protection Class | IP52 / IP66 |
| Dimensions | 219 x 312 x 87 mm |
