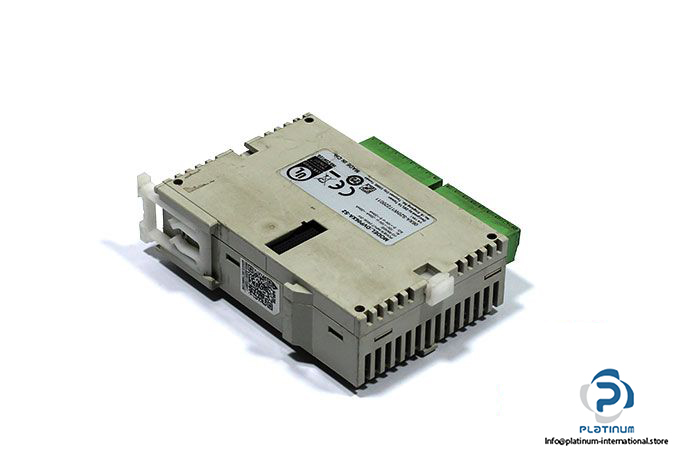

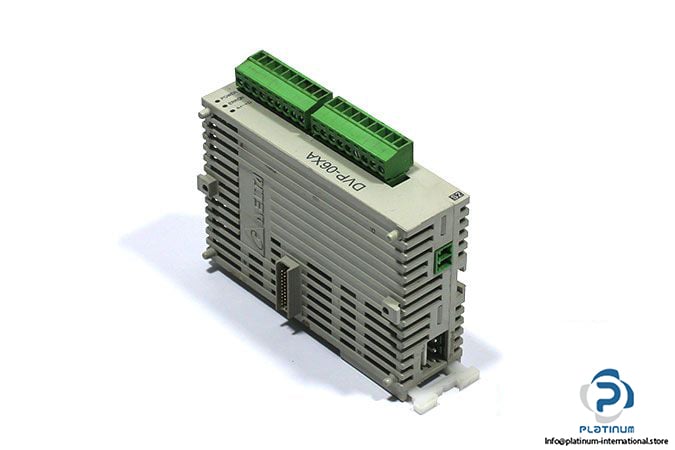

Delta DVP06XA-S2 Analog I/O Module

Manufacturer: Delta

Type: Analog I/O Module

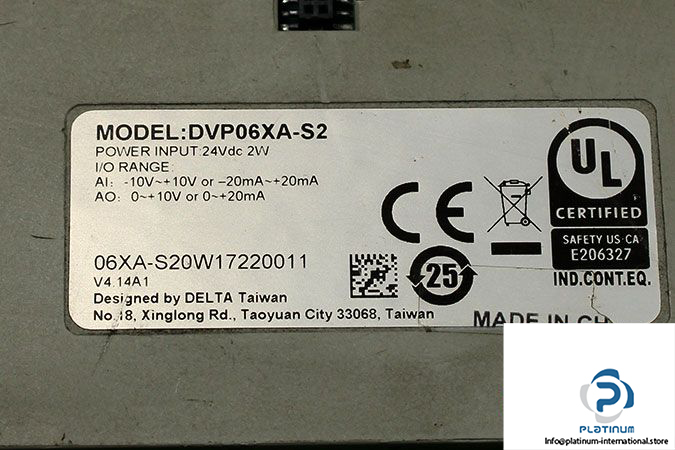

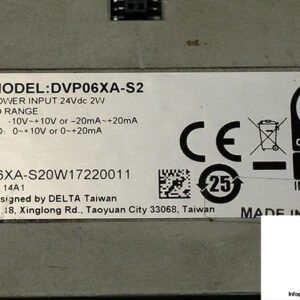

Model: DVP06XA-S2

MRN: 06XA-S20W17220011

Input Voltage: 24 VDC

Input Power: 2 W

Analog Input Voltage Range: ±10 V

Analog Input Current Range: ±20 mA

Analog Input Channel: 4 Channels/Module

Analog Input + Output Module: 6 Point

Analog Input Voltage (-10V~+10V)/ Current (-20 mA~+20 mA): 4 Point

Analog Output Voltage (0V~+10V)/ Current (0 mA~+20 mA): 4 Point

Input / Output Resolution: 12-bit

Response Time: 3 ms × Number of channels

Digital Data Format: 16-Bit Two’s Complement

Dimensions: 90 x 60 x 25 mm

Weight: 0.10 kg
