Delta Electronics 392185-001 Axial FAN
Used
In stock1 unitReady to ship
AXIAL FAN
Compact 92x92x25 mm axial fan with 7 blades, 12 V DC input, and a high airflow output of 106.2 m³/h. Designed for efficient cooling and reliable thermal control in electronics and automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

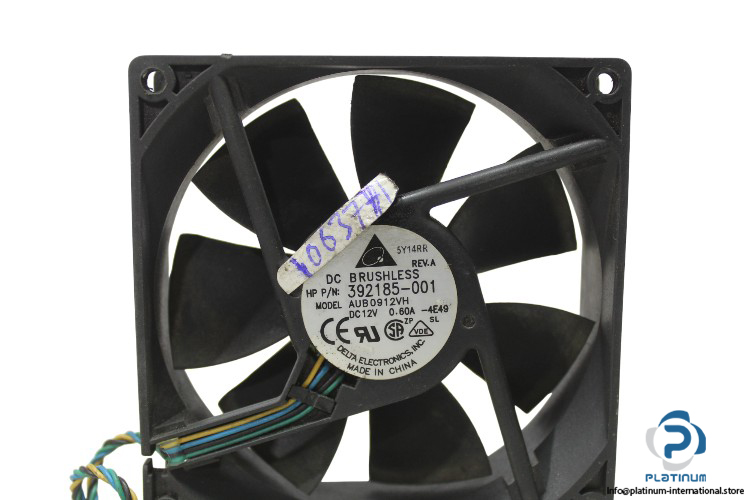

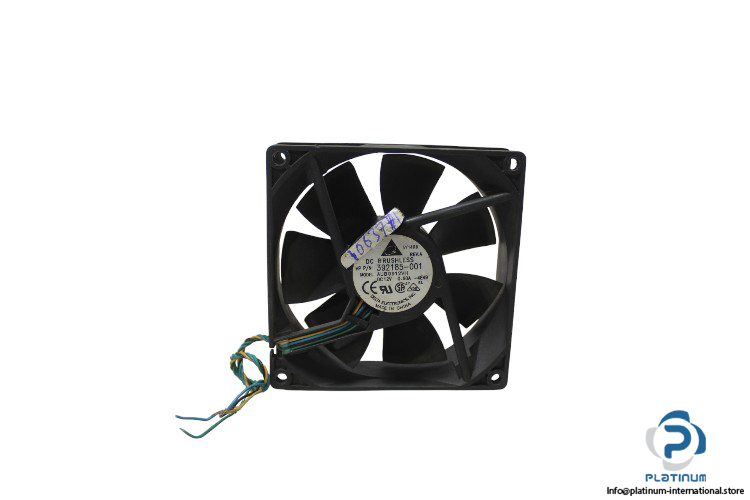

DELTA ELECTRONICS AUB0912VH AXIAL FAN
High-performance axial fan with 7 blades, ideal for compact cooling applications. Designed in a square frame with a strong plastic body, it delivers efficient airflow and stable operation at 12 V DC for demanding thermal management environments.
Manufacturer: Delta Electronics
Type: Axial Fan
Model: 392185-001
Code: 4E49 / 5Y14RR
Part No.: AUB0912VH
| Frame Shape | Square Frame |
| No. of Blades | 7 |

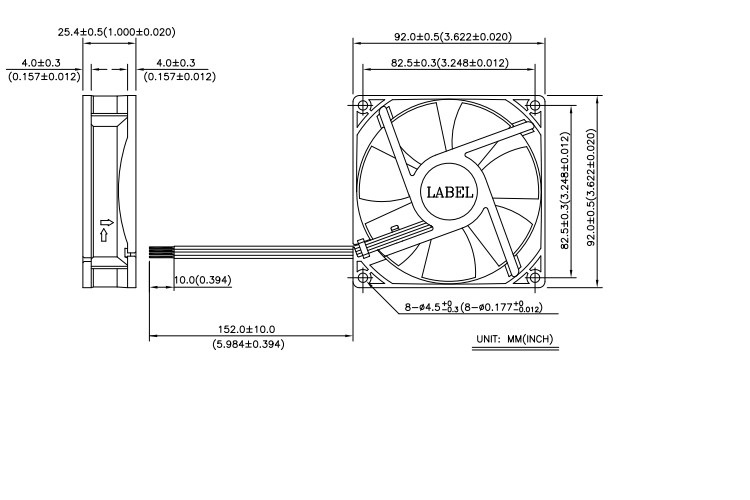

| Dimensions (mm) | 92x92x25 |
| Direction | Push |
| Voltages (V DC) | 12 |
| Power (W) | 7.20 |
| Flow Rate (m³/h) | 106.2 |
| Flow Rate (CFM) | 62.51 |
| Speed | 3800 rpm |
| Current (A) | 0.6 |
| Max. Pressure | 6.49 mmH‚‚O |
| Inverter | Without Inverter |
| Number of Wires | 4 |
| Blade Material / Fan Housing Material | Plastic / Plastic |
| Rev. | A |
