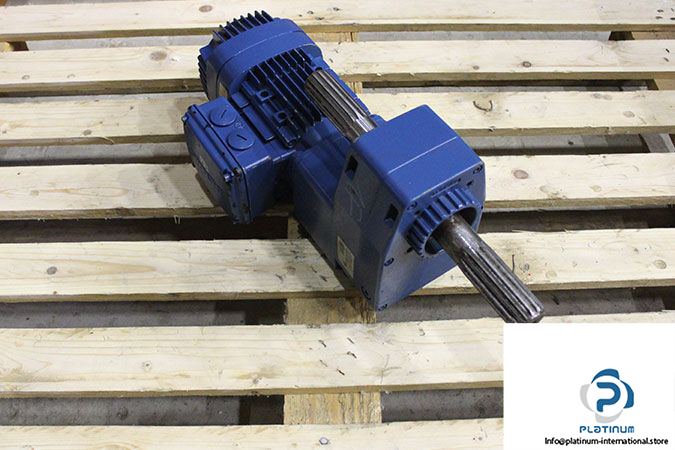

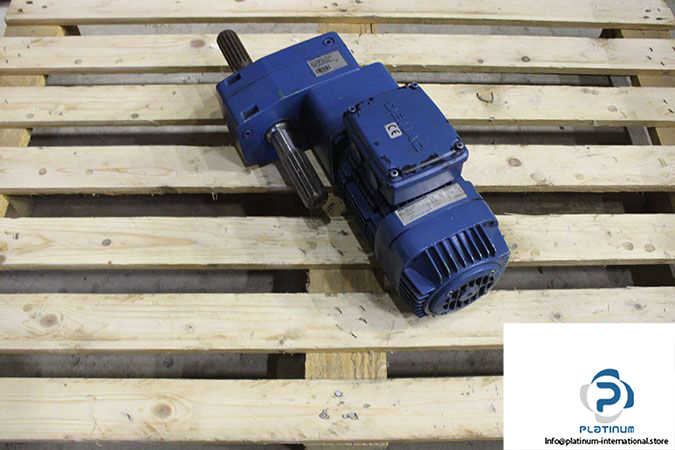

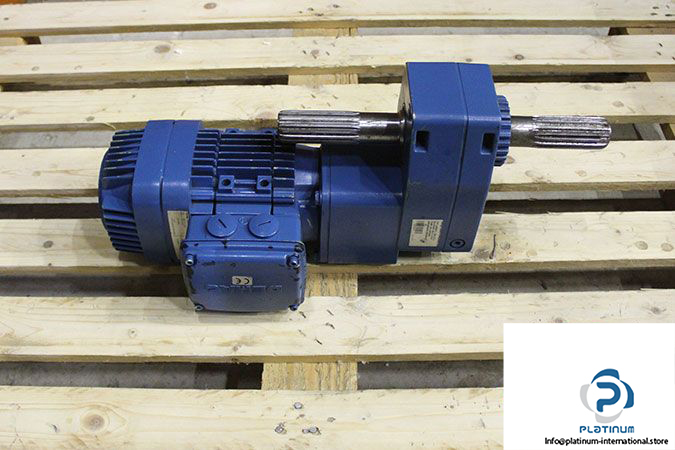

Demag KBV 71 A 8/2 3 Parallel Gear Motor
Manufacturer: Demag Cranes / Components
Type: Parallel Gear Motor

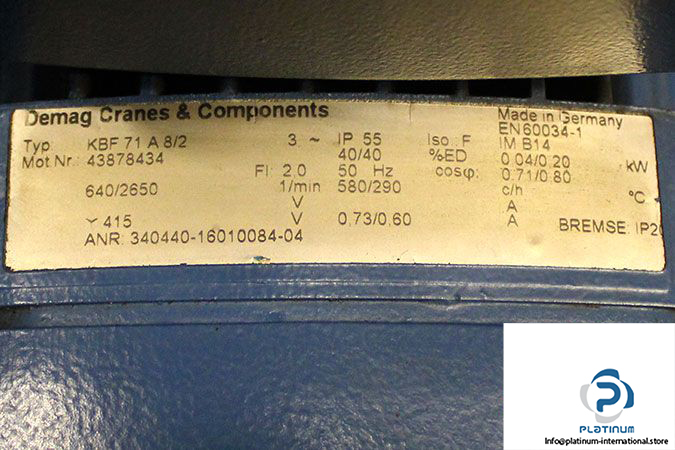

Model: KBV71A8/2
Motor No.: 43878434
Rated Power [kW]: 0.04/0.20
Rated Speed [rpm]: 580/290
Frequency [Hz]: 50
Motor Voltage [V] / Conn. Type: 415/Star
Rated Current [A]: 0.73/0.60
Power Factor: 0.71/0.80
Protection Class [IP]: 55
Brake Torque [lb-ft]: 1.20
Gear Type: Parallel Gear Reducer

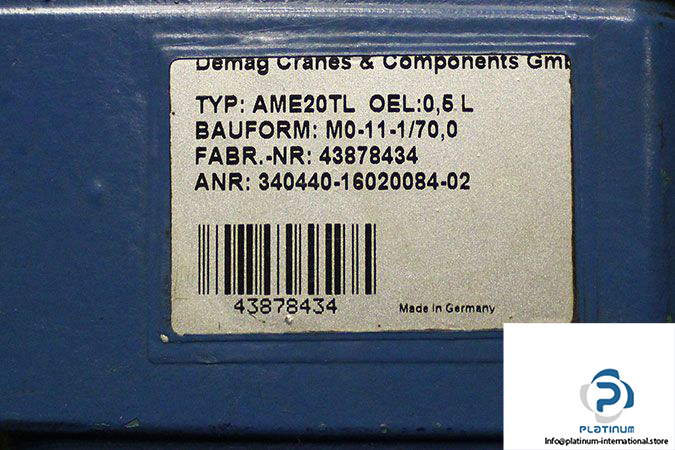

Gear Model: AME20TL
ANR No.: 340440-16010084-02
Gearbox Size: AME 20
Oil Quantity [L]: 0.5
Design: M0-11-1/70.0
Shaft Diameter [mm]: 34
Ambient Temperature [°C]: 40
Mounting Position: B14
Insulation Class: F
Weight [kg]: 19.0
