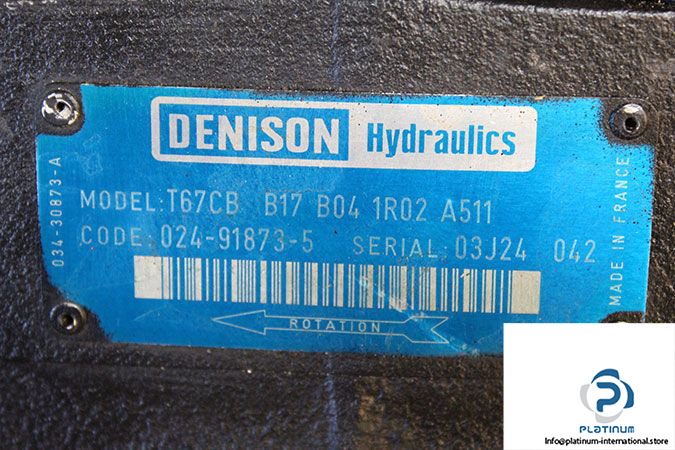

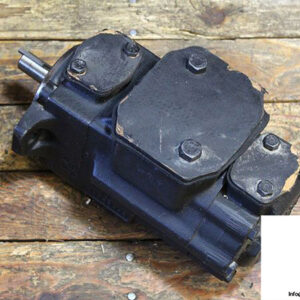

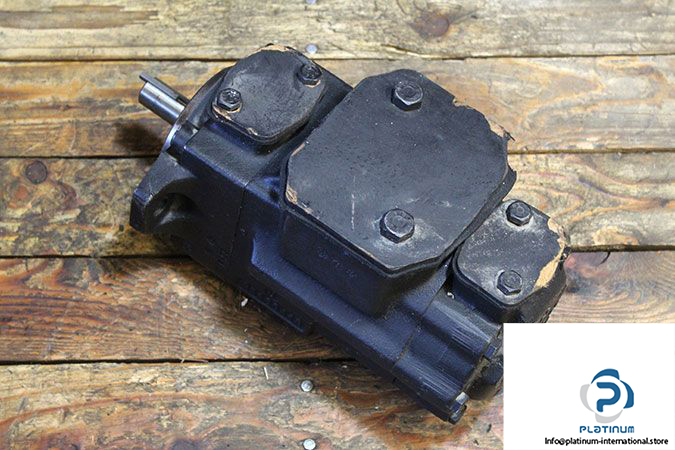

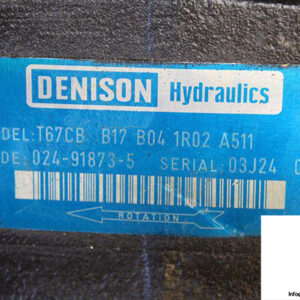

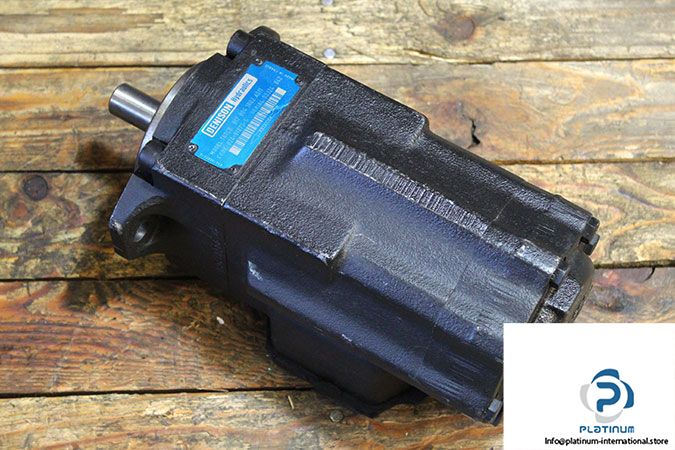

Denison T67CB B17 B04 1R02 A511 Fixed Displacement Vane Pump
Vane Pump
High-performance Denison fixed displacement vane pump with dual sections (B17 and B04), delivering strong flow output, stable rotation, and reliable operation for demanding hydraulic applications.Denison T67CBB17B041R02A511 Fixed Displacement Vane Pump
The Denison T67CBB17B041R02A511 is a high-performance fixed displacement vane pump engineered for demanding hydraulic applications. Designed with dual pump sections, it delivers strong, consistent flow and exceptional reliability, making it ideal for heavy-duty industrial machinery and high-pressure hydraulic systems.
Manufacturer: Denison
Type: Fixed Displacement Vane Pump
Model: T67CBB17B041R02A511
PUMP 1
Size: B17
Displacement: 58.3 cm3
Discharge Flow:
Flow Rate at 1500 rpm & 140 bar: 82.4 l/m
Power Consumption:
Flow Rate at 1500 rpm & 140 bar: 21.9 KW
PUMP 2
Size: B04
Displacement: 21.8 cm3
Discharge Flow:
Flow Rate at 1500 rpm & 140 bar: 17.5 l/m
Power Consumption:
Flow Rate at 1500 rpm & 140 bar: 5 KW
Recommendation
This Denison dual-section vane pump is strongly recommended for customers looking to upgrade system efficiency, reduce heat generation, and increase hydraulic reliability. Its high flow output and low noise characteristics make it ideal for presses, injection molding machines, material handling equipment, and industrial hydraulic power units. Choosing this model ensures long service life, stable performance under continuous load, and reduced operating costs.
| Direction of Rotation | Clockwise |

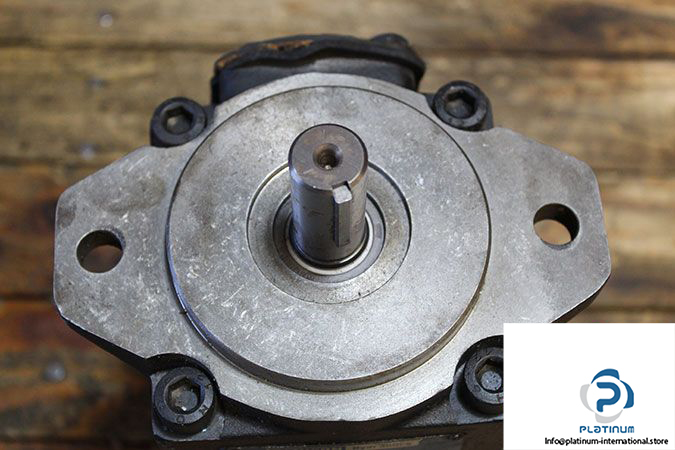

| Shaft Diameter | 22 mm |
| Speed Range | 600 / 2600 rpm |
