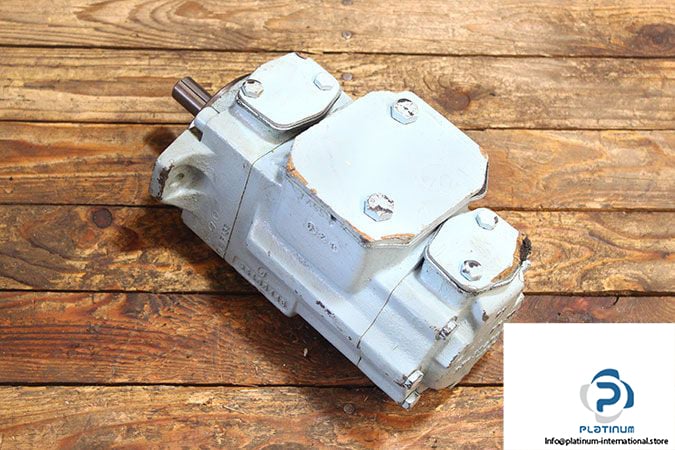

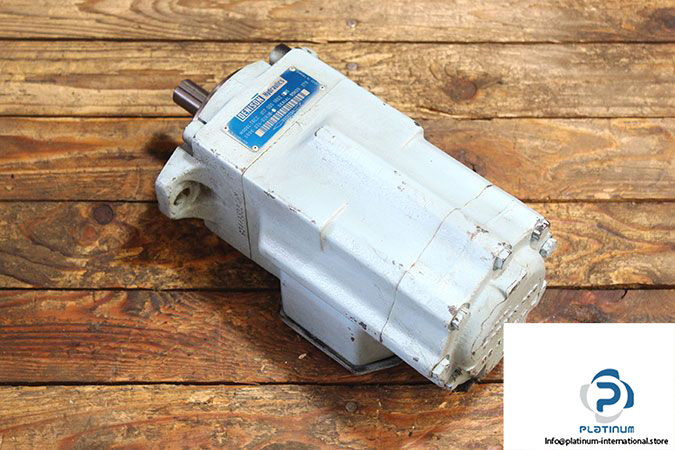

Denison T6CC 017 005 1R02 C511 Fixed Displacement Vane Pump
Manufacturer: Denison
Type: Fixed Displacement Vane Pump

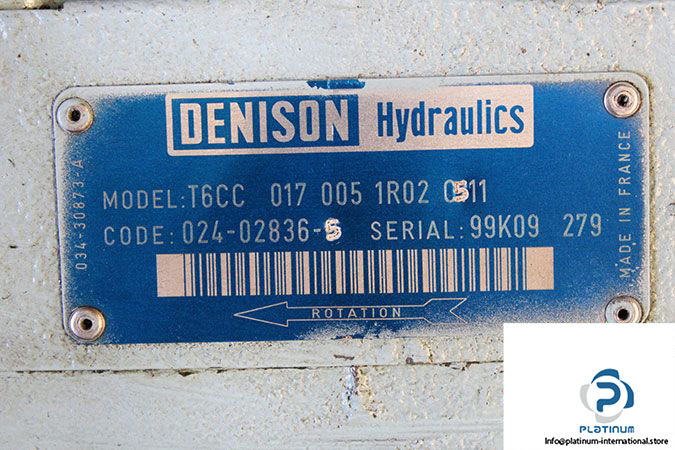

Model: T6CC0170051R02C511
PUMP 1
Size: 017
Displacement: 58.3 cm3
Discharge flow:
Flow Rate at 1500 rpm & 140 bar: 82.4 l/m
Power Consumption:
Flow Rate at 1500 rpm & 140 bar: 21.9 KW
PUMP 2
Size: 005
Displacement: 17.2 cm3
Discharge flow:
Flow Rate at 1500 rpm & 140 bar: 20.8 l/m
Power Consumption:
Flow Rate at 1500 rpm & 140 bar: 7.5 KW
Direction of rotation: Clockwise

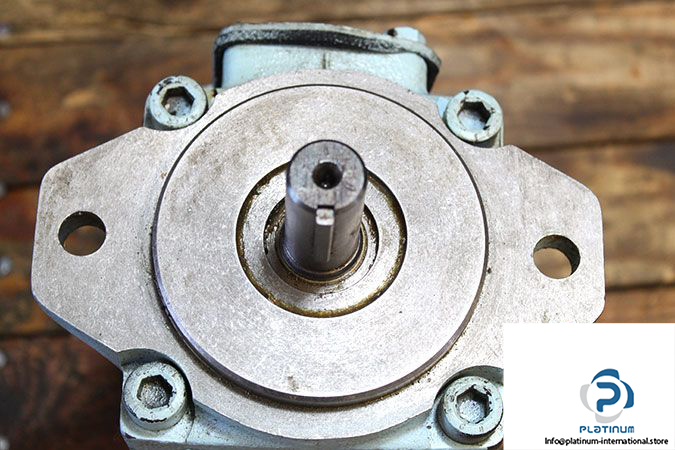

Shaft Diameter: 22 mm
Speed Range: 600 … 2600 rpm
weight: 26.3 Kg
