Deublin 1005-020-045 Union
Used
In stock1 unitReady to ship
89,99$
UNION
DEUBLIN 1005-020-045 union for vacuum, hydraulic oil, and air media with M10x1 RH rotor connection, 1/8³-27 NPT housing, and operating up to 69 bar and 121 °C.1/8³-271005-020-045121°C69AirbarconnectionDeublinFluidHighHydraulicJointM10X1NPToilPressureRHRotaryTransferUnionvacuum
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

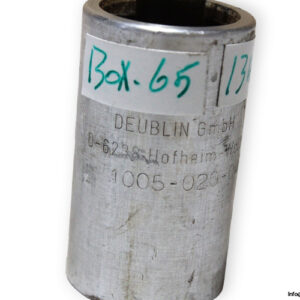

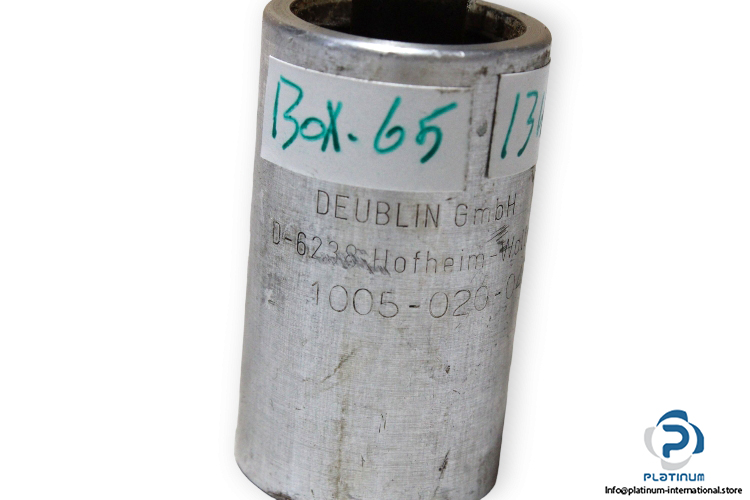

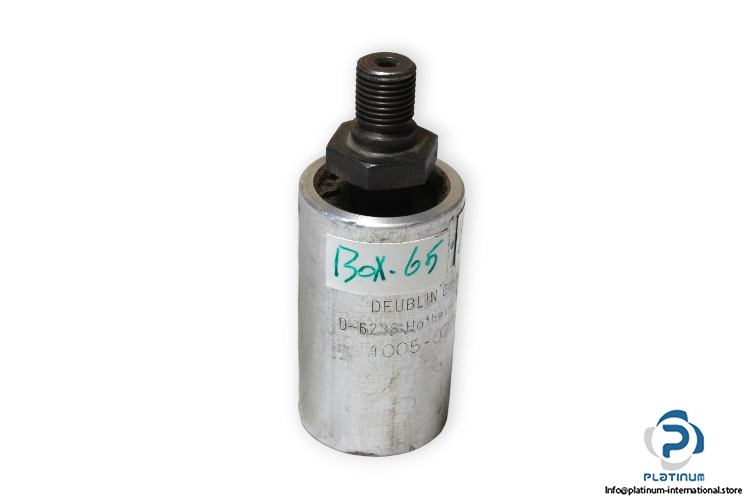

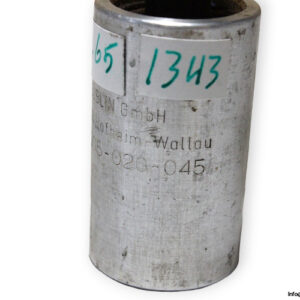

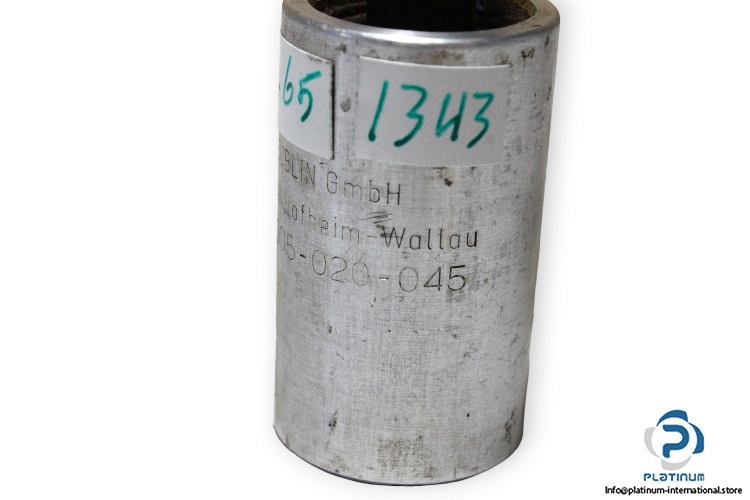

DEUBLIN 1005-020-045 Union
The DEUBLIN 1005-020-045 Union is a high-quality rotary union designed for reliable performance with vacuum, hydraulic oil, and air media. Engineered to handle high pressure and temperature conditions, it ensures efficient fluid transfer in demanding industrial applications.
Manufacturer: DEUBLIN
Type: Union
Model: 1005-020-045
| Media | Vacuum, Hydraulic Oil, Air |
| Rotor Connection | M10x1 RH, 11 mm pilot |
| Housing Connection | 1/8³-27 NPT |
| Air Max. Flow | 283 l/min |
| Air Max. Pressure | 10 bar |
| Air Max. Temperature | 121 °C |
| Hydraulic Oil Max. Flow | 6.7 l/min |
| Hydraulic Oil Max. Pressure | 69 bar |
| Hydraulic Oil Max. Temperature | 121 °C |
| Vacuum Max. Pressure | -0.95 bar |
