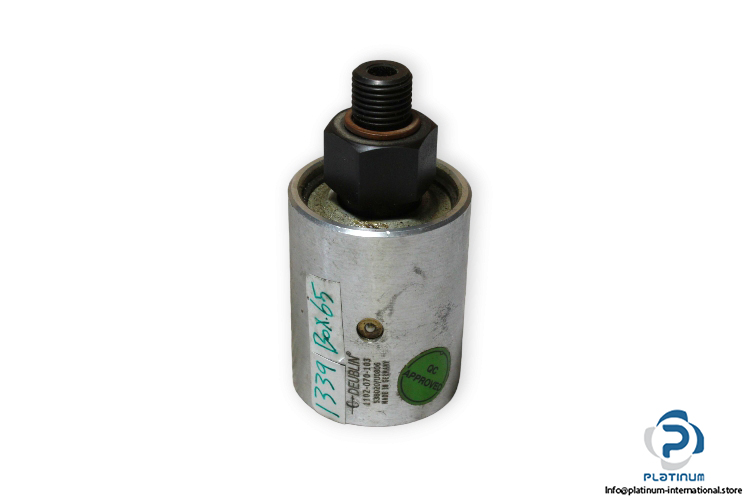

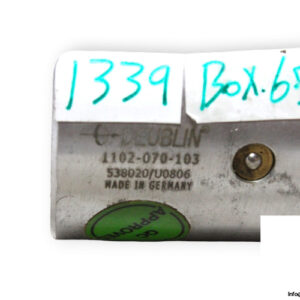

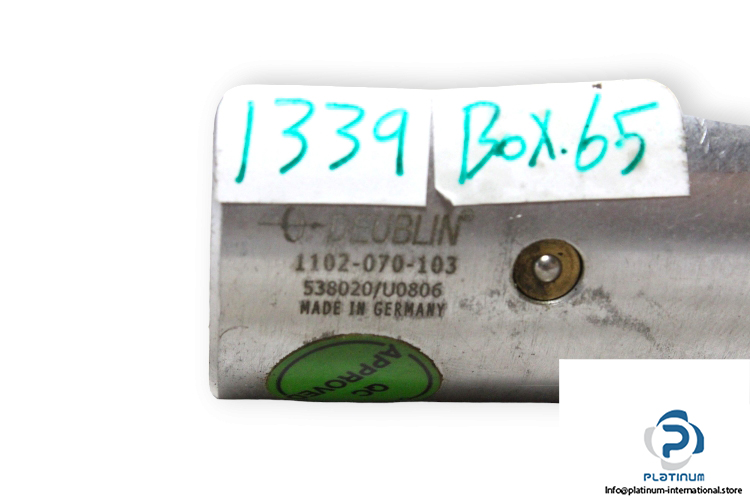

Deublin 1102-070-103 Rotating Union

Manufacturer: Deublin
Type: Rotating Union
Model: 1102-070-103
MRN: 538020/U0806

Air Max. Pressure: 10 bar
Hydraulic Oil Max. Pressure: 69 bar
Vacuum Max. Pressure: -0.95 bar
Air Max. Flow: 1132 l/min
Hydraulic Oil Max. Flow: 15 l/min
Media: Vacuum, Hydraulic Oil, Air
Rotor Connection:  G ¼”-19 RH
Housing Connection: ¼”-18 NPT
Body Materials: Aluminum
Maximum Temperature: 121 °C
