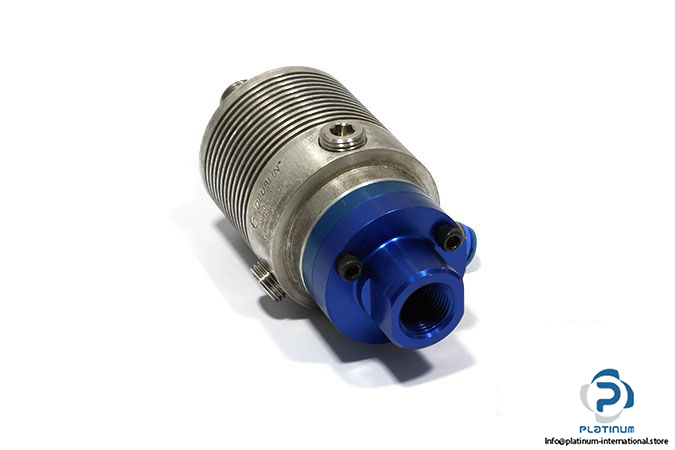

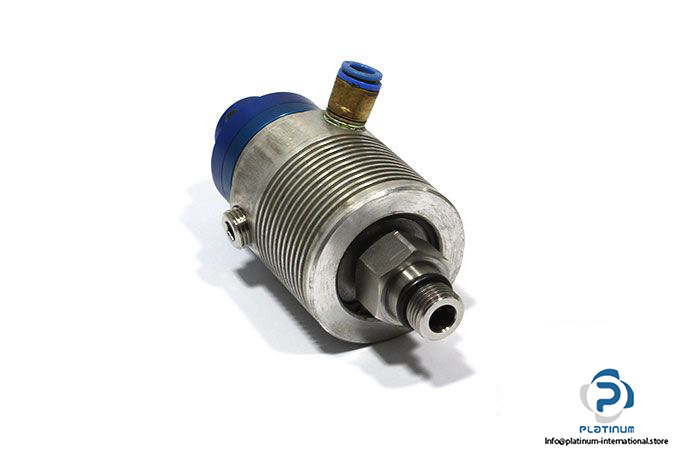

Deublin 1109-041-188 Union
99,99$
ROTARY UNION
Deublin 1109-041-188 rotary union with Pop-Off„¢ technology, full-flow design, 103.4 bar coolant pressure, IP54 protection, and axial housing connection for reliable MQL and coolant transfer.Deublin 1109-041-188 Union
The Deublin 1109-041-188 is a high-performance rotary union designed for coolant or MQL applications. Built with Pop-Off„¢ technology and a full-flow design, it offers maintenance-free operation, long service life, and reliable performance even under challenging industrial conditions.
Manufacturer: Deublin
Type: Union

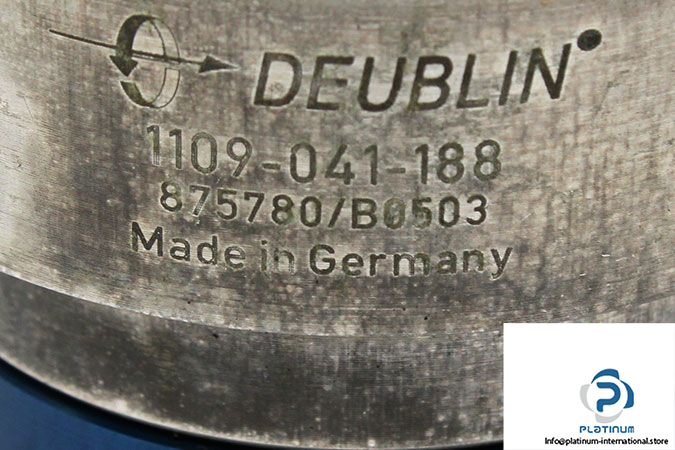

Model: 1109-041-188
MRN: 875780/B0503
Features:
Single Passage for Coolant or MQL
Pop-Off„¢ Technology Allows Unlimited Dry Running Without Media Pressure
Full-Flow Design Has No Obstructions to Trap Swarf or Debris
Bearing-Supported with Threaded Rotor for Easy Installation
Dual Angular Contact Ball Bearings
Labyrinth System and Large Vents to Protect Ball Bearings
Balanced Mechanical Seals Made from Silicon Carbide for Long Life
Anodized Aluminum Housing Resists Corrosion
| Media | MQL, Coolant |
| Coolant Max. Flow | 81.8 l/min |
| MQL Max. Flow | 2040 l/min |
| Coolant Max. Pressure | 103.4 bar |
| MQL Max. Pressure | 10 bar |
| Rotor Connection | M16x1.5 LH, 17.993 mm pilot |
| Housing Connection | 3/8-19 PT |
| Max. Temperature | 71 °C |
| Degree of Protection | IP54 |
| Housing Connection Type | Axial |
