Deublin 1115-000-001 Rotary Union
Used
In stock1 unitReady to ship
99,99$
ROTARY UNION
DEUBLIN 1115-000-001 rotary union for vacuum, hydraulic oil, and air applications with 3/8³-18 NPT housing and 5/8³-18 UNF RH rotor connection, pressure up to 34.5 bar.1115-000-0013/834.55.8barconnectioncouplingDeublinFluidHydraulicIndustrialJointNPTPneumaticRotaryRotorTransferUNFUnionvacuum
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

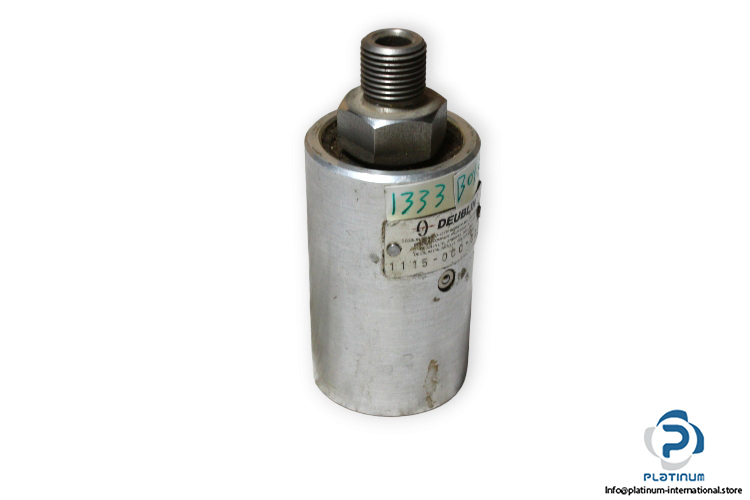

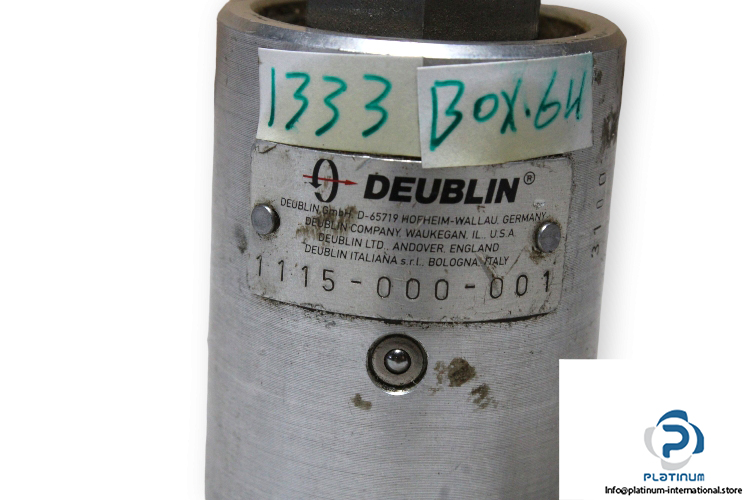

DEUBLIN 1115-000-001 Rotary Union
The DEUBLIN 1115-000-001 rotary union is a high-quality component engineered for transferring media such as vacuum, hydraulic oil, and air between stationary and rotating parts. It offers durable performance, reliable sealing, and compatibility with various pressure conditions in industrial systems.
Manufacturer: DEUBLIN
Type: Rotary Union
Model: 1115-000-001
| Media | Vacuum, Hydraulic Oil, Air |
| Housing Connection | 3/8³-18 NPT |
| Rotor Connection | 5/8³-18 UNF RH |
| Air Max. Pressure | 10 bar |
| Air Max. Flow | 2549 l/min |
| Hydraulic Oil Max. Flow | 12.5 l/min |
| Hydraulic Oil Max. Pressure | 34.5 bar |
| Vacuum Max. Pressure | -0.95 bar |
