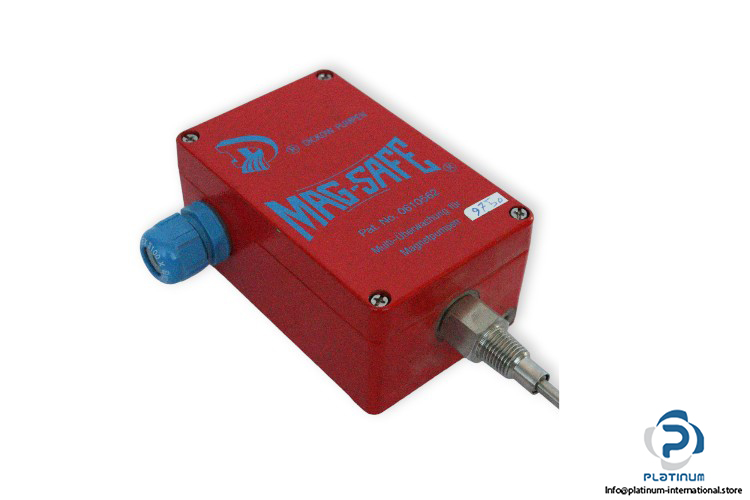

Dickow Pumpen MAG-Safe V Pump Monitor

Manufacturer: DICKOW PUMPEN KG
Type: Pump Monitor for Magnetic Pumps
Model: Mag-safe V
Part No.: 0610562
Work No.: 151133

Function: The MAG-SAFE is developed and designed for monitoring
DICKOW sealless pumps and preventing serious pump failures, MAG
SAFE reads the temperature in the center of the magnets between
shell and magnets direct at the heat source. Temperature changes in
the thermocouple generate voltage changes
Operating Voltage: 15 … 28 V DC
Thermoelectric Voltage: (28 nV/K /NiNiCr Element)
Max. Current Rating: 93 mA
Max. Power: 660 mW
Output Clamp 3 & 4: 4 … 20 mA
Maximum trip temperature: 250°C
Operating Temperature: -40 … 70°C
Enclosure Rating: IP54
Protection: Explosion proof
